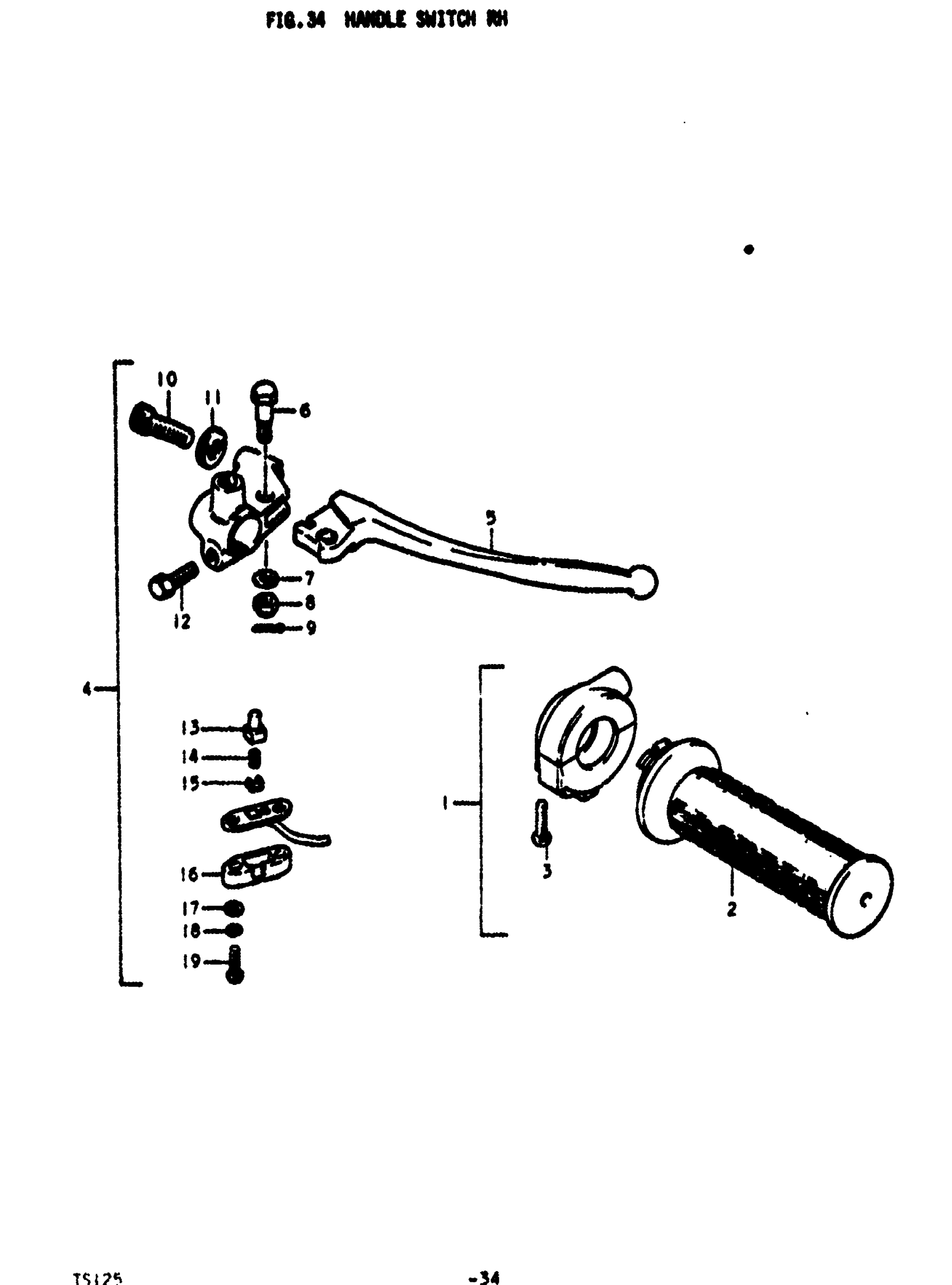

Suzuki TS125 (1972) HANDLE SWITCH RH Diagram

#

Description
Price

1

GRIP ASSY, THROTTIE | Includes Item(s) 2 - 3

57100-28010

Unavailable

2

GRIP, THROTTIE

57110-28010

$34.76

3

SCREW This part replaces 02111-05207.

02112-05207

$1.97

4

LEVER ASSY, BRAKE | TO 57300-30701 USED WITH 56741-31700; Includes Item(s) 5 - 19 This part replaces 57300-30700.

57300-30501

Unavailable

5

LEVER, BRAKE | FROM 57420-18601 This part replaces 57420-33010.

57420-18602

Unavailable

6

BOLT This part replaces 57431-11010.

57431-11013

$6.31

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

NUT, LEVER

57433-11010

$5.64

9

PIN This part replaces 04111-16158.

04111-1620A

$1.49

10

ADJUSTER, CABLE

57441-11010

$5.62

11

NUT, ADJUSTER

57442-11010

$2.79

12

BOLT | FROM 57451-11010 This part replaces 01112-06208.

01500-06207

$2.28

13

HOLDER This part replaces 57461-18600.

57465-18601

$4.34

14

HOLDER This part replaces 57462-18600.

57465-18601

$4.34

15

HOLDER This part replaces 57463-18600.

57465-18601

$4.34

16

COVER

57481-33010

$5.84

17

WASHER This part replaces 08322-21038.

08322-01037

$1.93

18

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

19

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23
