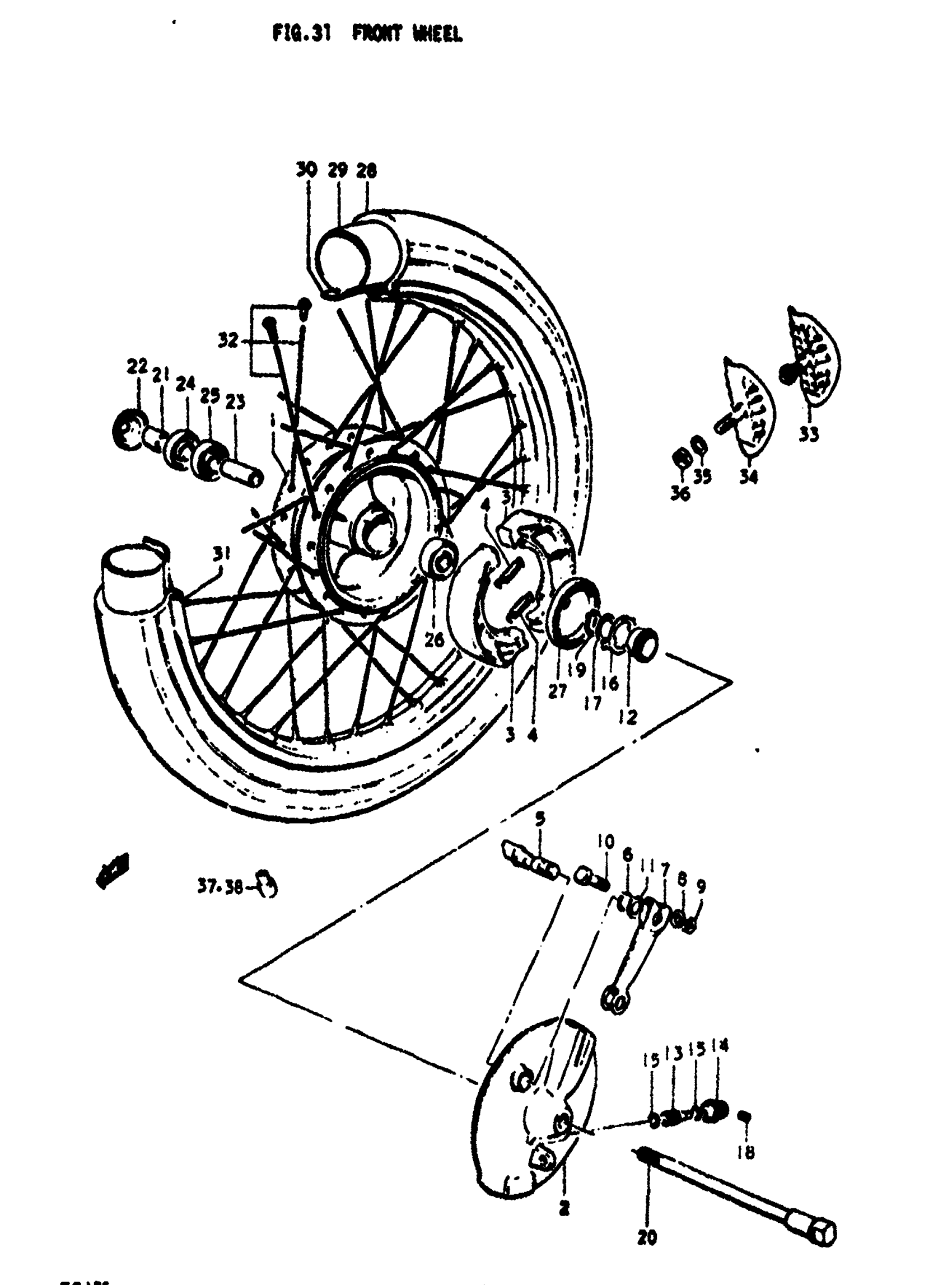

Suzuki TS125 (1972) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 54110-28001.

54110-28003

Unavailable

2

PANEL, FRONT BRAKE | TO 54210-28002

54210-28001

Unavailable

3

SHOE/SPRING SET | R; TO 54410-01005 This part replaces 54410-01004.

54400-35860

$36.32

3

SHOE/SPRING SET | J This part replaces 54410-01005.

54400-35860

$36.32

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

CAM, FRONT BRAKE

54441-28001

Unavailable

6

DUST SEAL, BRAKE CAM

09280-12001

$2.90

7

LEVER, BRAKE CAM

54451-03602

Unavailable

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

.NUT This part replaces 08311-11068.

08310-00067

$2.13

10

BOLT, ADJUSTER This part replaces 09100-06050.

09100-06150

$2.30

11

WASHER, DUST SEAL

09160-12011

$1.54

12

NO DESCRIPTION AVAILABLE This part replaces 54611-28000.

54611-28002

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 54621-28000.

54621-28001

Unavailable

14

BUSH, PINION OUT

54632-01001

$12.80

15

WASHER,5.1X9X0. This part replaces 09160-05001.

09160-05001-A05

$1.87

16

DRIVER, SPEEDOMETER GEAR

54661-07000

$4.52

17

THRUST WASHER

09160-18002

$2.38

18

SCREW,3X4.3 This part replaces 09134-03101.

09134-03101-A05

$1.78

19

CIRCLIP

08331-11189

Unavailable

20

AXLE, FRONT

54711-28000

Unavailable

21

SPACER, FRONT AXLE RH

09180-12040

$8.35

22

COVER, DUST SEAL

54892-28000

Unavailable

23

SPACER (12.5X19X52) This part replaces 09180-12041.

09180-12144

$10.30

24

SEAL,OIL (18X32X7) This part replaces 09284-18002.

09285-18002

$5.39

25

BEARING This part replaces 08113-62010.

08113-6201B

$10.15

26

BEARING This part replaces 08143-62010.

08143-6201B

$10.80

27

OIL SEAL This part replaces 09285-43001.

09283-43004

$14.03

28

TIRE | 2.75-19 SEMI-KNOBBY

55100-25600

Unavailable

29

TUBE, INNER | 2.75-19 This part replaces 55200-28030.

55200-29010

Unavailable

30

PROTECTOR, INNER TUBE

55261-28030

Unavailable

31

RIM, FRONT WHEEL

55311-29600

Unavailable

32

NO DESCRIPTION AVAILABLE This part replaces 55300-28806.

55320-28020

Unavailable

33

STOPPER, BEAD | R

55150-20700

Unavailable

34

STOPPER, BEAD | J; FROM 55150-20700

65270-28600

$54.75

35

.WASHER | J This part replaces 08322-11068.

08322-0106B

$2.26

36

NUT | J This part replaces 08312-11088.

08310-00087

$2.13

37

BALANCER WHEEL (30G) | R; 30GJ; 30G This part replaces 55412-11000.

55413-41F00

$7.50

38

BALANCER, WHEEL | J; 50G

55411-30000

Unavailable
