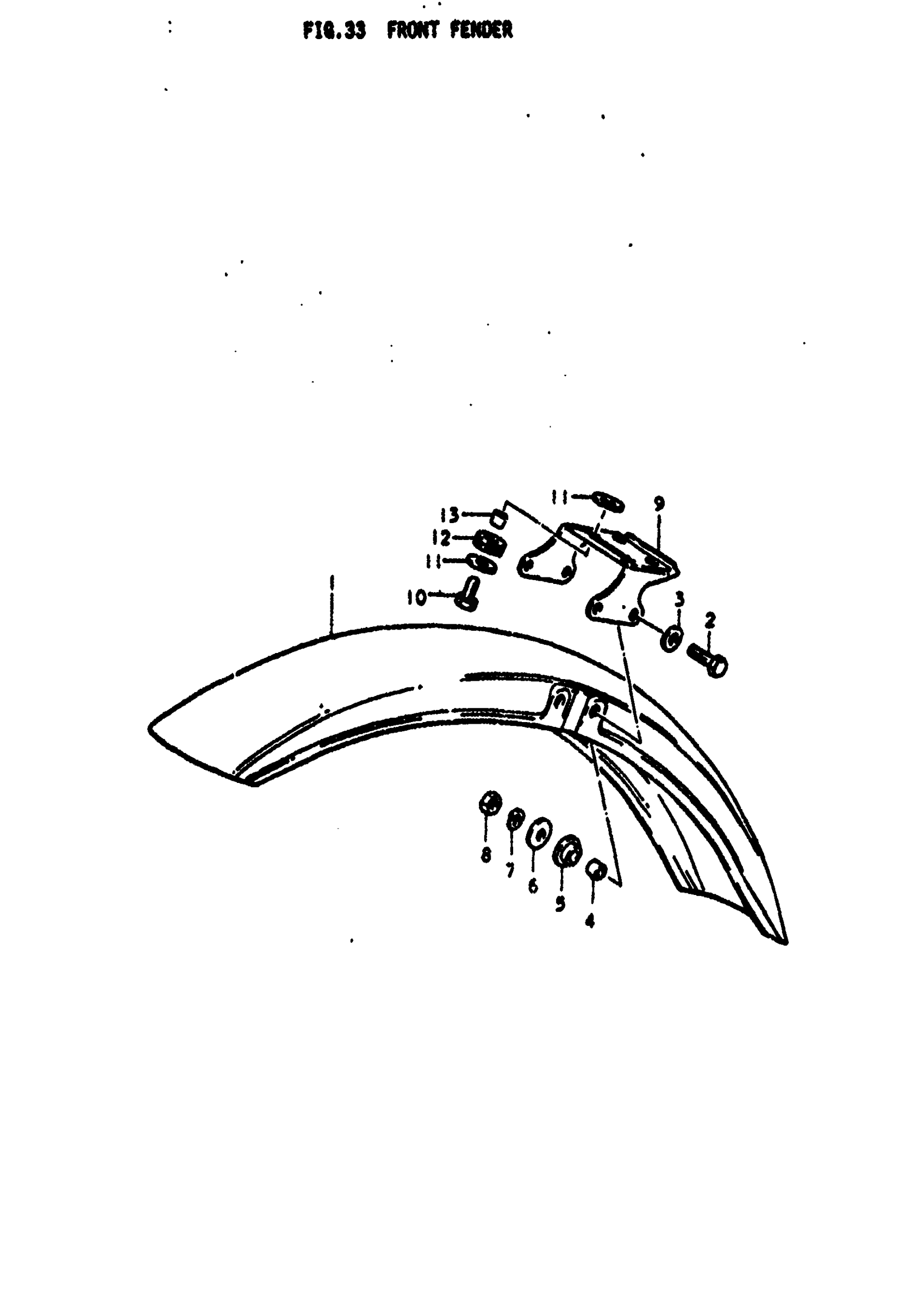

Suzuki TS125 (1972) FRONT FENDER Diagram

#

Description
Price

1

FENDER, FRONT | R; TO 53111-28601-737 This part replaces 53111-28601-137.

53111-28601-737

Unavailable

1

FENDER, FRONT | R

53111-28601-163

Unavailable

1

FENDER, FRONT | R

53111-28601-737

Unavailable

1

FENDER, FRONT This part replaces 53111-28601-184.

53111-28601-737

Unavailable

2

BOLT, FRONT FENDER

09100-06064

$1.61

2

BOLT, CANISTER | R This part replaces 01112-06168.

01500-06167

$1.97

3

WASHER This part replaces 08322-21068.

08322-01067

$2.13

4

SPACER, FRONT FENDER

09180-07011

Unavailable

5

CUSHION, FRONT FENDER

09320-09006

Unavailable

6

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

.NUT This part replaces 08311-11068.

08310-00067

$2.13

9

BRACE, FRONT FENDER

53211-28000

Unavailable

10

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

11

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

12

CUSHION, BRACE

09320-06007

Unavailable

13

SPACER, BRACE

09180-06038

$1.98
