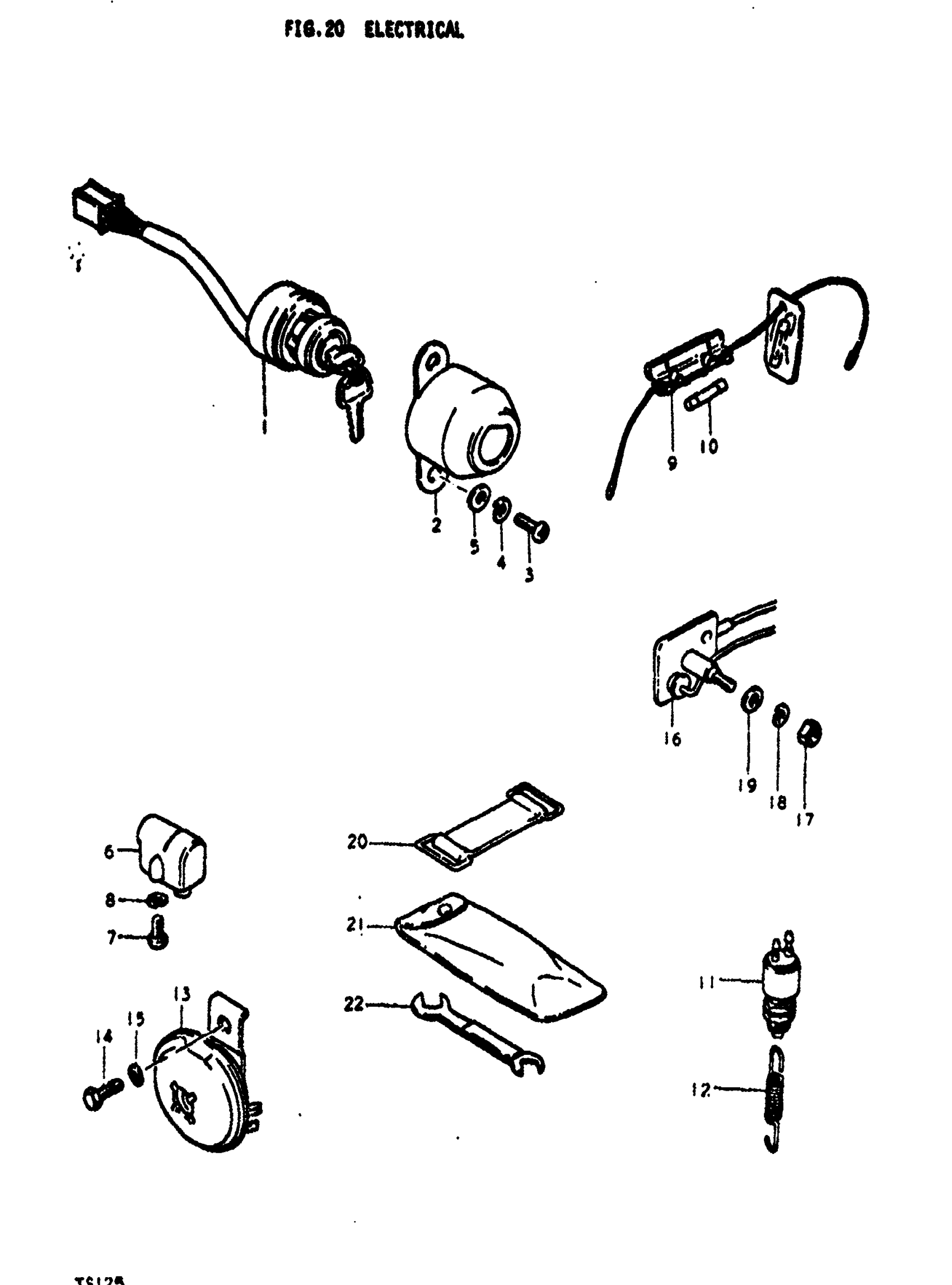

Suzuki TS125 (1972) ELECTRICAL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 37110-28611.

37110-28613

Unavailable

2

BRACKET, IGNITION SWITCH This part replaces 37115-30000.

37115-16401

Unavailable

3

SCREW This part replaces 02112-06128.

02112-06127

$1.84

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

WASHER This part replaces 08322-21068.

08322-01067

$2.13

6

LOCK ASSY, STEERING This part replaces 50000-25837.

51910-25311

$40.33

7

SCREW This part replaces 02111-05127.

02112-05127

$1.97

8

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

9

FUSE CASE ASSY | Includes Item(s) 10 This part replaces 36740-15010.

36740-15011

$9.38

10

FUSE | 15A

09481-15001

$2.06

11

SWITCH ASSY, STOP LAMP | TO 37610-53011 This part replaces 37610-53012.

37610-53011

$30.75

12

SPRING, SWITCH | TO 09443-06012 This part replaces 09443-06020.

09443-06012

$3.16

13

NO DESCRIPTION AVAILABLE This part replaces 38500-28031.

38500-28032

Unavailable

14

BOLT This part replaces 01122-08128.

01500-08127

$2.62

15

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

16

RECTIFIER | TO 32800-16421 This part replaces 32800-16420.

32800-16421

Unavailable

17

NUT This part replaces 08311-11058.

08310-00057

$1.84

18

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

19

WASHER This part replaces 08322-21058.

08322-01057

$2.13

20

BAND, TOOL

09462-00017

$3.23

21

TOOL ASSY This part replaces 09800-00108.

09800-21028

$33.02

22

WRENCH, CONTACT POINT

09930-20111

Unavailable
