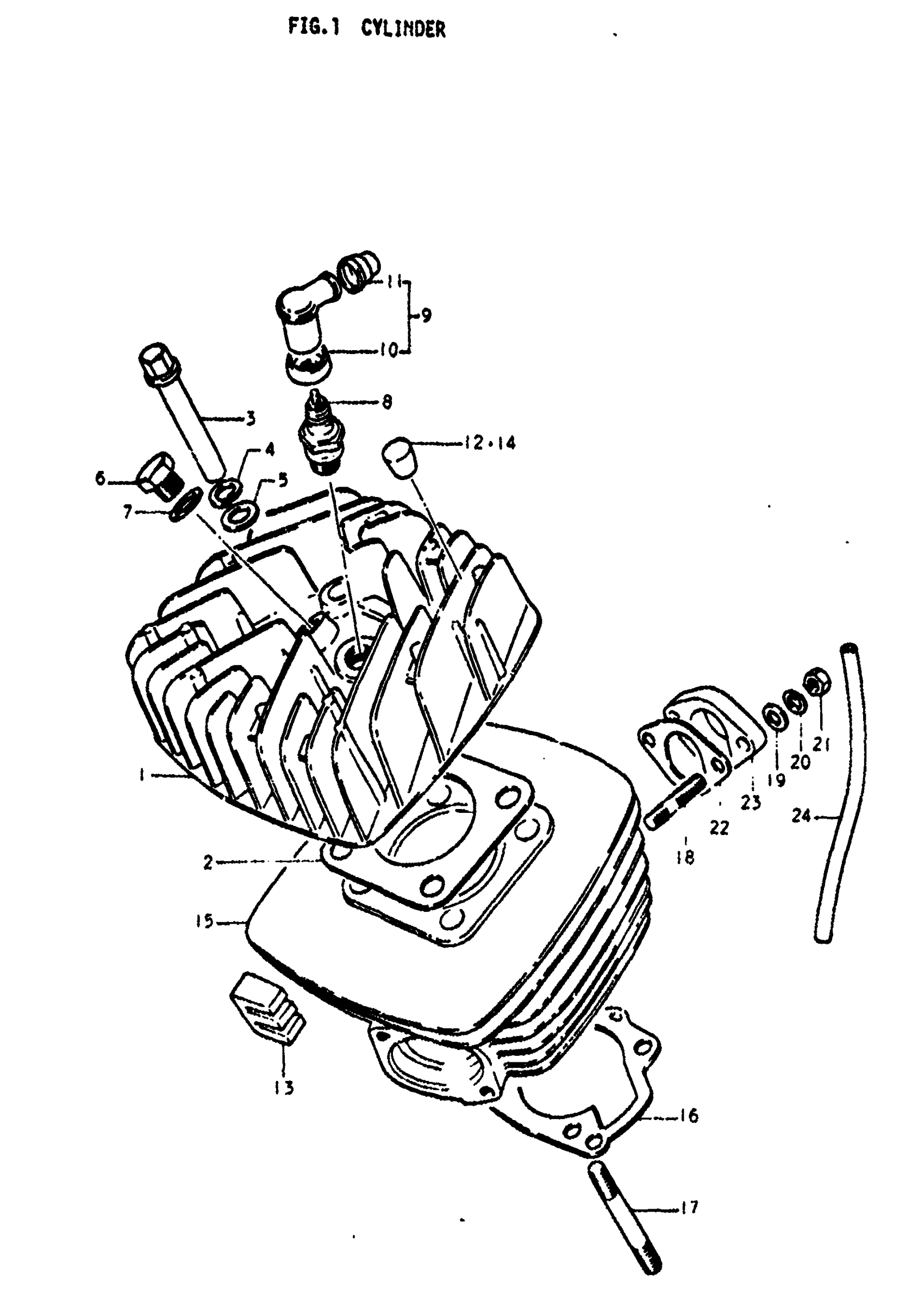

Suzuki TS125 (1972) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD | TO 11111-27301

11111-27300

Unavailable

2

GASKET, CYLLNDER HEAD

11141-28000

Unavailable

3

NUT, CYLINDER HEAD

09159-08006

$5.83

4

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

5

WASHER This part replaces 08322-11128.

08322-01127

$1.84

6

PLUG, DRAIN This part replaces 09247-14007.

09247-14025

$2.79

7

GASKET, CYLINDER HEAD

09168-14004

$1.83

8

SPARK PLUG | NGK, 8-77HC This part replaces 09482-00050.

09482-00082

$2.98

8

SPARK PLUG | ND, W-24FS

09482-00058

Unavailable

8

SPARK PLUG B8HS | NGK, B-8HS, OPT This part replaces 09482-00057.

09482-00198

$2.93

9

CAP SET,SPARK P | Includes Item(s) 10 - 11 This part replaces 33500-69810.

33500-69811

$22.48

10

SEAL, SPARK PLUG

33541-69010

$4.37

11

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34

12

PAD, CYLINDER HEAD | TO 11252-25000 This part replaces 11151-25000.

11252-25000

$4.52

13

RUBBER PAD CYLI This part replaces 11251-28000.

11251-28001

$5.24

14

RUBBER PAD, CYLINDER HEAD

11151-16400

Unavailable

15

CYLINDER

11210-28000

Unavailable

16

GASKET,CYLINDER This part replaces 11241-28000.

11241-28001

Unavailable

17

BOLT,STUD This part replaces 01421-08658.

01421-0865A

$3.85

18

STUD BOLT (L:30) This part replaces 01421-08308.

09108-08142

$3.18

19

WASHER This part replaces 08322-11088.

08322-01087

$2.13

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

21

NUT This part replaces 08312-11088.

08310-00087

$2.13

22

GASKET, CARBURETOR

13125-28000

Unavailable

23

INSULATOR, CARBURETOR

13129-28000

Unavailable

24

HOSE | 3x5x140 This part replaces 09344-03014.

09351-30001-600

$3.57
