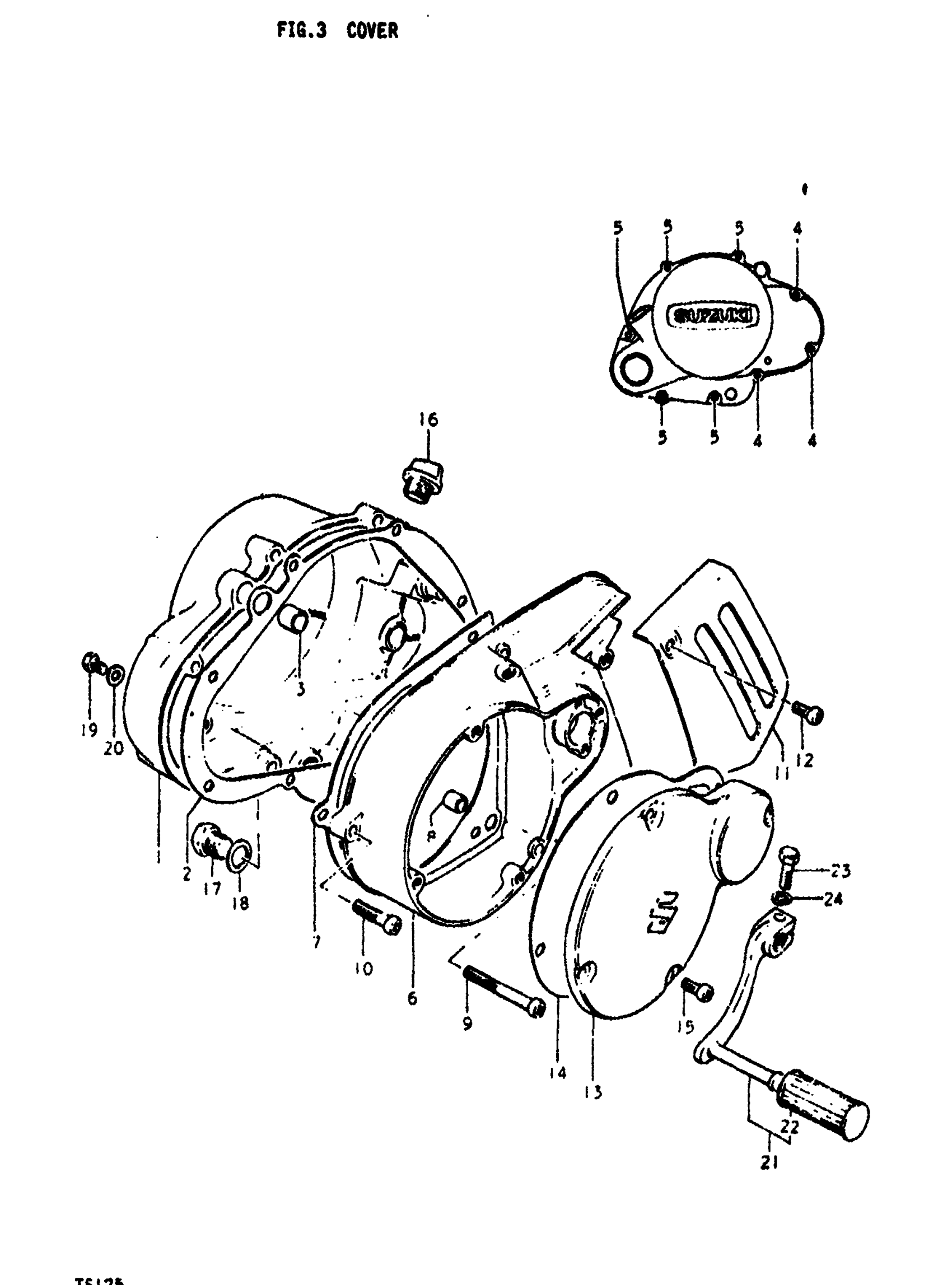

Suzuki TS125 (1972) COVER Diagram

#

Description
Price

1

COVER, CLUTCH | TO 11300-28850

11341-28001

Unavailable

2

GASKET,CLUTCH C This part replaces 11482-28000.

11482-28001

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

5

SCREW This part replaces 02112-06258.

02112-06257

$1.78

6

NO DESCRIPTION AVAILABLE This part replaces 11351-28000.

11351-28001

Unavailable

7

GASKET, MAGNETO COVER

11483-28000

Unavailable

8

DOWEL PIN

04211-09129

$1.65

9

SCREW

02112-06557

$2.53

10

SCREW This part replaces 02112-06258.

02112-06257

$1.78

11

COVER, ENGINE SPROCKET

11361-28001

Unavailable

12

SCREW This part replaces 02111-05108.

02112-05107

$1.49

13

CAP, MAGNETO INSPECTION | FROM 11381-28600

11381-28601

Unavailable

14

GASKET, MAGNETO INSPECTION CAP

11491-28000

Unavailable

15

SCREW This part replaces 02112-05168.

02112-05167

$1.97

16

PLUG SET This part replaces 09259-20003.

09200-20811

$4.02

17

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

18

GASKET, OIL DRAIN PLUG

09168-14004

$1.83

19

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

20

GASKET, OIL LEVEL PLUG

09168-06001

$1.49

21

LEVER ASSY, GEAR SHIFTING | FROM 25600-256101; Includes Item(s) 22

25600-05104

Unavailable

22

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-03201.

25652-16510

$3.74

23

BOLT This part replaces 01112-06208.

01500-06207

$2.28

24

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
