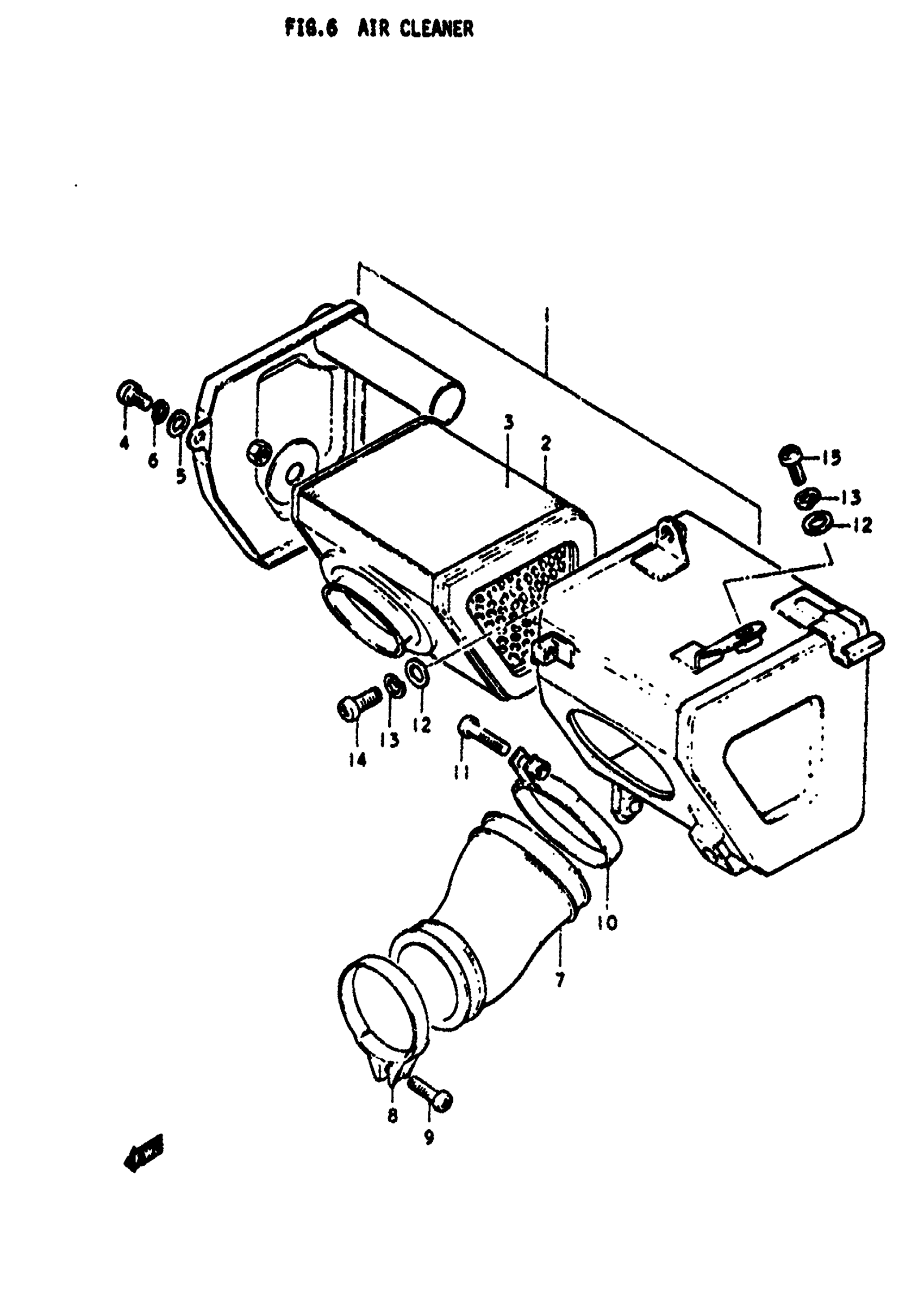

Suzuki TS125 (1972) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 6

13700-28110

Unavailable

2

FILTER This part replaces 13780-28210.

13780-28211

Unavailable

3

ELEMENT

13781-28210

Unavailable

4

SCREW This part replaces 02111-04087.

02112-04087

$1.49

5

WASHER This part replaces 08322-21048.

08322-01047

$1.86

6

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

7

HOSE, AIR INLET This part replaces 13881-28001.

13881-28002

Unavailable

8

CLAMP, INLET HOSE A

09402-50306

$4.77

9

SCREW This part replaces 02111-04207.

02112-0420A

$1.49

10

CLAMP, INLET HOSE B

09402-58306

$4.77

11

SCREW This part replaces 02111-04207.

02112-0420A

$1.49

12

WASHER This part replaces 08322-21068.

08322-01067

$2.13

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

SCREW This part replaces 02112-06128.

02112-06127

$1.84

15

SCREW This part replaces 02112-06168.

02112-06167

$1.49
