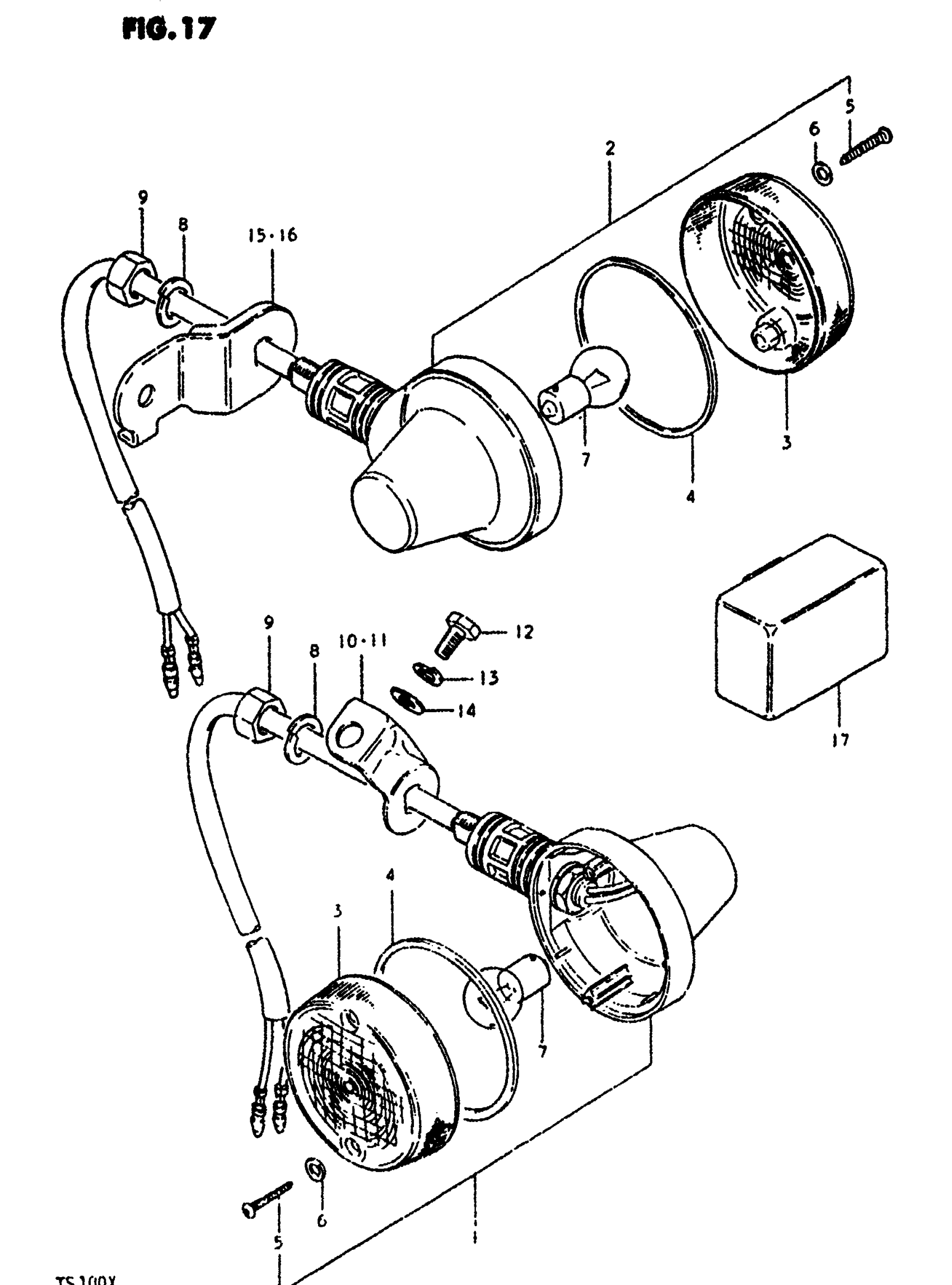

Find the part on the Turn Signal Lamp diagram for your 1981 Suzuki TS100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Suzuki TS100 Turn Signal Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY REAR | MODEL T This part replaces 35603-48521-999.

35603-48532-999

2
Out of stock

1

LAMP ASSY REAR | MODEL X This part replaces 35601-48532.

35603-48532-999

2
Out of stock

2

LAMP ASSY REAR | MODEL T This part replaces 35603-48521-999.

35603-48532-999

2
Out of stock

2

LAMP ASSY REAR | MODEL X; Includes Item(s) 3 - 6 This part replaces 35603-48532.

35603-48532-999

2
Out of stock

3

LENS,FR TRNSIG | MODEL T This part replaces 35612-48510.

35612-01A70

4
Out of stock

3

LENS,FR TRNSIG | MODEL X This part replaces 35612-48530.

35612-01A70

4
Out of stock

4

GASKET

35613-28620

4
Out of stock

5

SCREW This part replaces 03211-04258.

03211-0425B

8
Out of stock

6

GASKET

35627-43010

8

$2.65

In stock

7

BULB (6V,21CP)

09471-06011

4
Out of stock

8

LOCK WASHER This part replaces 08321-21128.

08321-01127

4
Out of stock

9

NUT, FIXED DRIVE FACE This part replaces 08310-12128.

09140-12039

4
Out of stock

10

BRACKET, FORNT RH (BLACK)

51251-29900-291

1
Out of stock

11

BRACKET, FRONT LH (BLACK)

51252-29900-291

1
Out of stock

12

BOLT This part replaces 01107-06128.

01500-06127

2
Out of stock

13

2

$2.28

In stock

14

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

15

BRACKET,RR TRNS This part replaces 41580-48500.

41580-46530

1
Out of stock

16

BRACKET, RR TUR This part replaces 41590-48500.

41590-46530

1
Out of stock

17

RELAY ASSY,TRN This part replaces 38610-48600.

38610-05X50

1
Out of stock
