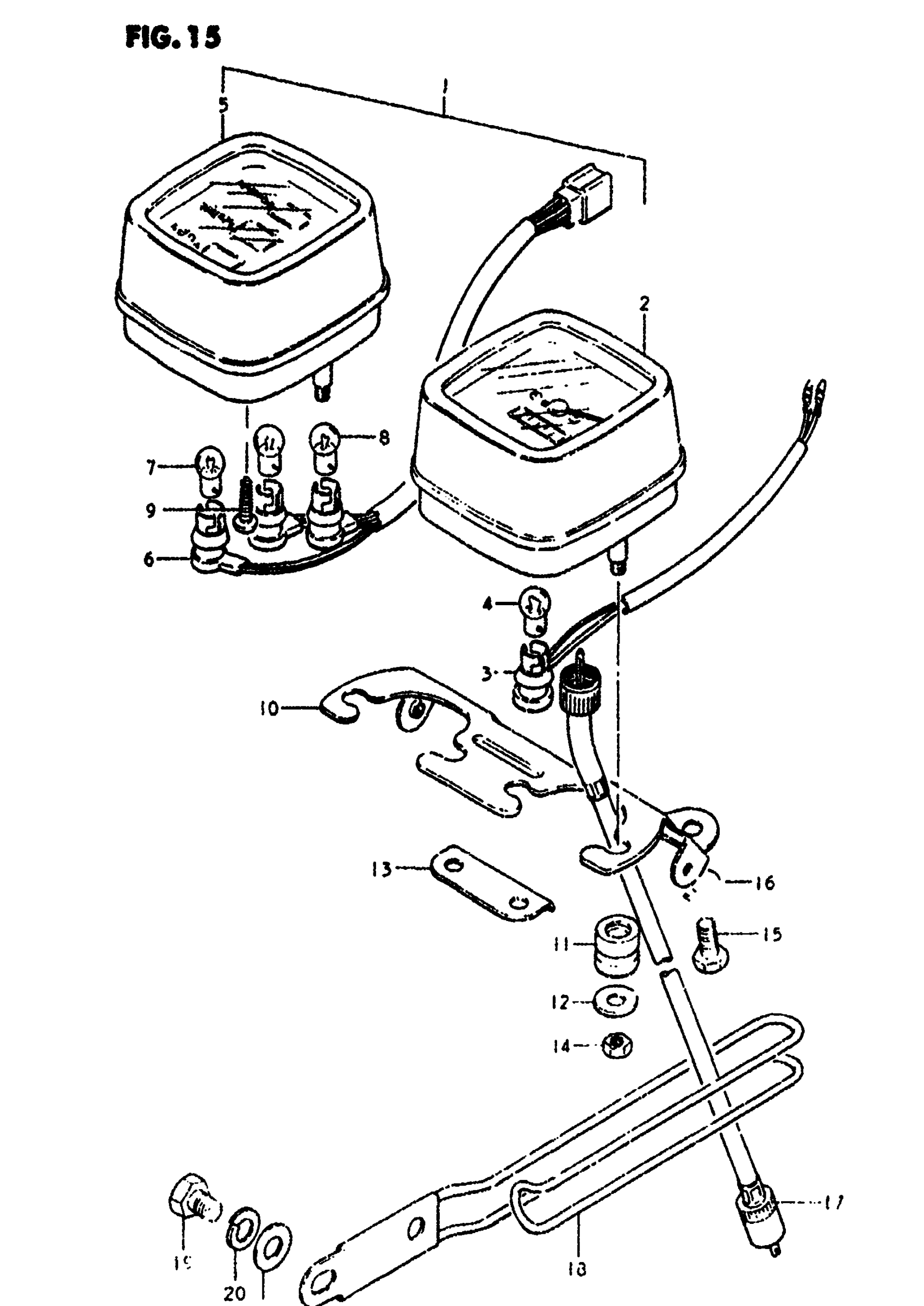

Suzuki TS100 (1981) SPEEDOMETER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 14 This part replaces 34100-48563.

34100-48515

Unavailable

2

NO DESCRIPTION AVAILABLE | KILO & MILE SCALE This part replaces 34110-48561.

34110-30931

Unavailable

3

SOCKET

34170-30640

Unavailable

4

BULB (6V, 3W)

09471-06002

$2.25

5

NO DESCRIPTION AVAILABLE This part replaces 36380-48560.

36381-48560

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 36325-48540.

36325-48541

Unavailable

7

BULB (6V,3W)

09471-06002

$2.25

8

BULB (6V, 1.7W)

09471-06001

$2.18

9

NO DESCRIPTION AVAILABLE This part replaces 34183-45100.

03141-04253

Unavailable

10

BRACKET

34950-48541

Unavailable

11

CUSHION

34189-29330

$4.58

12

WASHER (5.5X16X1.2) This part replaces 34181-30520.

09160-05037

$1.49

13

PLATE

34182-48510

Unavailable

14

NUT This part replaces 34185-48540.

08310-0005A

$1.84

15

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

16

WASHER This part replaces 08322-21068.

08322-01067

$2.13

17

CABLE, SPEEDOMETER | MODEL T This part replaces 34910-26500.

34910-26501

Unavailable

17

CABLE, SPEEDOMETER | MODEL X

34910-26501

Unavailable

18

GUIDE,CABLE This part replaces 58620-30501.

34930-05203

$18.80

19

BOLT This part replaces 01107-08128.

01500-08127

$2.62

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

21

WASHER This part replaces 08322-11088.

08322-01087

$2.13
