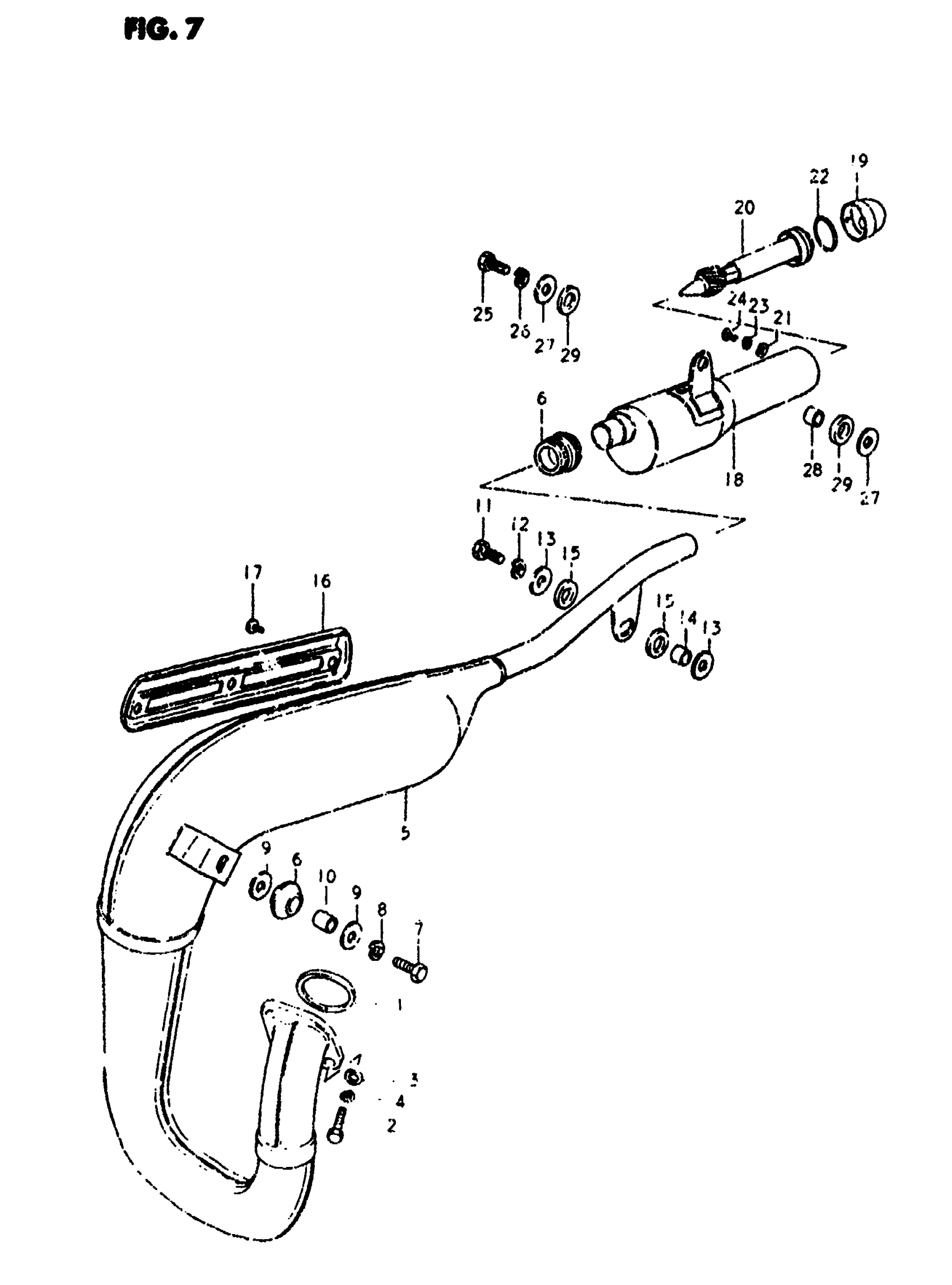

Suzuki TS100 (1981) MUFFLER Diagram

GASKET, EXHAUST PIPE This part replaces 14181-11010.

14181-01D00

$7.11

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.47

WASHER This part replaces 08322-21068.

08322-01067

$2.13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

MUFFLER ASSY This part replaces 14310-48500.

14310-48520-H01

Unavailable

DAMPER,MUFFLER, This part replaces 14772-30500.

14772-30501

$3.03

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

WASHER (8.5X22X2) This part replaces 09160-08007.

09160-08127

$2.12

SPACER,8.5X12X1 This part replaces 09180-08048.

09180-08302

$2.19

BOLT This part replaces 01107-08258.

01500-08257

$2.50

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

WASHER (8.5X26X1.6) This part replaces 09160-08005.

09160-08134

$2.03

SPACER,8.5X14X9 This part replaces 09180-08075.

09180-08200

$2.97

CUSHION This part replaces 09320-14006.

14761-03450

$1.80

COVER, MUFFLER

14781-48500

Unavailable

SCREW This part replaces 02112-06088.

02112-06087

$1.49

NO DESCRIPTION AVAILABLE | Includes Item(s) 19 - 24 This part replaces 14303-48500.

14303-48500-H01

Unavailable

COVER, TAIL

14649-48510

Unavailable

TUBE, CLEAN OUT

14850-30510

Unavailable

SCREW

09128-06013

$1.49

O RING

09280-05001

Unavailable

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

WASHER This part replaces 08322-21068.

08322-01067

$2.13

BOLT This part replaces 01107-08258.

01500-08257

$2.50

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

WASHER

09100-08005

Unavailable

SPACER, TAIL COVER RR RR This part replaces 09180-08050.

09180-08199

$2.12

CUSHION This part replaces 09320-14006.

14761-03450

$1.80

CONNECTOR This part replaces 14771-48001.

14771-48002

$13.04
