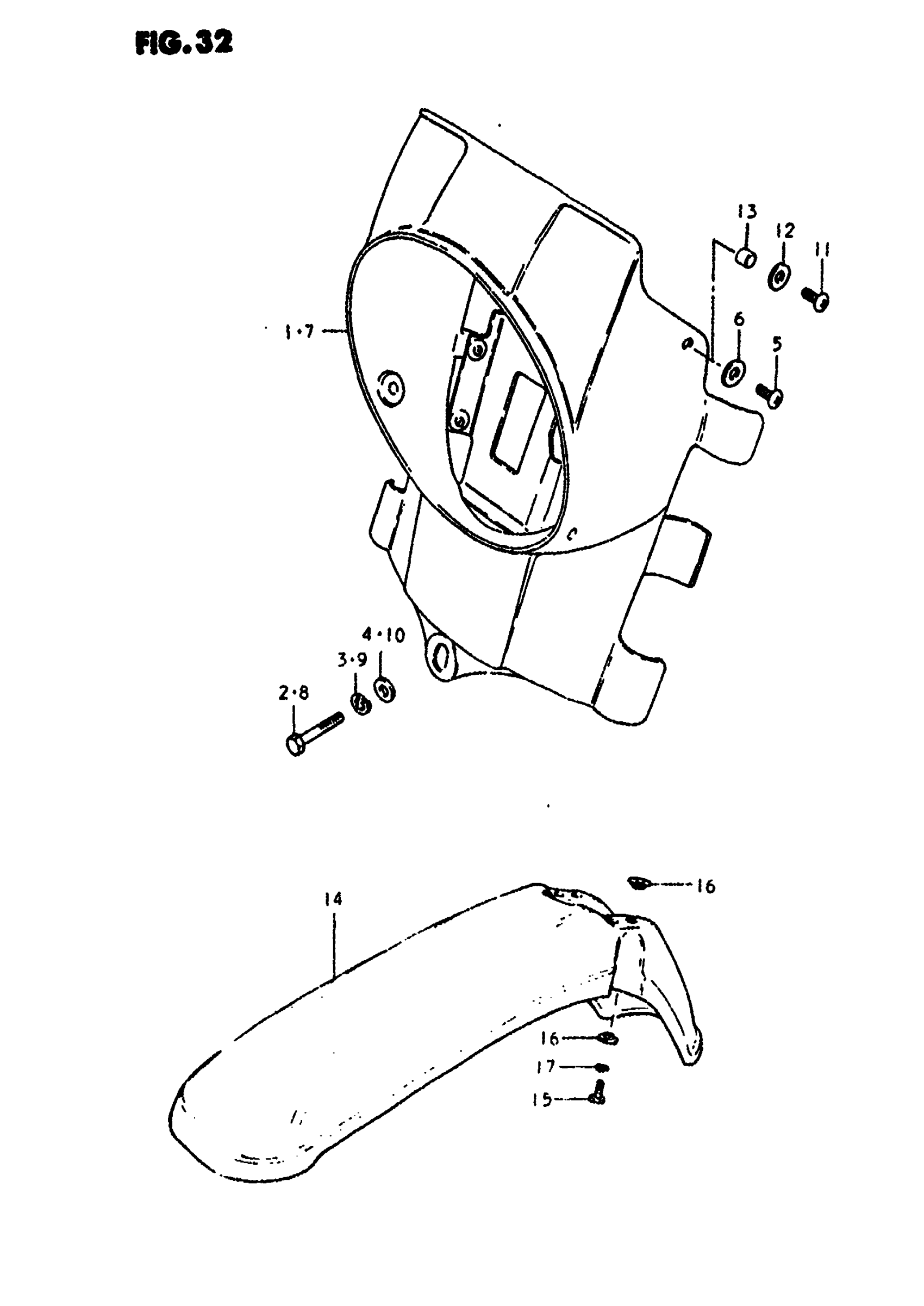

Suzuki TS100 (1981) HEADLAMP HOUSING - FRONT FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 51810-48502-08Y.

51810-48506-13L

Unavailable

2

BOLT | MODEL T This part replaces 01107-06128.

01500-06127

$1.97

3

LOCK WASHER | MODEL T This part replaces 08321-21068.

08321-01067

$2.13

4

WASHER (6.5X20X1.6) | MODEL T This part replaces 09160-06020.

09160-06066

$1.89

5

SCREW | MODEL T This part replaces 02112-05128.

02112-05127

$1.97

6

WASHER (5.5X16X1.2) | MODEL T This part replaces 09160-05017.

09160-05043

$2.30

7

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 51810-48504-08Y.

51810-48506-13L

Unavailable

8

BOLT | MODEL X This part replaces 01107-06128.

01500-06127

$1.97

9

LOCK WASHER | MODEL X This part replaces 08321-21068.

08321-01067

$2.13

10

WASHER (6.5X20X1.6) | MODEL X This part replaces 09160-06020.

09160-06066

$1.89

11

SCREW | MODEL X This part replaces 02112-05128.

02112-05127

$1.97

12

WASHER,5.5X18X1 | MODEL X This part replaces 09160-05006.

09160-05006-XC0

Unavailable

13

SPACER,5.5X8X4 | MODEL X This part replaces 09180-05015.

09180-05046

$2.50

14

NO DESCRIPTION AVAILABLE This part replaces 53111-26500-08Y.

53111-26501-13L

Unavailable

15

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

16

WASHER (6.3X16X1) This part replaces 09180-06048.

09169-06053

$1.49

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
