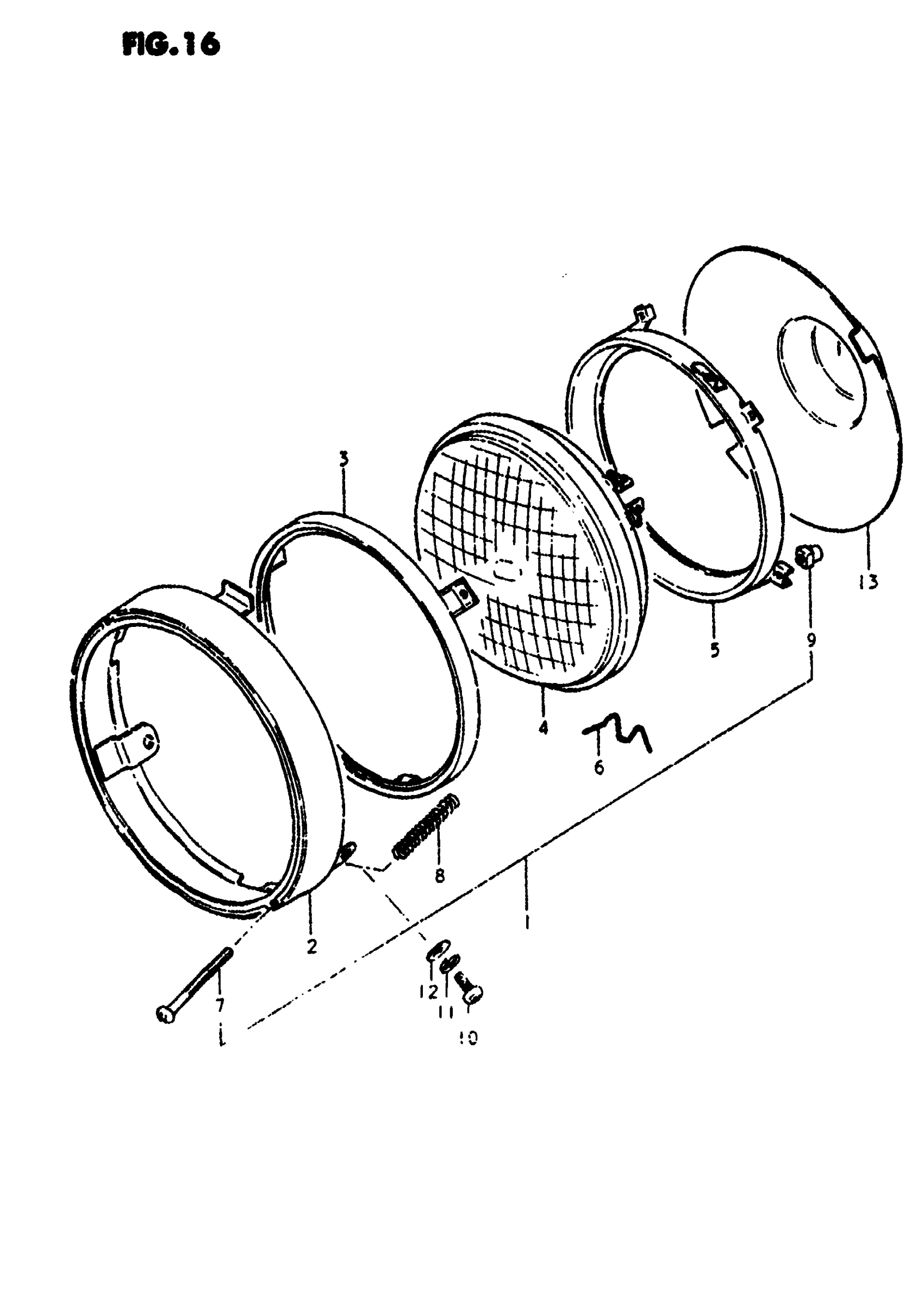

Suzuki TS100 (1981) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 9

35100-48530

Unavailable

2

RIM

35111-48530

Unavailable

3

RING

35127-48530

Unavailable

4

UNIT (6V,30/30W)

35121-29610

Unavailable

5

RING, MOUNTING

35130-48530

Unavailable

6

SPRING

35128-48530

Unavailable

7

SCREW This part replaces 35151-33611.

35151-45900

$3.65

8

SPRING

35154-31900

$5.32

9

NUT

35152-48530

Unavailable

10

SCREW This part replaces 02112-05168.

02112-05167

$1.97

11

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

12

WASHER This part replaces 08322-21058.

08322-01057

$2.13

13

COVER

35129-48530

Unavailable
