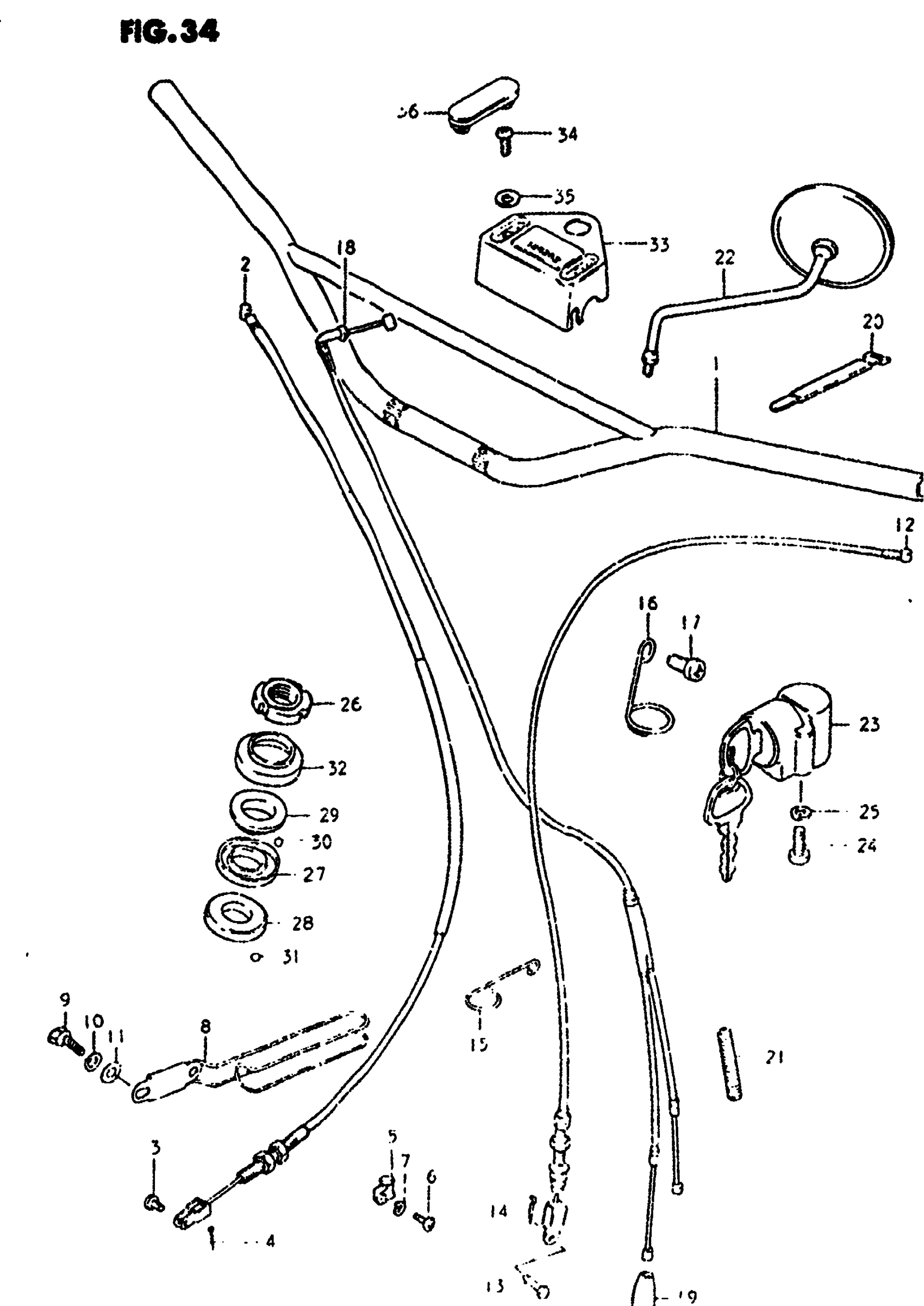

Suzuki TS100 (1981) HANDLEBAR Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 56110-48510-291.

56110-48511-291

Unavailable

1

HANDLEBAR | MODEL X

56110-48520

Unavailable

2

CABLE, FRONT BRAKE

58110-48510

Unavailable

3

PIN

09200-06013

$2.00

4

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

5

GUIDE, CABLE | MODEL T This part replaces 58621-32400.

58621-40401

Unavailable

5

CLAMP, BRAKE CABLE | MODEL X This part replaces 58621-48500.

58621-14201

$5.50

6

SCREW This part replaces 02112-06108.

02112-06107

$1.49

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

GUIDE,CABLE | MODEL T This part replaces 58620-30501.

34930-05203

$18.80

9

BOLT | MODEL T This part replaces 01107-08128.

01500-08127

$2.62

10

.LOCK WASHER | MODEL T This part replaces 08321-21088.

08321-01087

$2.13

11

WASHER | MODEL T This part replaces 08322-11088.

08322-01087

$2.13

12

CABLE,CLUTCH This part replaces 58200-48000.

58200-46090

$14.75

13

PIN

09200-06011

Unavailable

14

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

15

CLAMP

58626-48500

Unavailable

16

CLAMP

34949-30002

$5.69

17

SCREW This part replaces 02112-06108.

02112-06107

$1.49

18

CABLE ASSY,THRO This part replaces 58300-48001.

58300-48402

Unavailable

19

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.30

20

CLAMP This part replaces 09407-11301.

09407-18302

$2.28

21

PROTECTOR | MODEL T

58399-27100

$3.78
