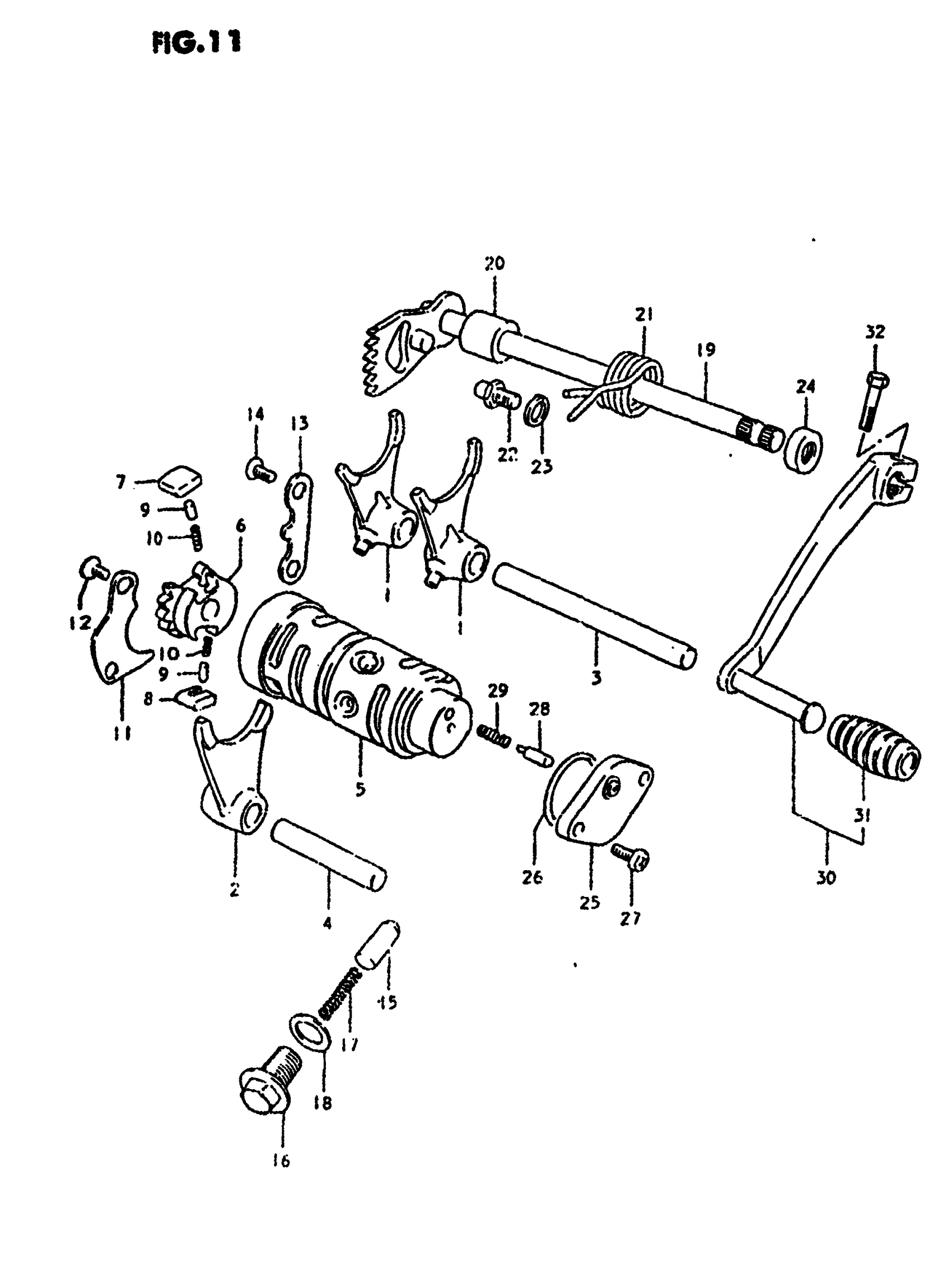

Suzuki TS100 (1981) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, NO.1 This part replaces 25211-48001.

25211-41301

$87.70

2

NO DESCRIPTION AVAILABLE This part replaces 25221-41301.

25221-41X00

Unavailable

3

SHAFT, GEAR SHI This part replaces 25411-48000.

25411-48001

Unavailable

4

SHAFT, NO.1 This part replaces 25421-48000.

25421-35410

$23.47

5

CAM, GEAR SHIFTING

25310-48001

Unavailable

6

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-11000.

25322-31310

$26.93

7

PAWL, GEAR SHIFT NO.1 This part replaces 25323-11000.

25323-34201

$7.22

8

PAWL, GEAR SHIFT NO.2 This part replaces 25324-11000.

25324-34201

$7.22

9

PIN

09261-05003

$1.54

10

SPRING

09440-04003

$1.54

11

LIFTER, PAWL

25331-11001

$6.38

12

SCREW This part replaces 02122-06128.

02122-06127

$1.84

13

GUIDE, CAM This part replaces 25341-48000.

25341-40001

$12.17

14

SCREW This part replaces 02122-06108.

02122-0610A

$1.68

15

STOPPER, CAM This part replaces 25351-11000.

25351-11010

$7.22

16

HOLDER, STOPPER This part replaces 25352-11000.

25352-11010

$7.22

17

SPRING

09440-05007

$1.82

18

GASKET

09168-14004

$1.83

19

SHAFT, GEAR SHIFTING

25510-48010

Unavailable

20

SPACER

09180-12068

$3.16

21

SPRING

09444-26013

$3.10

22

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

23

.LOCK WASHER This part replaces 09162-08005.

08321-01087

$2.13

24

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

25

BODY, SWITCH

37720-29350

$15.42

26

O RING (D:2.4,ID:26.2) This part replaces 09280-26003.

09280-26005

$2.30

27

SCREW This part replaces 02112-05128.

02112-05127

$1.97

28

CONTACT, SWITCH

09209-05011

$2.20

29

SPRING

09440-04010

$1.54

30

LEVER ASSY,GEAR | Includes Item(s) 31 This part replaces 25600-30501.

25600-30502

$33.29

31

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.74

32

BOLT This part replaces 09100-06091.

01500-06207

$2.28
