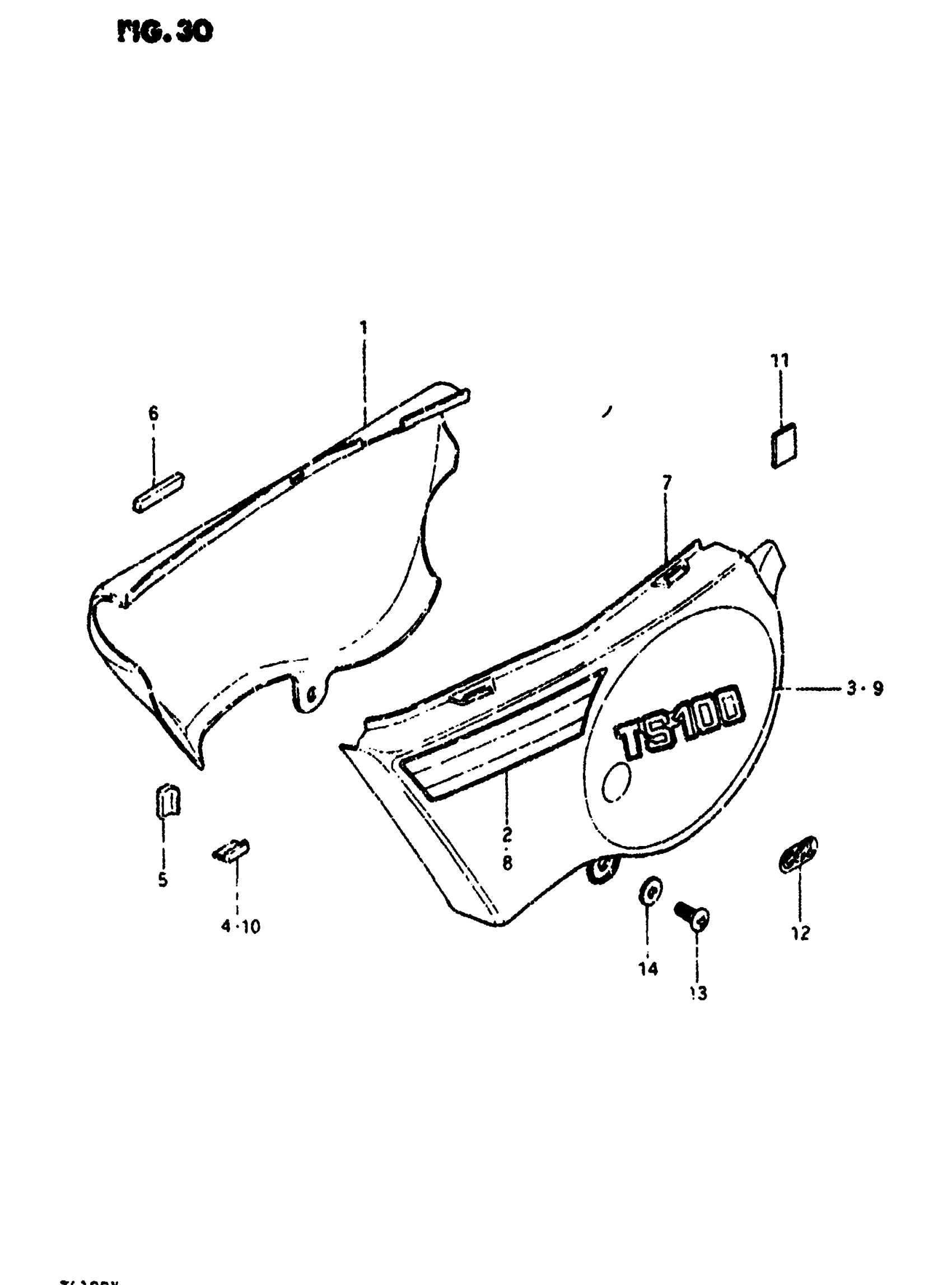

Suzuki TS100 (1981) FRAME COVER (TS100X) Diagram

#

Description
Price

1

COVER,FRAME,RH This part replaces 47111-48500-08Y.

47111-48500

$74.85

2

TAPE, RH

68136-48540-75J

Unavailable

3

EMBLEM, "100" (BLACK)

68131-48560-75H

Unavailable

4

CUSHION, UPPER

47117-45000

$2.14

5

CUSHION, FRONT NO.1

47117-02400

$2.37

6

CUSHION, FRONT NO.2

47117-46400

$2.42

7

COVER,FRAME,LH This part replaces 47211-48500-08Y.

47211-48500

Unavailable

8

TAPE, LH

68146-29920-75J

Unavailable

9

EMBLEM, "100" (BLACK)

68141-48560-75H

Unavailable

10

CUSHION, UPPER

47117-45000

$2.14

11

CUSHION, LOWER

33651-37000

$4.48

12

EMBLEM "CCI"

68171-26000

$3.59

13

SCREW

02142-06127

$1.49

14

WASHER This part replaces 09160-06007.

09160-06084

$1.78
