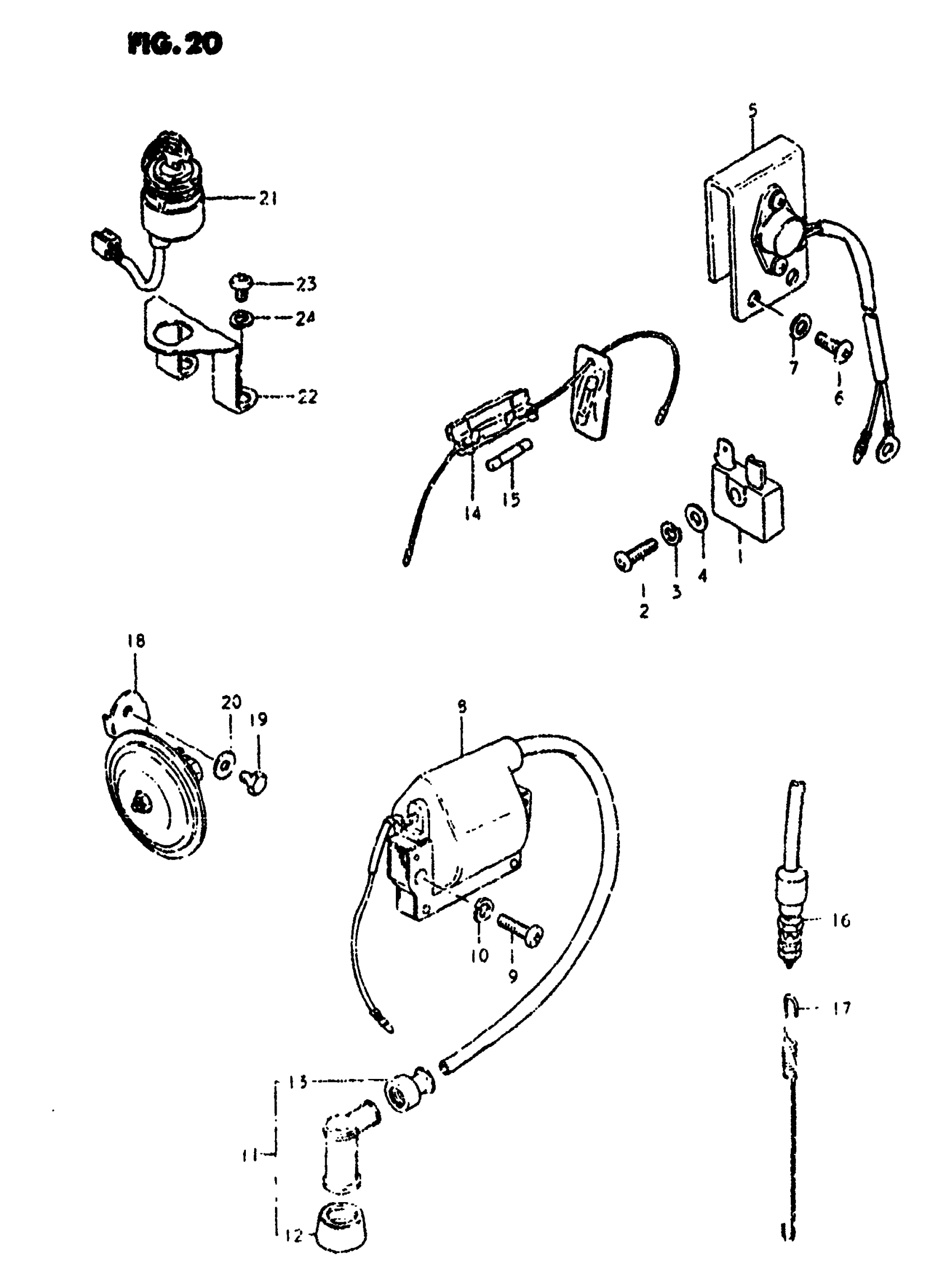

Suzuki TS100 (1981) ELECTRICAL Diagram

#

Description
Price

1

DIODE This part replaces 32800-19063.

32800-16A00

$23.07

2

SCREW This part replaces 02112-05208.

02112-05207

$1.97

3

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

4

WASHER This part replaces 08322-21058.

08322-01057

$2.13

5

REGULATOR, VOLTAGE This part replaces 32500-27600.

32500-25600

Unavailable

6

SCREW This part replaces 02112-06128.

02112-06127

$1.84

7

WASHER This part replaces 08322-21068.

08322-01067

$2.13

8

COIL ASSY, IGNITION

33410-48520

Unavailable

9

SCREW This part replaces 02112-06258.

02112-06257

$1.78

10

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

11

CAP SET,SPARK P | Includes Item(s) 12 - 13 This part replaces 33500-69810.

33500-69811

$22.48

12

SEAL, SPARK PLUG

33541-69010

$4.37

13

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34

14

FUSE CASE ASSY | Includes Item(s) 15 This part replaces 36740-35011.

36740-35012

$11.60

15

FUSE (10A)

09481-10001

$1.71

16

SWITCH, REAR BRAKE LAMP | MODEL T This part replaces 37740-04570.

37740-48071

$19.18

16

SWITCH, REAR BRAKE LAMP | MODEL X This part replaces 37740-04571.

37740-48071

$19.18

17

SPRING

09443-06033

Unavailable

18

NO DESCRIPTION AVAILABLE This part replaces 38500-48580.

38500-48581

Unavailable

19

BOLT This part replaces 01107-06108.

01500-06107

$2.06

20

WASHER This part replaces 08322-21068.

08322-01067

$2.13

21

SWITCH ASSY IGN This part replaces 37110-48500.

37110-48501

$108.97

22

BRACKET

37115-48501

Unavailable

23

SCREW This part replaces 02112-06108.

02112-06107

$1.49

24

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
