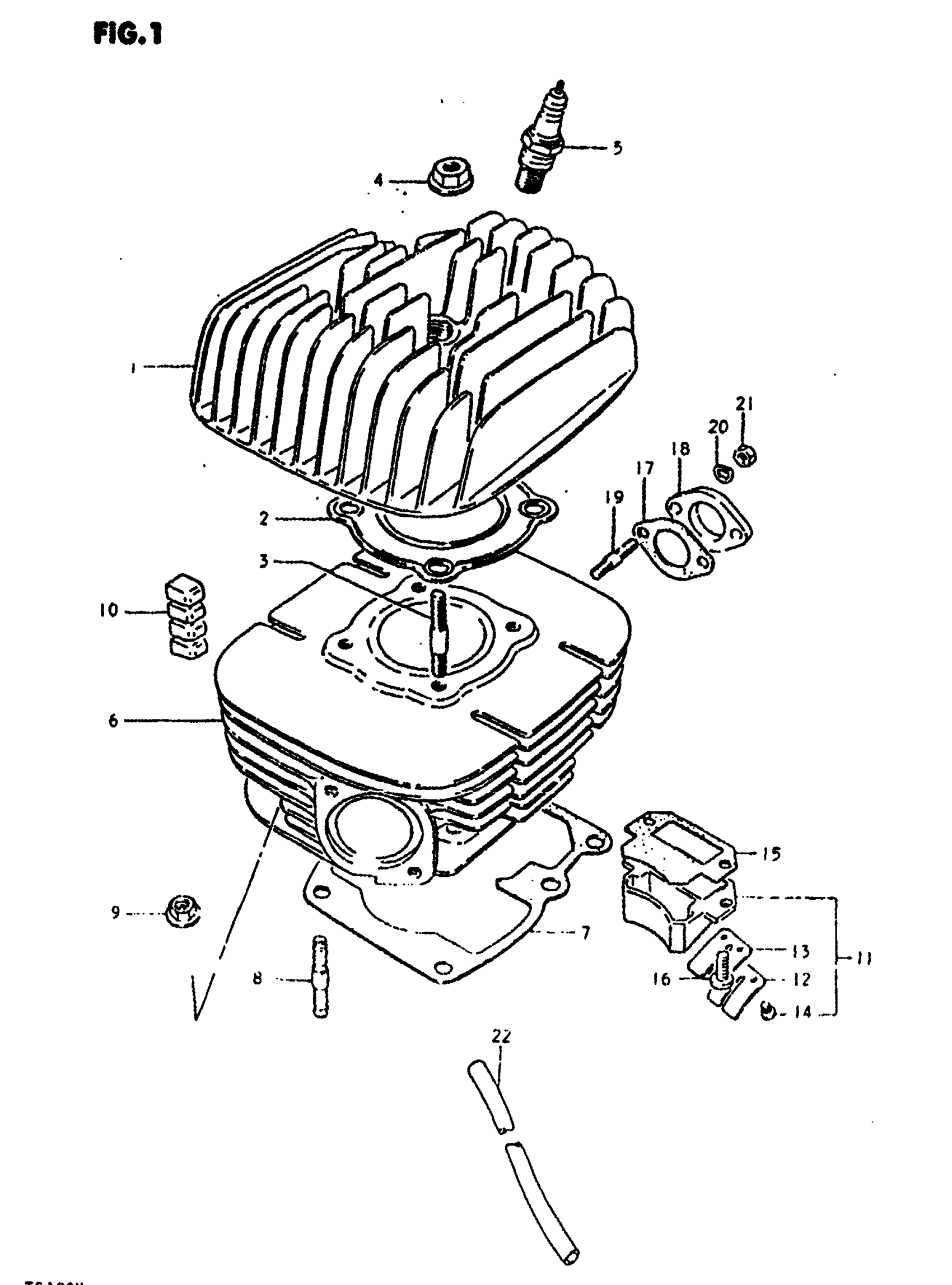

Suzuki TS100 (1981) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD

11111-48103

Unavailable

2

GASKET,CYL HEAD This part replaces 11141-48120.

11141-48121

Unavailable

3

STUD BOLT This part replaces 01421-08358.

01421-0835A

$2.29

4

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

5

SPARK PLUG This part replaces 09482-00225.

09482-00091

$3.01

5

SPARK PLUG (ND, W24ES)

09482-00047

Unavailable

5

SPARK PLUG W24E This part replaces 09482-00196.

09482-00247-111

Unavailable

6

CYLINDER This part replaces 11210-48101.

11210-48103

Unavailable

7

GASKET, CYLINDE This part replaces 11241-41300.

11241-41321

$7.75

8

BOLT,STUD This part replaces 01421-08258.

01421-0825A

$2.03

9

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

10

RUBBER PAD (N9->4) This part replaces 11251-48000.

11251-36500

$6.52

11

VALVE ASSY, REE | Includes Item(s) 12 - 14 This part replaces 13150-48011.

13150-48700

Unavailable

12

STOPPER

13152-48010

$9.17

13

REED VALVE

13153-41110

$11.38

14

SCREW This part replaces 13154-19011.

02112-0308A

$1.80

15

GASKET,REED VAL This part replaces 13156-41100.

13156-41100-H17

$3.43

16

SCREW This part replaces 02112-06208.

02112-06207

$1.78

17

GASKET,CARBURET This part replaces 13125-11000.

13125-11000-H17

$2.52

18

INSULATOR, CARBURETOR

13129-48000

$11.07

19

STUD BOLT (L:30) This part replaces 01421-08308.

09108-08142

$3.18

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

21

NUT This part replaces 08310-12088.

08310-00087

$2.13

22

HOSE This part replaces 09344-03019.

09351-30001-600

$3.57
