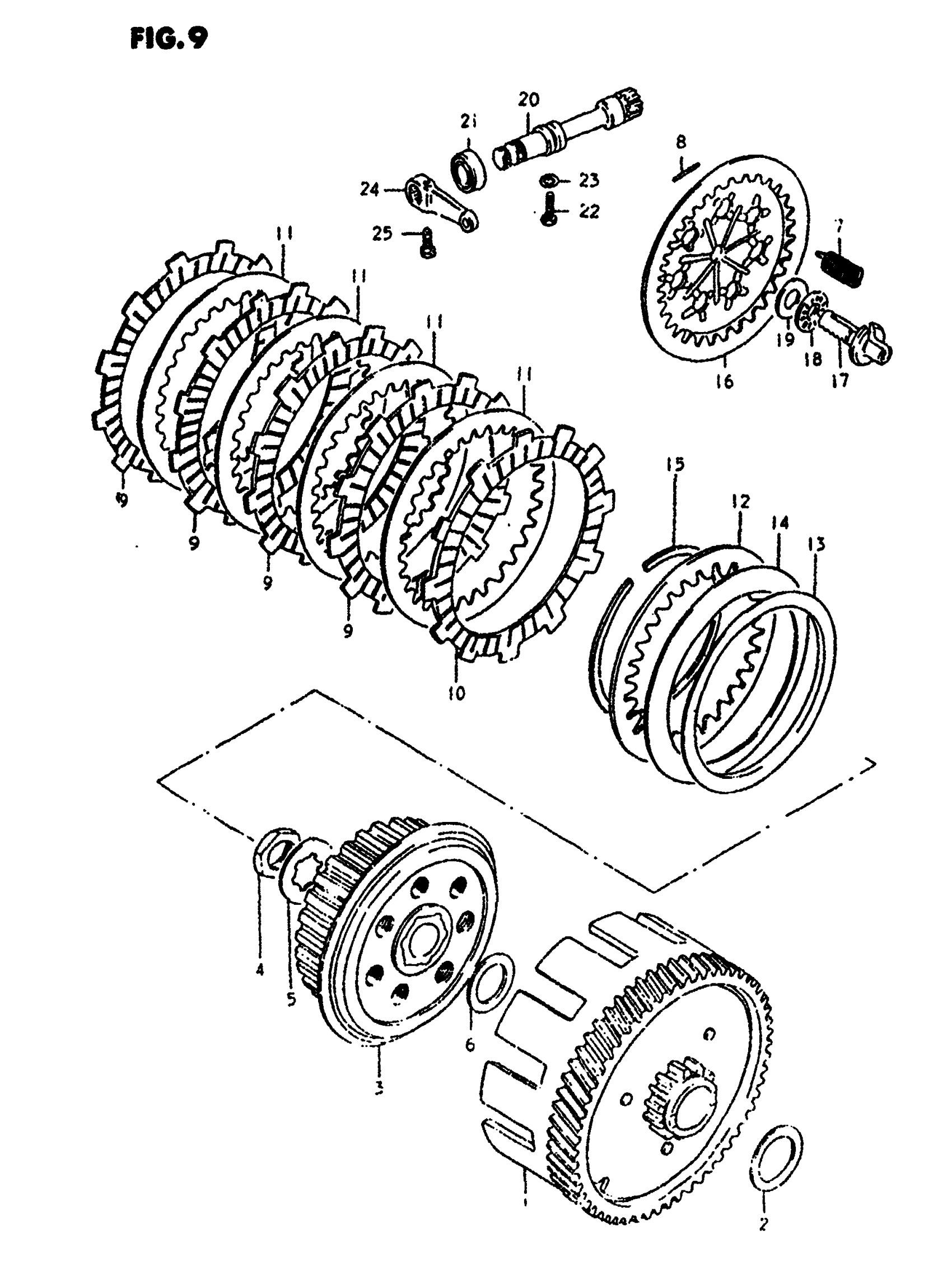

Suzuki TS100 (1981) CLUTCH Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | NT:57/17,~E.NO. 178871 This part replaces 21200-48002.

21200-48020

Unavailable

1

NO DESCRIPTION AVAILABLE | NT:57/17,E.NO. 178872~ This part replaces 21200-48003.

21200-48020

Unavailable

2

WASHER

08211-20323

$3.03

3

HUB,CLUTCH SLEE This part replaces 21410-48000.

21410-39131

$89.43

4

NUT This part replaces 09140-16001.

09140-16005

$3.75

5

WASHER

09167-17002

$1.91

6

WASHER

08211-17282

$2.70

7

SPRING

09443-12018

$2.92

8

PIN

09261-02001

$1.56

9

PLATE, CLUTCH DRIVE This part replaces 21441-28300.

21441-13A01

$14.73

10

PLATE, CLUTCH DRIVE NO.2 This part replaces 21441-36200.

21442-32C01

$16.78

11

PLATE, CLUTCH DRIVEN (T:1.6) This part replaces 21451-28000.

21451-19A00

$7.58

12

PLATE, DRIVEN NO.2

21451-36200

$7.58

13

SEAT, WAVE WASHER

21471-36200

$14.53

14

WAVE WASHER

09164-98001

$12.70

15

SNAP RING

09381-91001

Unavailable

16

PLATE, PRESSURE

21460-28000

$25.25

17

RACK This part replaces 23165-48000.

23165-46000

$22.21

18

BEARING

09263-10002

$10.19

19

WASHER This part replaces 09160-10021.

09160-10121

$2.03

20

PINION, RELEASE This part replaces 23261-48000.

23261-28300

$45.38

21

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

22

BOLT

09135-06009

$2.23

23

WASHER This part replaces 08322-21068.

08322-01067

$2.13

24

ARM, RELEASE

23271-29300

$29.50

25

BOLT This part replaces 01107-06208.

01500-06207

$2.28
