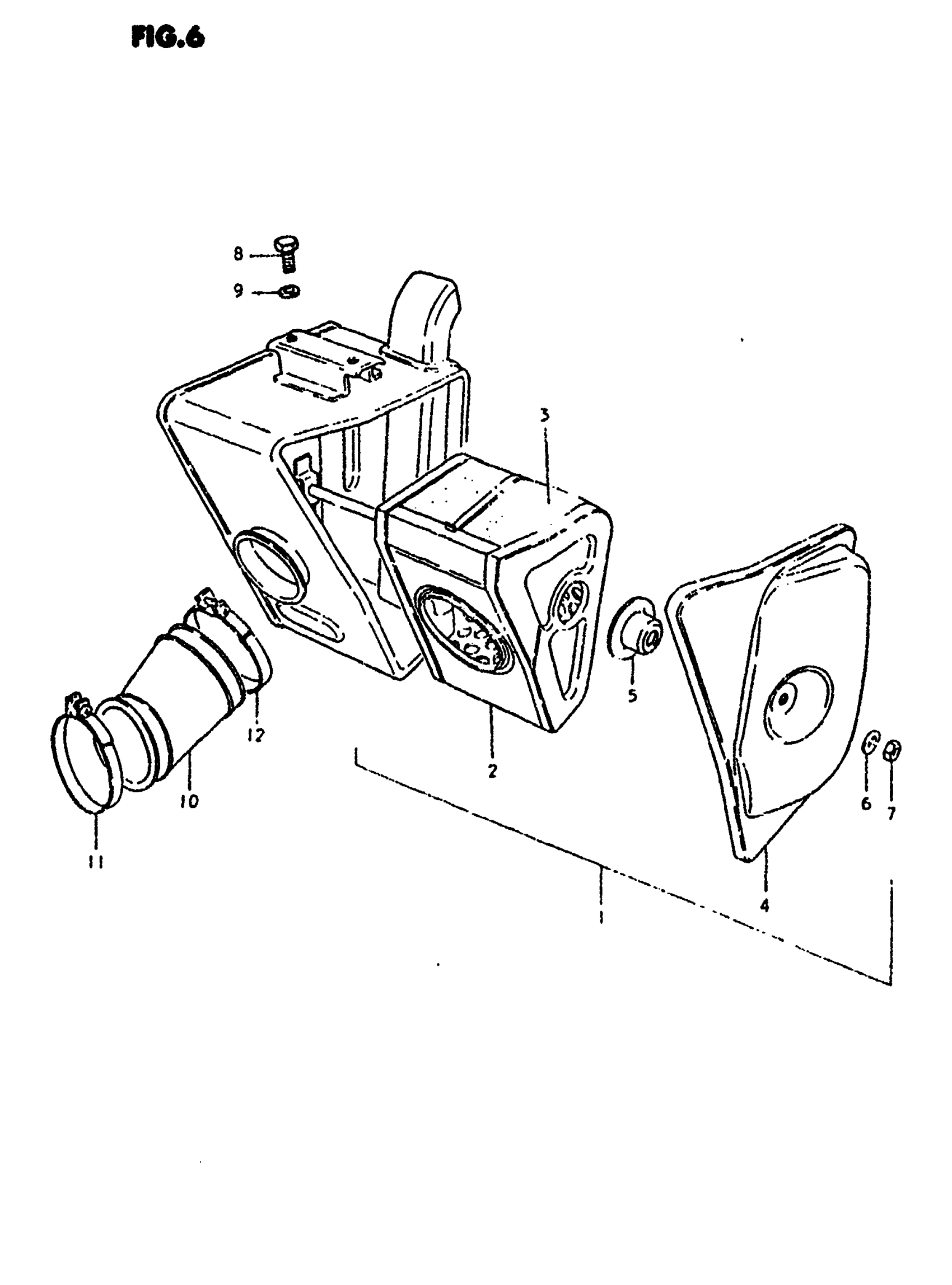

Suzuki TS100 (1981) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 7

13700-48502

Unavailable

2

FILTER ASSY

13780-29310

$26.47

3

ELEMENT

13781-29310

$8.55

4

CAP

13771-29310

$19.15

5

SPACER

13790-29310

$8.42

6

WASHER This part replaces 08322-21068.

08322-01067

$2.13

7

.NUT This part replaces 08310-11068.

08310-00067

$2.13

8

BOLT This part replaces 01107-06128.

01500-06127

$1.97

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

HOSE, AIR INLET

13881-48000

$16.78

11

CLAMP

09402-52306

$4.91

12

..CLAMP This part replaces 09402-60306.

09402-60208

$5.11
