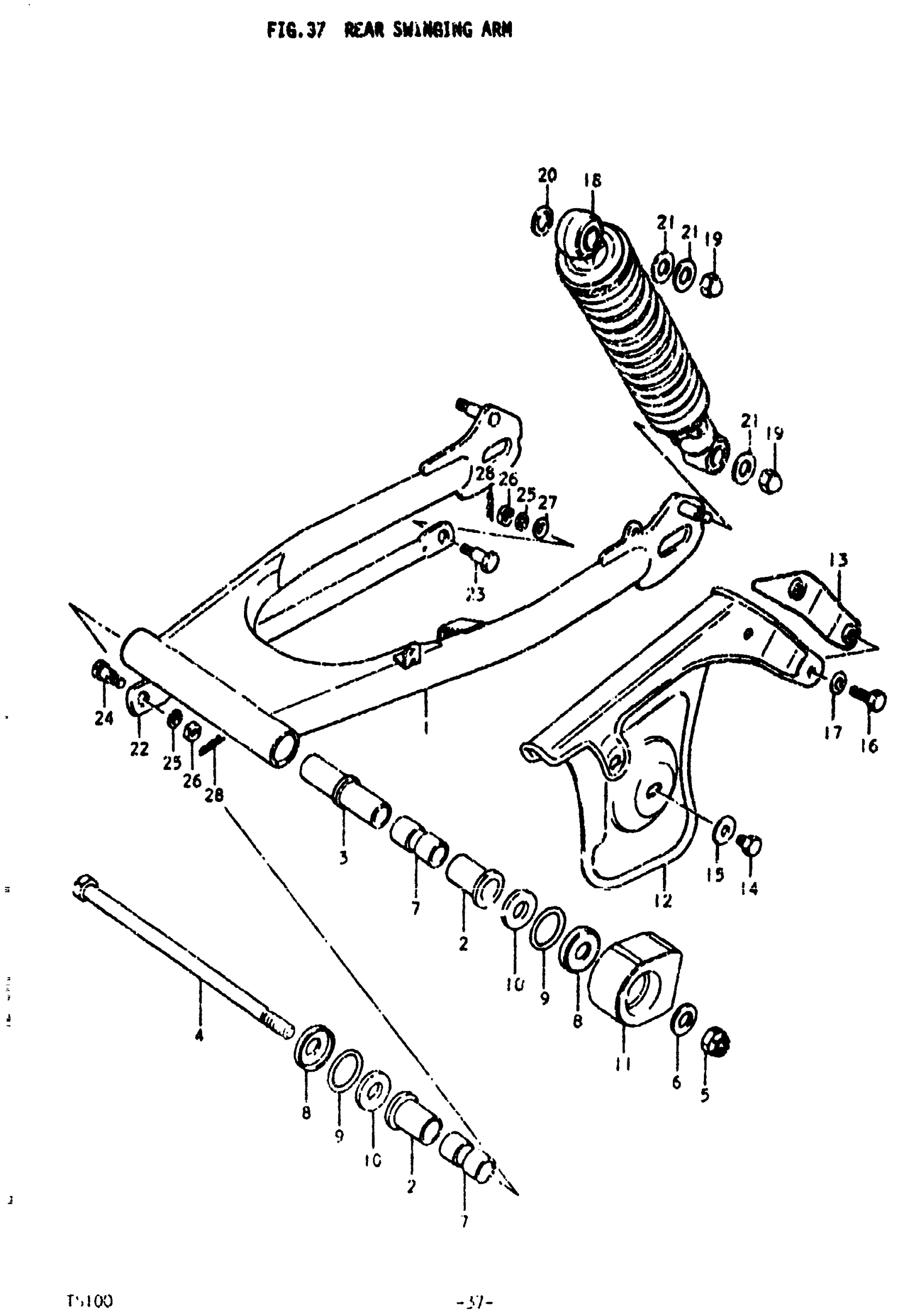

Find the part on the Rear Swinging Arm diagram for your 1979 Suzuki TS100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Suzuki TS100 Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR SWINGING ARM SET | Includes Item(s) 2 - 3

61100-48821-019

1
Out of stock

2

BUSHING

09307-18002

2

$9.94

In stock

3

SPACER, CENTER

61280-29300

1

$19.03

In stock

4

1

$24.63

In stock

5

NUT

09159-12102

1

$4.12

In stock

6

WASHER This part replaces 08322-11128.

08322-01127

1
Out of stock

7

SPACER

61251-28000

2

$13.33

In stock

8

COVER

61262-09200

2

$3.68

In stock

9

.O-RING (D:3,ID:24.5) This part replaces 09280-24001.

09280-24003

2
Out of stock

10

THRUST WASHER | .3

09160-12005

2

$2.58

In stock

11

1

$12.83

In stock

12

CHAIN CASE (BLACK) This part replaces 61311-29301-019.

61311-29302-019

1
Out of stock

13

NO DESCRIPTION AVAILABLE This part replaces 61380-29300.

61380-26500

1
Out of stock

14

BOLT

09100-06011

3

$1.82

In stock

15

WASHER

09169-06010

3

$2.83

In stock

16

1

$2.10

In stock

17

1

$1.84

In stock

18

NO DESCRIPTION AVAILABLE This part replaces 62100-48000.

62100-26590

2
Out of stock

19

4

$2.73

In stock

20

WASHER This part replaces 08322-11128.

08322-01127

2
Out of stock

22

NO DESCRIPTION AVAILABLE This part replaces 64311-46000.

64311-46000-019

1
Out of stock

23

BOLT

09111-08015

1
Out of stock

24

BOLT

09111-08013

1

$3.00

In stock

25

2

$2.28

In stock

26

NUT

09140-08008

2

$1.55

In stock

27

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock
