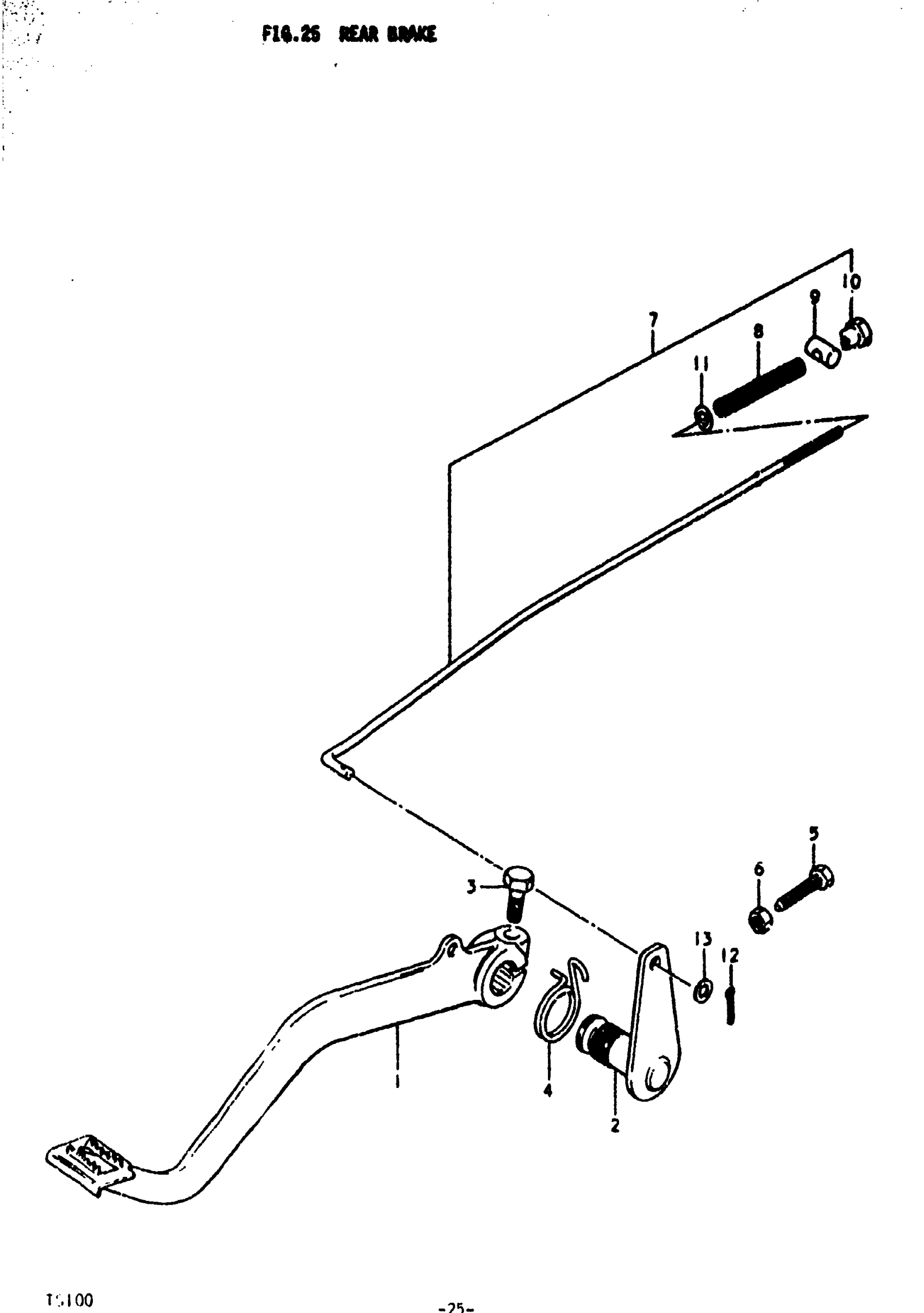

Suzuki TS100 (1979) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE

43110-29301

Unavailable

2

ARM, PEDAL LOD

43120-29300

Unavailable

3

BOLT This part replaces 01107-06208.

01500-06207

$1.99

4

SPRING

09448-25001

$4.51

5

BOLT

09100-06009

$1.79

6

.NUT This part replaces 08310-11068.

08310-00067

$1.83

7

LOD ASSY, REAR BRAKE | Includes Item(s) 8 - 13

43300-48000

Unavailable

8

SPRING

09440-09004

$2.06

9

PIN

09209-11002

$2.17

10

.NUT This part replaces 09150-06001.

09150-06010

$2.80

11

WASHER This part replaces 08322-21058.

08322-01057

$1.86

12

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

13

WASHER This part replaces 08322-21068.

08322-01067

$1.86
