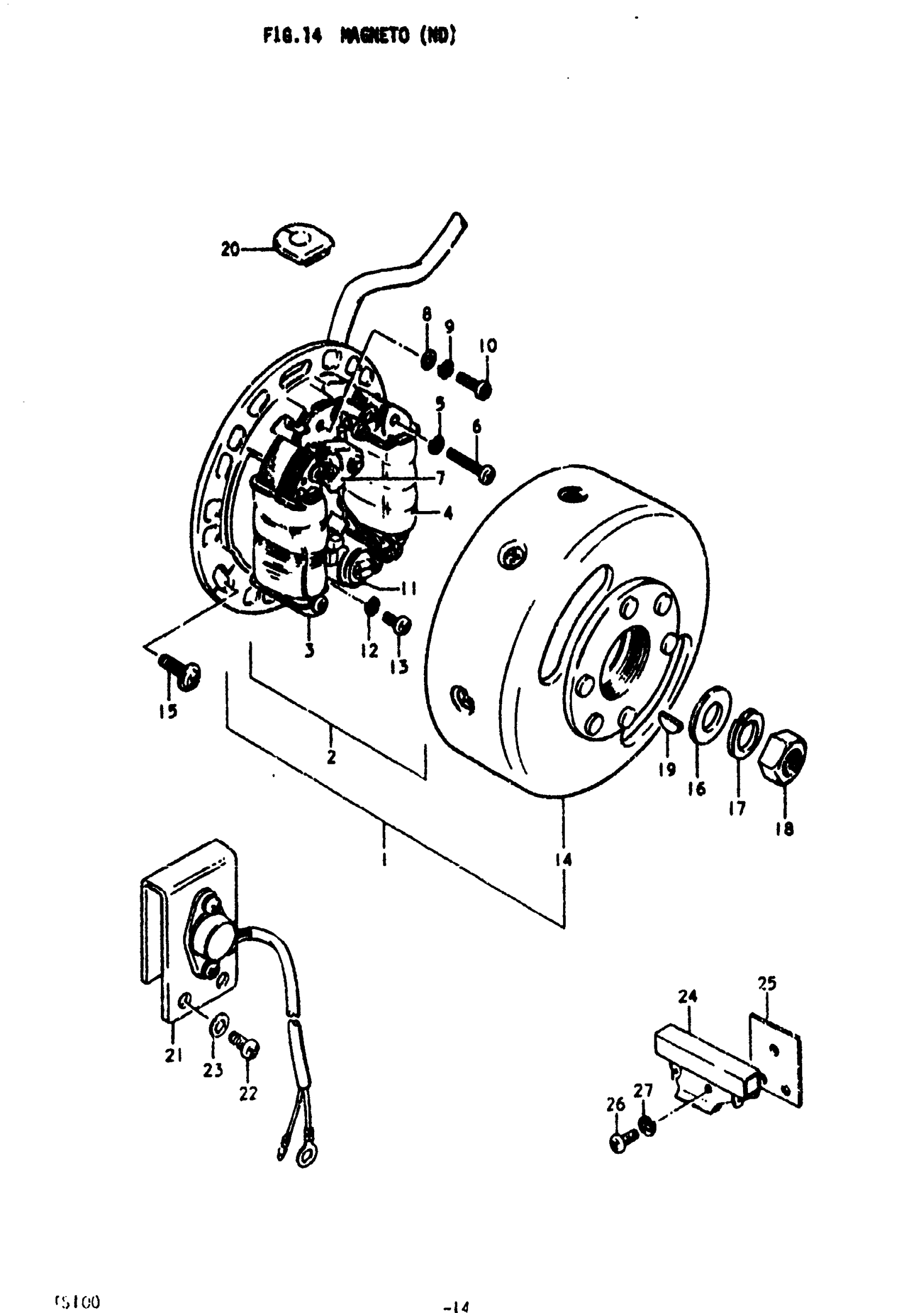

Suzuki TS100 (1979) MAGNETO (ND) Diagram

#

Description
Price

1

STATOR ASSY | Includes Item(s) 2 - 14 This part replaces 32100-48600.

32101-48610

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 32101-48600.

32101-48601

Unavailable

3

COIL, LIGHTING

32120-48600

Unavailable

4

COIL, PRIMERY

32140-48600

Unavailable

5

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.86

6

SCREW This part replaces 02112-04258.

02112-0425B

$2.37

7

POINT ASSY, CONTACT

32240-43012

$43.40

8

WASHER This part replaces 08322-21048.

08322-01047

$1.88

9

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.86

10

SCREW

09125-04001

Unavailable

11

CONDENSER

32341-43012

Unavailable

12

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.86

13

SCREW This part replaces 02112-04108.

02112-04107

$1.55

14

NO DESCRIPTION AVAILABLE This part replaces 32102-48600.

32102-39131

Unavailable

15

SCREW

09139-05011

$2.58

16

WASHER This part replaces 08322-21108.

08322-01107

$1.88

17

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.83

18

NUT This part replaces 09140-10003.

09140-10041

$2.21

19

KEY

08341-31039

$1.89

20

GROMMET

09309-09007

Unavailable

21

REGULATOR, VOLTAGE This part replaces 32500-27600.

32500-25600

Unavailable

22

SCREW This part replaces 02112-06128.

02112-06127

$1.83

23

WASHER This part replaces 08322-21068.

08322-01067

$1.86

24

RESISTOR, MAGNETO

36510-46110

Unavailable

25

BRACKET, RESISTOR

36511-48600

Unavailable

26

SCREW This part replaces 02112-06108.

02112-06107

$1.45
