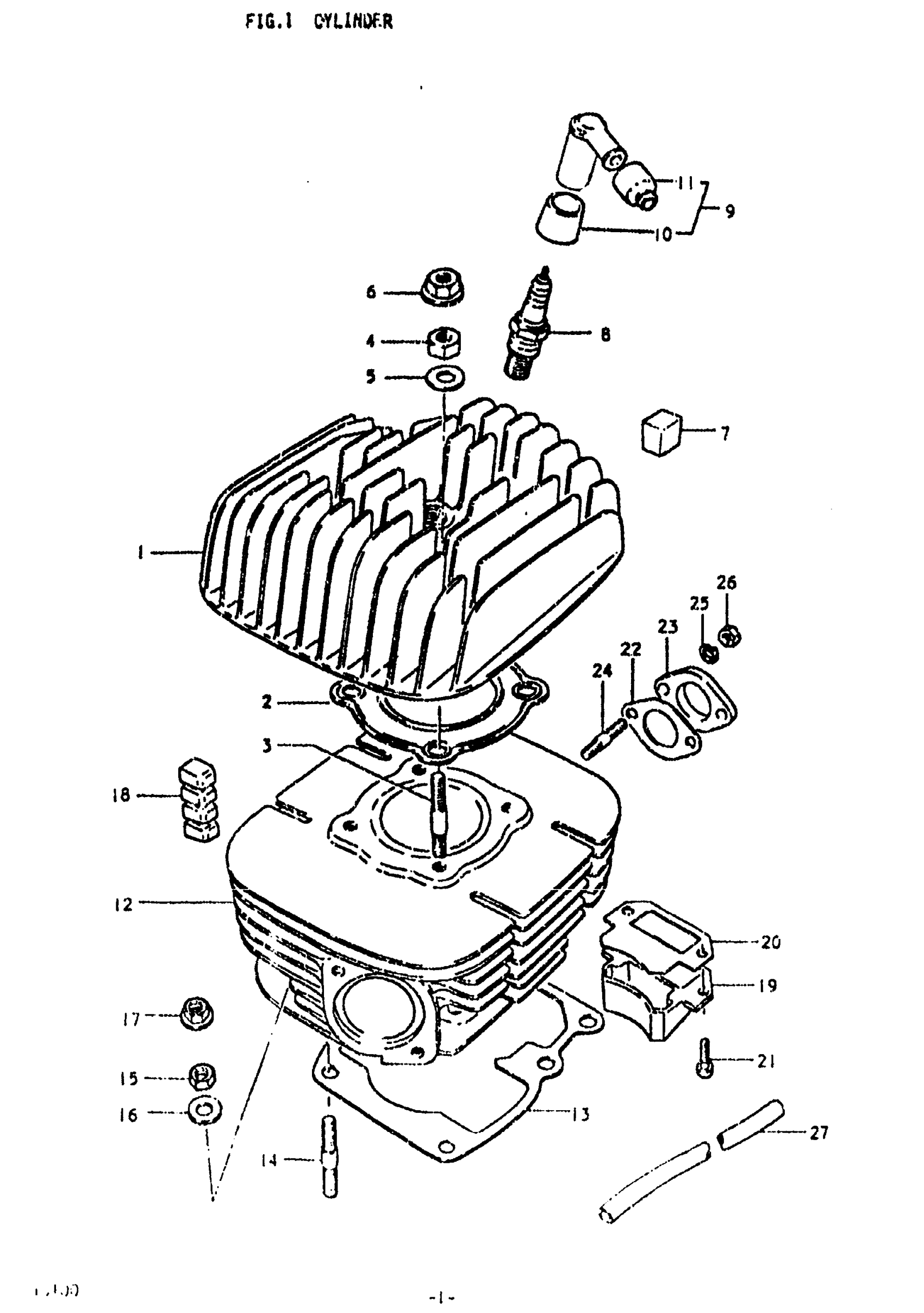

Suzuki TS100 (1979) CYLINDER Diagram

CYLINDER HEAD This part replaces 11111-48102.

11111-48103

Unavailable

GASKET,CYL HEAD This part replaces 11141-48111.

11141-48121

Unavailable

GASKET,CYL HEAD | 65~ This part replaces 11141-48120.

11141-48121

Unavailable

STUD BOLT This part replaces 01421-08358.

01421-0835A

$2.31

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.12

WASHER This part replaces 08322-21088.

08322-01087

$1.86

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.24

NO DESCRIPTION AVAILABLE This part replaces 11251-29300.

11251-30530

Unavailable

SPARK PLUG

09482-00091

$2.80

SPARK PLUG W24E This part replaces 09482-00092.

09482-00247-111

Unavailable

CAP SET,SPARK P | Includes Item(s) 10 - 11 This part replaces 33500-69810.

33500-69811

Unavailable

SEAL, SPARK PLUG

33541-69010

$4.11

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$3.97

CYLINDER This part replaces 11210-48100.

11210-48103

Unavailable

CYLINDER | 65~ This part replaces 11210-48101.

11210-48103

Unavailable

GASKET, CYLINDE This part replaces 11241-41300.

11241-41321

$10.28

BOLT,STUD This part replaces 01421-08258.

01421-0825A

$2.01

NUT This part replaces 08310-12088.

08310-00087

$1.83

WASHER This part replaces 08322-21088.

08322-01087

$1.86

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.24

RUBBER PAD (N9->4) This part replaces 11251-48000.

11251-36500

$6.14

VALVE ASSY, REE This part replaces 13150-48010.

13150-48700

Unavailable

GASKET,REED VAL This part replaces 13156-41100.

13156-41100-H17

$3.24

SCREW This part replaces 02112-06208.

02112-06207

$1.77

GASKET,CARBURET This part replaces 13125-11000.

13125-11000-H17

$2.42

INSULATOR, CARBURETOR

13129-48000

$12.50

STUD BOLT (L:30) This part replaces 01421-08308.

09108-08142

$2.87

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

NUT This part replaces 08310-12088.

08310-00087

$1.83
