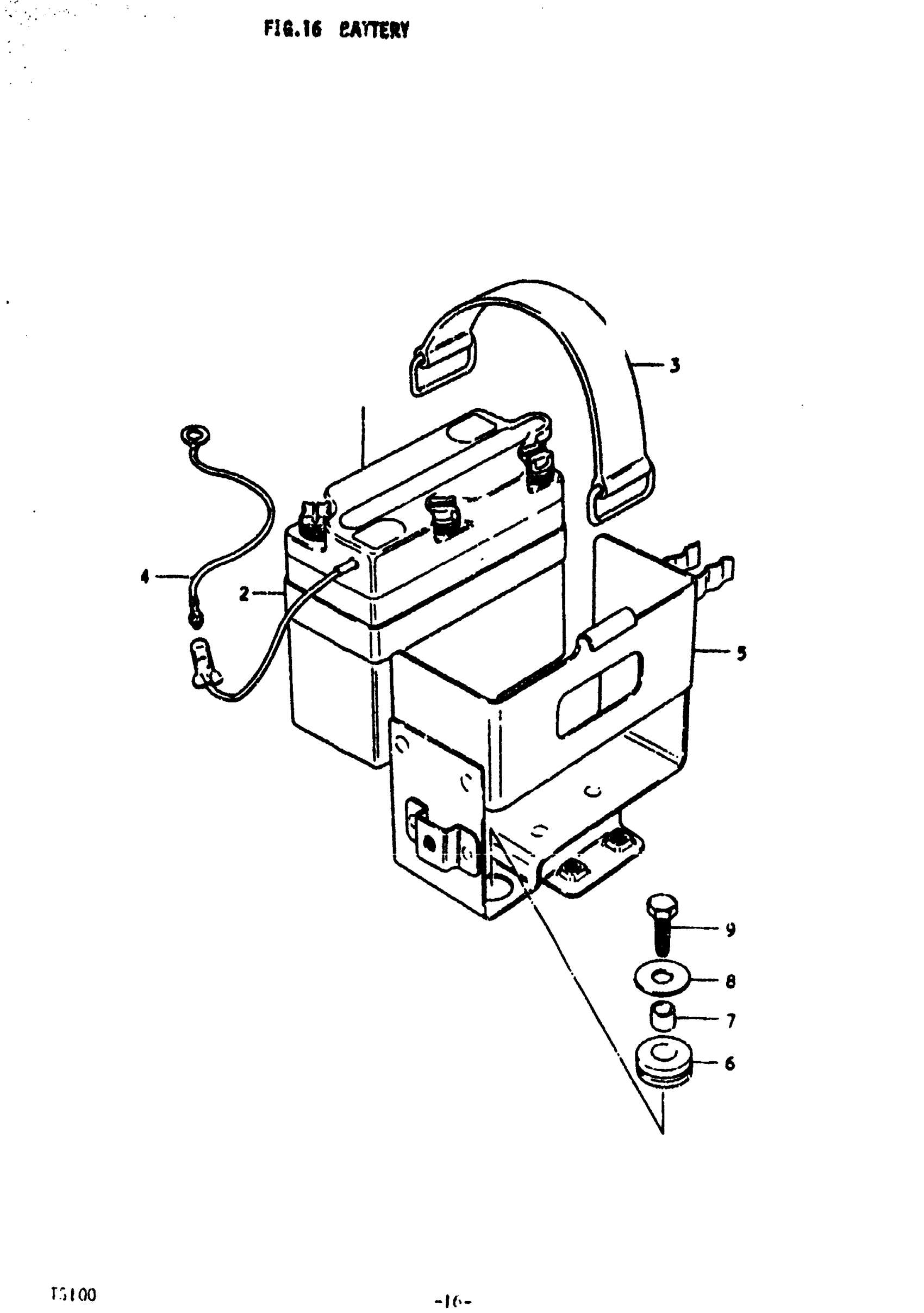

Suzuki TS100 (1979) BATTERY Diagram

#

Description

Price

1

6N4B-2A BATTERY This part replaces 33610-03610.

33610-03611

$85.70

2

PROTECTOR

33651-30000

Unavailable

3

BAND

09462-00043

$3.71

4

LEAD WIRE, BATTERY (-)

36862-27690

$5.88

5

HOLDER, BATTERY

41540-48001

Unavailable

6

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.70

7

SPACER (6.5X9X7) This part replaces 09180-07005.

09180-06259

$2.46

8

WASHER (6.5X20X1.2) | 2 This part replaces 09160-06027.

09160-06077

$1.89
