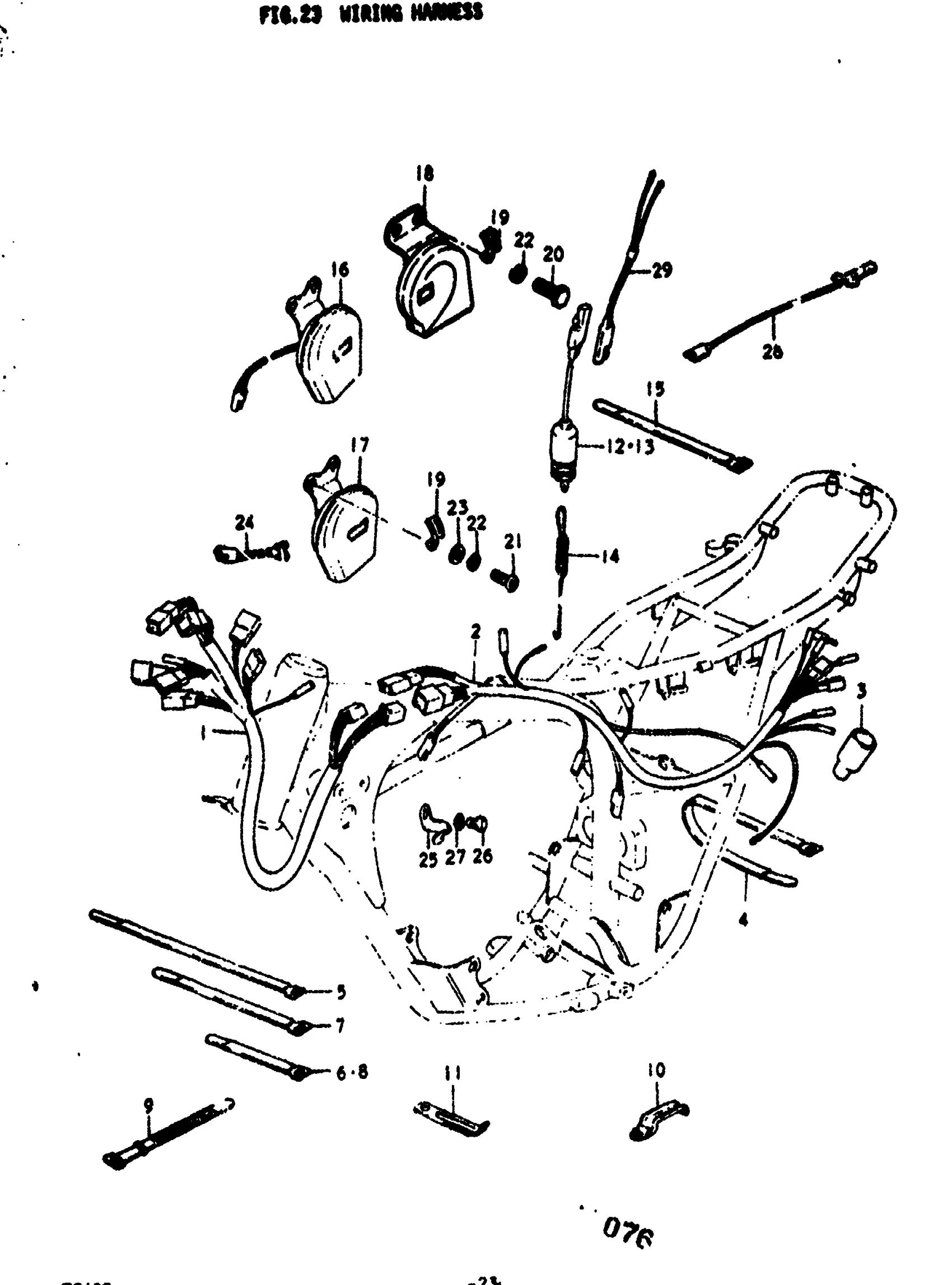

Suzuki TS100 (1977) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS (1) | K; TO 36610-25621

36610-25620

Unavailable

1

WIRING HARNESS (1) | L; TO 36610-25622 This part replaces 36610-25621.

36610-25626

Unavailable

1

WIRING HARNESS (1) | M

36610-25622

Unavailable

1

WIRING HARNESS (1) | A This part replaces 36610-25625.

36610-25626

Unavailable

1

WIRING HARNESS (1) | B

36610-25626

Unavailable

2

WIRING HARNESS (2) | K,L; TO 36620-25710

36620-25620

Unavailable

2

WIRING HARNESS (2) | M This part replaces 36620-25622.

36620-25624

Unavailable

2

WIRING HARNESS (2) | A,B

36620-25624

Unavailable

3

BOOT | K This part replaces 36618-28000.

36618-30000

$9.00

4

CLAMP(L:250) This part replaces 09407-25301.

09407-25302

Unavailable

5

CLAMP | K,B; L:180L,M,A; L:180 This part replaces 09407-18301.

09407-18302

$2.28

5

CLAMP, WIRING HARNESS | L,M,A; L:210

09407-21301

Unavailable

6

CLAMP | K,L,MA This part replaces 09407-09301.

09407-09303

$1.93

7

CLAMP | K,L,M,AB This part replaces 09407-11302.

09407-18302

$2.28

8

CLAMP | B This part replaces 09403-09307.

09403-09328

$1.77

9

CLAMP, WIRING HARNESS | K,L,M,AB

09407-12402

$3.04

10

CLAMP | B This part replaces 09403-07301.

09403-07309

Unavailable

11

CLAMP | B This part replaces 09404-05402.

09404-06039

$1.74

12

SWITCH ASSY, BRAKE LAMP | K,L; TO 37740-37051 This part replaces 37740-25310.

37740-37051

Unavailable

13

SWITCH ASSY, BRAKE LAMP | M,A,B

37610-53011

$30.75

14

SPRING

09443-06019

$3.42

15

CLAMP This part replaces 09407-11302.

09407-18302

$2.28

16

HORN | K,L; TO 38500-25331

38500-25330

Unavailable

17

HORN | M; USE FOR 36870-35030

38500-25331

Unavailable

18

HORN | A

38500-25332

Unavailable

19

CLAMP | K,L,M,A This part replaces 09403-07301.

09403-07309

Unavailable

20

BOLT | A This part replaces 01112-06108.

01500-06107

$2.06

20

BOLT | B This part replaces 01131-06128.

01500-06127

$1.97

21

SCREW | K,L,M This part replaces 02112-06128.

02112-06127

$1.84

22

LOCK WASHER | K,L,M,A This part replaces 08321-21068.

08321-01067

$2.13

23

WASHER | B This part replaces 08322-21068.

08322-01067

$2.13

24

LEAD WIRE, HORN | M,A

36870-25030

Unavailable

25

CLAMP | M,A

51453-05110

Unavailable

26

BOLT | M,A This part replaces 01112-06108.

01500-06107

$2.06

27

LOCK WASHER | M This part replaces 08321-21068.

08321-01067

$2.13

28

LEAD WIRE, DC LIGHTING | A,B

36811-27610

Unavailable

29

LEAD WIRE, BRAKE LAMP | K,L,M

36852-25700

Unavailable
