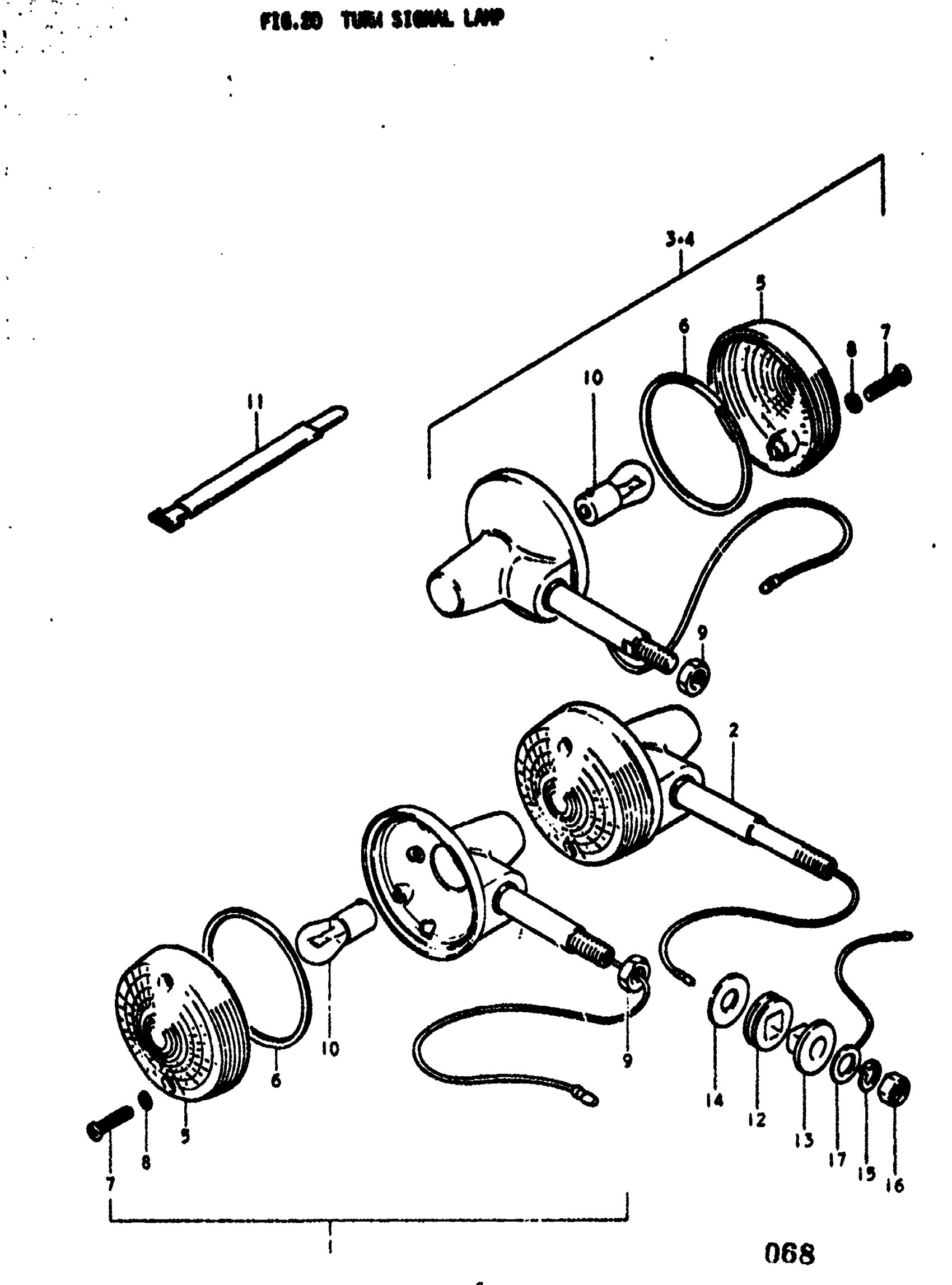

Suzuki TS100 (1977) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, TURN SIGNAL FRONT | K,L,M This part replaces 35601-27630.

35601-27630-999

Unavailable

2

LAMP ASSY,RR TR | K,L,M; Includes Item(s) 3 - 7 This part replaces 35603-16611.

35603-27670-999

Unavailable

3

LENS, FRONT | K,L,M

35612-12611

$12.50

4

GASKET, LENS | K,L,M

35613-03610

$13.34

5

SCREW | K,L,M This part replaces 02133-03167.

02132-03167

$1.49

6

NUT | K,L,M This part replaces 08312-32108.

08310-00107

$2.19

7

BULB | K,L,M; 6V, 21OP

09471-06011

Unavailable

8

RELAY, TURN SINGAL | K; TO 38610-25610

38610-25990

Unavailable

8

RELAY, TURN SIGNAL | L,M,A,B

38610-25610

Unavailable

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

BOLT | 6x14 This part replaces 09100-06026.

09100-06067

Unavailable

11

LEAD WIRE, TURN SIGNAL ( - )

36862-27690

$5.20

12

WASHER | K,L,M,A This part replaces 08322-21108.

08322-01107

$2.15

13

COVER, BOSS | K,L,M,A

35698-28000

Unavailable

14

BRACKET, TURN SIGNAL LAMP REAR

41640-25600

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 01221-10257.

01204-10257

Unavailable

16

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

17

WASHER | 10.5x24x3.2 This part replaces 09160-10033.

09160-10128-XC0

$2.62

18

CLAMP | K,L,M,A This part replaces 09407-11302.

09407-18302

$2.28
