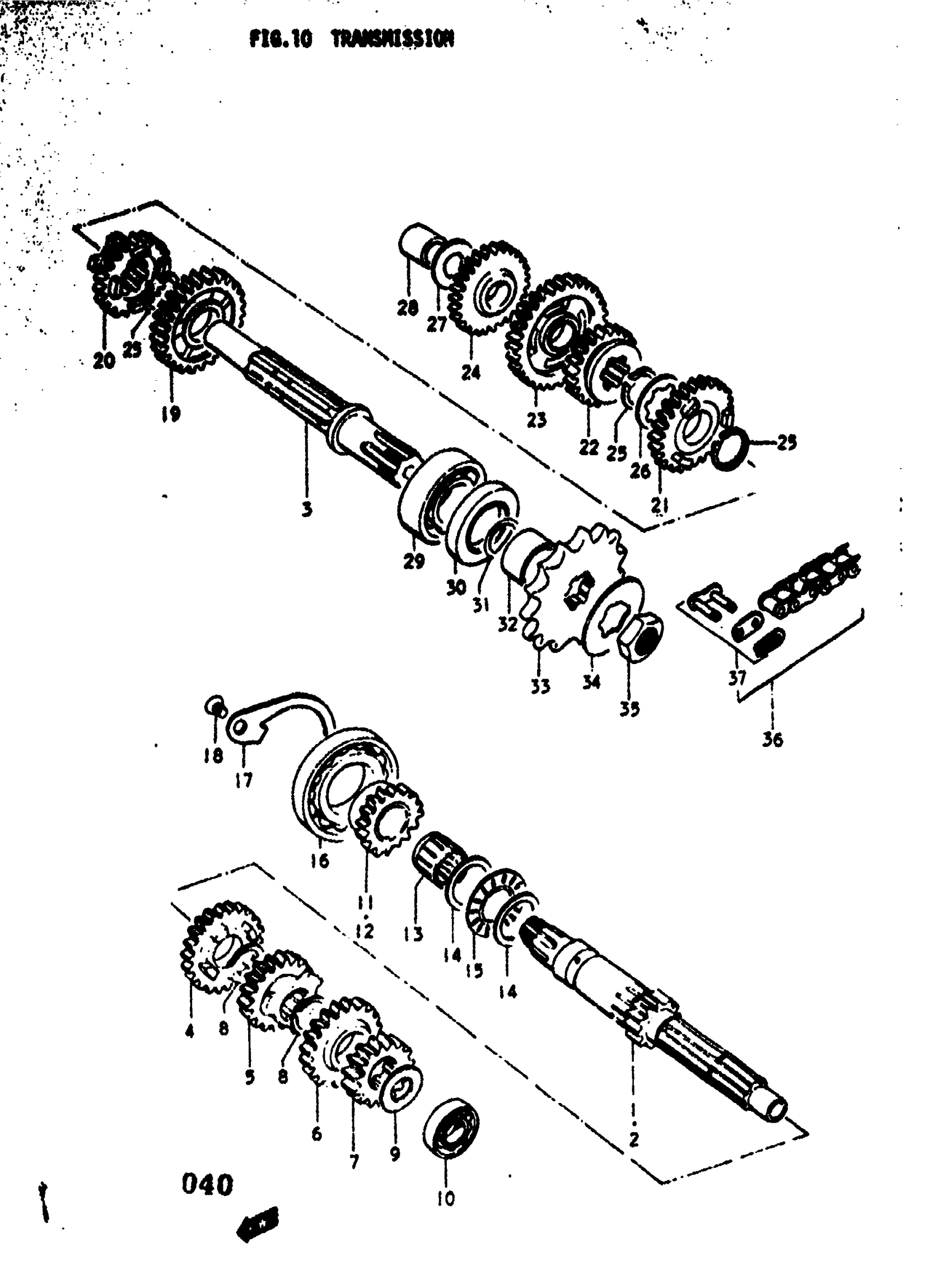

Suzuki TS100 (1977) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER | K,L; NT:11, L:179.5 This part replaces 24121-25001.

24121-25002

Unavailable

2

SHAFT, COUNTER | L,M,A,B; USE FOR 26281-25000

24121-25002

Unavailable

3

SHAFT, DRIVE

24131-25000

Unavailable

4

GEAR, 5TH DRIVE | NT:23

24251-25001

Unavailable

5

GEAR, 3RD DRIVE | NT:18

24231-25000

Unavailable

6

GEAR, 4TH DRIVE | NT:20

24241-25000

Unavailable

7

GEAR, 2ND DRIVE | NT:15

24221-25000

Unavailable

8

CIRCLIP, COUNTERSHAFT

09380-17001

$1.98

9

WASHER | 12x20x2

08211-12203

$2.53

10

BEARING, COUNTERSHAFT LH | 12x28x8

09262-12001

$18.47

11

GEAR, KICK STARTER DRIVEN | K,L; NT:16

26280-19000

Unavailable

12

GEAR, KICK STARTER DRIVEN | L,M,A,B

26281-25001

Unavailable

13

BEARING | L,M,A,B

09263-19006

$27.08

14

WASHER, BEARING | 21x30x0.8

09160-21007

$2.92

15

BEARING | K; 21x35x2.8 TO 09263-21006 This part replaces 09263-21004.

09263-21006

$15.48

15

BEARING | L,M,A,B

09263-21006

$15.48

16

BEARING | 30x62x10 This part replaces 09262-30002.

09262-30003

Unavailable

17

PLATE, COUNTER SHAFT BEARING

24741-25000

Unavailable

18

SCREW This part replaces 02122-06108.

02122-0610A

$1.68

19

GEAR, 2ND DRIVEN | NT:28

24321-25001

Unavailable

20

GEAR, 4TH DRIVEN | NT:22

24341-25001

Unavailable

21

GEAR, 3RD DRIVEN | NT:25

24331-25000

Unavailable

22

GEAR, 5TH DRIVEN | NT:20

24351-25001

Unavailable

23

GEAR, 1ST DRIVEN | NT:31

24310-25001

Unavailable

24

GEAR,KICK START | NT:26 This part replaces 26260-23001.

26260-23010

Unavailable

25

CIRCLIP This part replaces 09380-20003.

09380-20007

$2.43

26

LOCK WASHER, LH This part replaces 09167-20007.

09167-20022

Unavailable

27

WASHER | 19x30x1 This part replaces 09160-15016.

08211-15301

$2.45

28

BUSHING, DRIVESHAFT This part replaces 09303-15003.

09303-15004

$5.07

29

BEARING, DRIVE SHAFT LH This part replaces 08113-62040.

09262-20069

$23.28

30

OIL SEAL, DRIVE SHAFT

09283-25035

$6.51

31

O RING, DRIVE SHAFT

09280-20001

$1.65

32

SPACER, ENGINE SPROCKET | 20x25x13.5

09180-20035

Unavailable

33

SPROCKET, ENGINE | NT:13 This part replaces 27511-24900.

27511-24901

Unavailable

33

SPROCKET, ENGINE | M,A,B; NT:13

27511-24901

Unavailable

33

SPROCKET,ENGINE | K,L; NT:14; OPT This part replaces 27511-20700.

27511-13700

Unavailable

33

SPROCKET,ENGINE | M,A,B; NT:14, OPT This part replaces 27511-36200.

27511-13700

Unavailable

33

SPROCKET, ENGINE | K,L; NT:15, OPT This part replaces 27511-20000.

27511-27100

$29.03

33

SPROCKET, ENGINE | M,A,B; NT:15, OPT

27511-27100

$29.03

34

LOCK WASHER | 16.5x38x0.8 This part replaces 09167-20006.

09167-20009

$2.03

35

NUT

09140-20001

$3.37

36

CHAIN, DRIVE (RK428FDZ,124LE) | K,L; #428x112L TO 27600-36011 This part replaces 27600-36010.

27600-29B20-124

Unavailable

36

CHAIN, DRIVE (RK428FDZ,124LE) | M,A,B; Includes Item(s) 37 - 37 This part replaces 27600-36011.

27600-29B20-124

Unavailable

37

JOINT (RK) This part replaces 27620-20210.

27620-40220

$11.07

37

JOINT (DID) | M,A,B; USE FOR 27600-36011 This part replaces 27620-36011.

27620-36012

Unavailable
