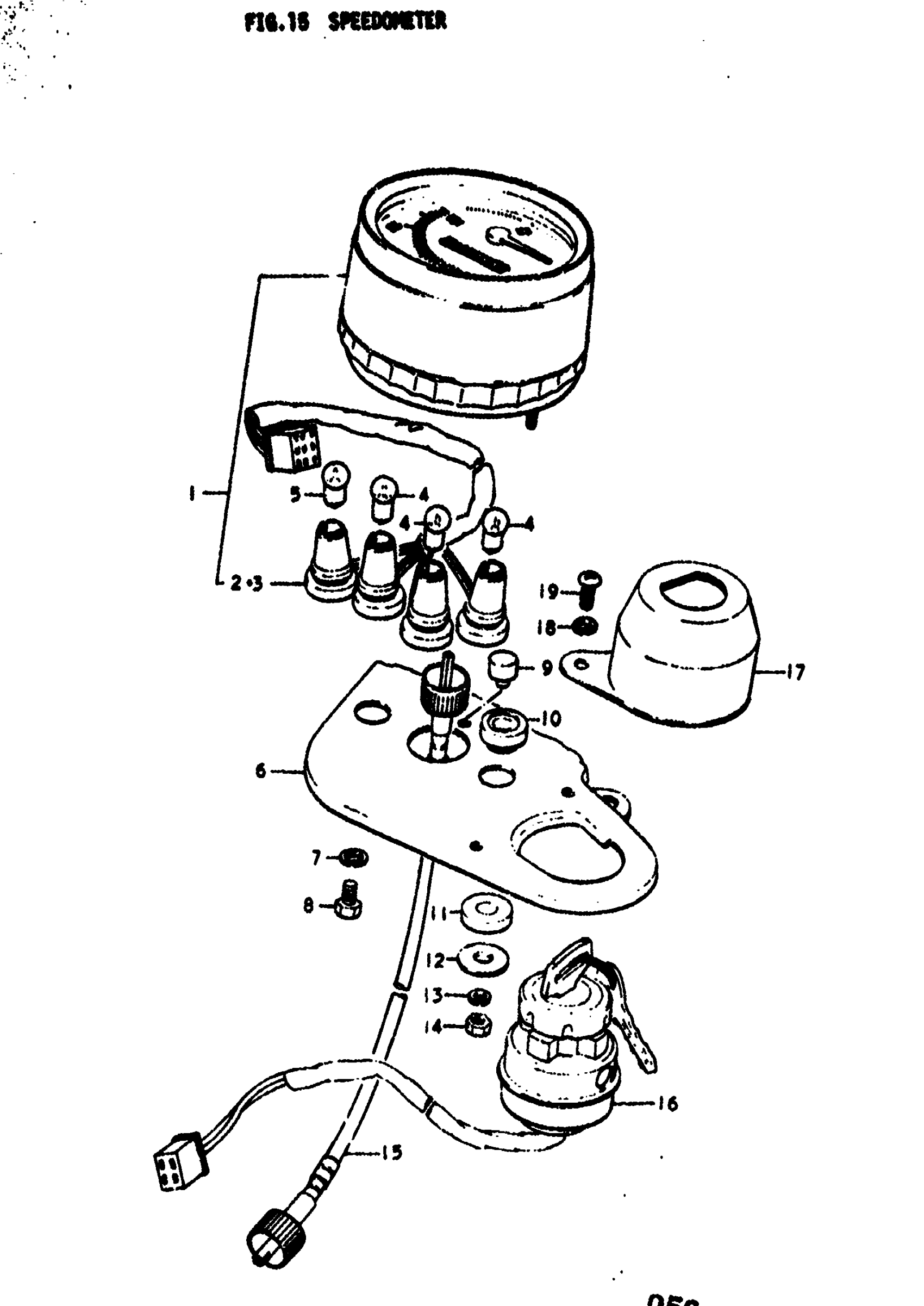

Suzuki TS100 (1977) SPEEDOMETER (TS100K) Diagram

#

Description
Price

1

SPEEDOMETER ASSY | ND; Includes Item(s) 2 - 3

34100-25611-999

Unavailable

2

SOCKET ASSY | NS

34170-25620

Unavailable

3

SOCKET ASSY | ND

34170-25611

Unavailable

4

BULB | 6V, 3.0W

09471-06002

$2.25

5

BULB | 6V, 1.7W

09471-06001

$2.18

6

BRACKET, SPEEDOMETER

34950-25300

Unavailable

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

BOLT This part replaces 01112-06108.

01500-06107

$2.06

9

CUSHION, SPEEDOMETER REAR

34957-05100

Unavailable

10

CUSHION, SPEEDOMETER UPPER

34955-20000

Unavailable

11

CUSHION This part replaces 09320-08004.

09320-08010

$1.99

12

WASHER | 5.5x18x1.6

09160-05024

$1.78

13

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

14

NUT This part replaces 08311-11058.

08310-00057

$1.84

15

CABLE ASSY, SPEEDOMETER | L:845 This part replaces 34910-25230.

34910-21230

Unavailable

16

SWITCH ASSY, IGNITION | TO 37110-25312 This part replaces 37110-25310.

37110-25319

$97.62

17

BRACKET, IGNITION SWITCH

37115-25300

Unavailable

18

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

19

SCREW

02112-05107

$1.49
