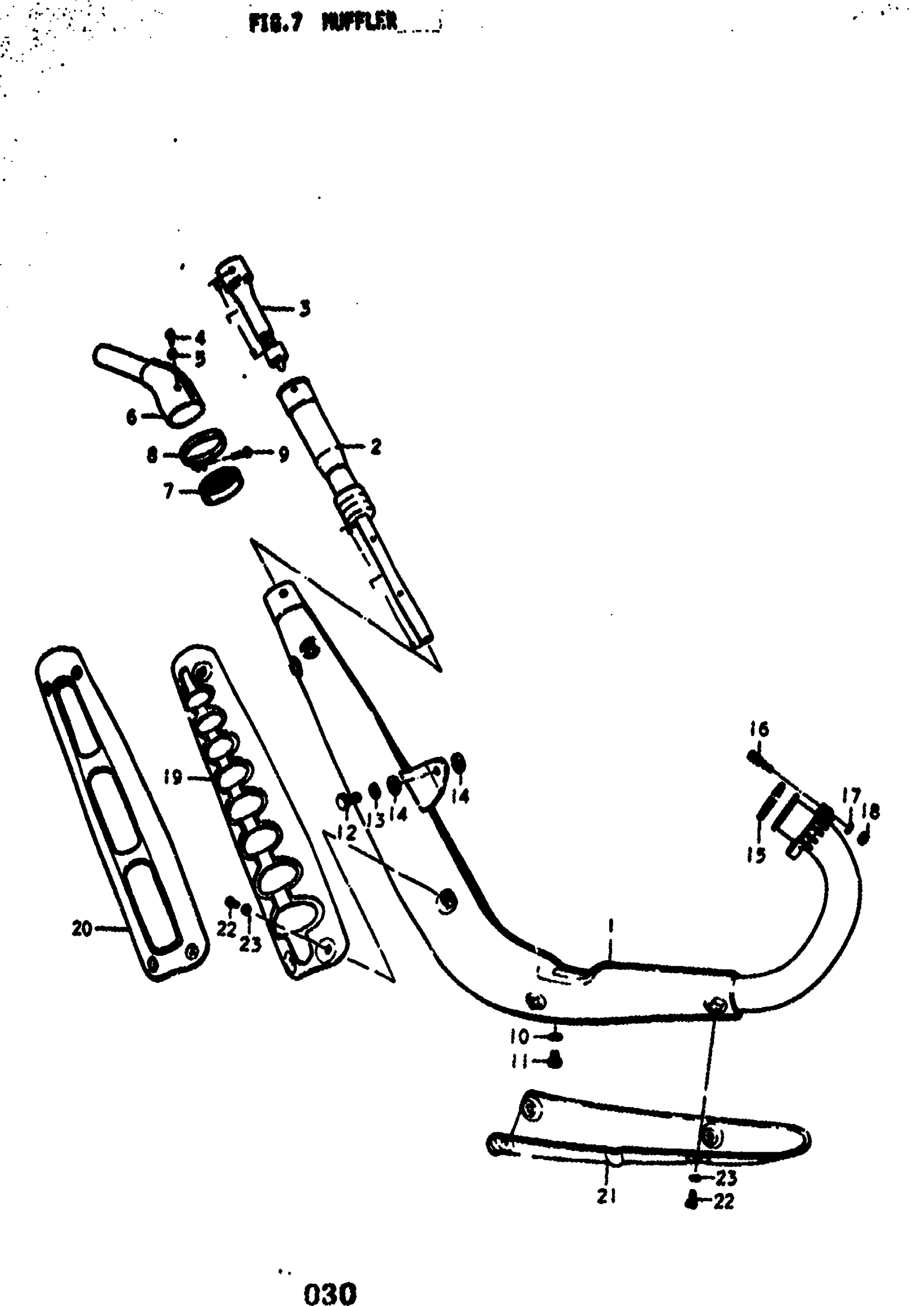

Suzuki TS100 (1977) MUFFLER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | FROM 14301-25611; Includes Item(s) 2 - 5 This part replaces 14301-25612.

14301-25612-H01

Unavailable

2

ARRESTER, SPARK | K; L:222

14810-25610

Unavailable

2

ARRESTER, SPARK | L:181

14810-25612

Unavailable

3

TUBE, CLEAN OUT | K; L:115

14850-25610

Unavailable

3

TUBE, CLEAN OUT | L:156

14850-26100

Unavailable

4

SCREW This part replaces 02112-06128.

02112-06127

$1.84

5

GASKET, BEFFLE PIPE

09168-06006

Unavailable

6

PIPE, MUFFLER TAIL | K; TO 14630-25301

14630-25300

Unavailable

6

PIPE, MUFFLER TAIL | L,M,A,B

14630-25301

Unavailable

7

GASKET, MUFFLER TAIL PIPE

14634-25300

Unavailable

8

CLAMP, MUFFLER TAIL PIPE

09402-52601

Unavailable

9

SCREW This part replaces 02112-06258.

02112-06257

$1.78

10

GASKET, DRAIN PLUG | 10x14.2x2

09168-10002

$2.13

11

BOLT(10X9) | 10x9 This part replaces 09100-10004.

09128-10002

$1.70

12

BOLT, REAR This part replaces 01122-08208.

01500-08207

$2.53

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

14

WASHER | K,L,M; 8.2x20x1.6

09160-08031

Unavailable

14

WASHER | A,B This part replaces 08322-21088.

08322-01087

$2.13

15

GASKET, EXHAUST PIPE This part replaces 14181-11010.

14181-01D00

$7.11

16

STUD BOLT

09108-06028

Unavailable

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

.NUT This part replaces 08311-11068.

08310-00067

$2.13

19

COVER, MUFFLER | K,L,M This part replaces 14781-25300.

14781-25610

Unavailable

20

COVER, MUFFLER | A,B

14781-25610

Unavailable

21

COVER, MUFFLER UNDER

14782-25300

Unavailable

22

SCREW This part replaces 02111-06087.

02112-06087

$1.49

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
