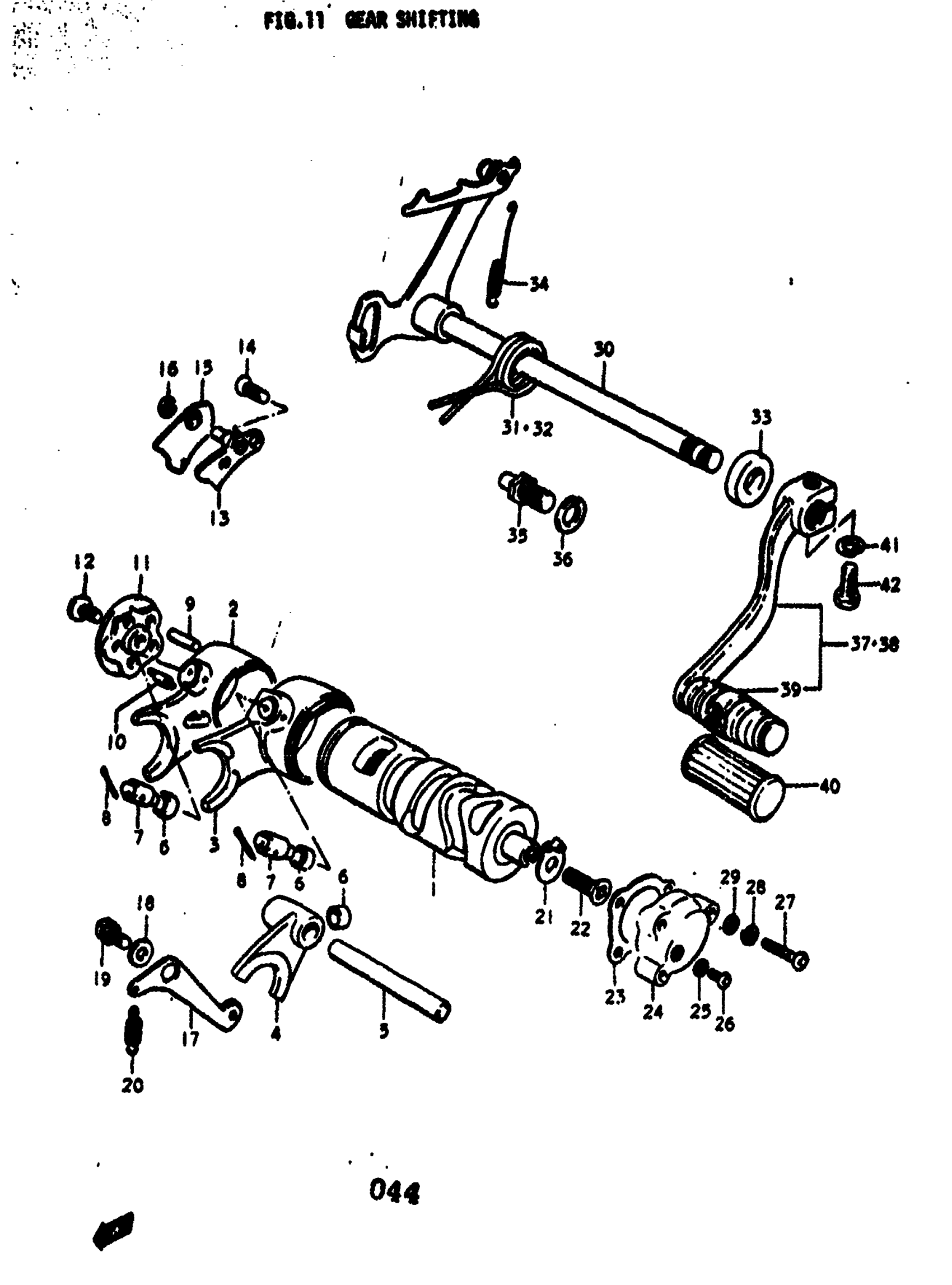

Suzuki TS100 (1977) GEAR SHIFTING Diagram

#

Description
Price

1

CAM, GEAR SHIFTING | K,L

25311-25000

Unavailable

1

CAM, GEAR SHIFTING | M,A,B

25311-25001

Unavailable

2

FORK, GEAR SHIFTING | K,L

25211-25001

Unavailable

2

FORK,GEAR SHIFT | M,A,B This part replaces 25211-28001.

25211-28002

$87.70

3

FORK, GEAR SHIFTING | K,L

25221-25000

Unavailable

3

FORK,GEAR SHIFT | M,A,B This part replaces 25221-28001.

25221-28002

Unavailable

4

FORK, GEAR SHIFTING

25231-25000

Unavailable

5

SHAFT, GEAR SHIFTING

25411-05100

$5.50

6

ROLLER | 6x9.8x6 This part replaces 09180-06004.

09180-06086

$2.50

7

PIN, FORK GUIDE | K,L,M

09209-10003

Unavailable

7

PIN, FORK GUIDE | A,B

09209-10002

Unavailable

8

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

9

PIN, CAM DRIVE

09261-04003

Unavailable

10

PIN, CAM STOPPER | K,L; TO 09209-04012

09209-04003

Unavailable

10

PIN, CAM STOPPER

09209-04012

$2.53

11

PLATE, CAM STOPPER

25380-25030

Unavailable

12

SCREW This part replaces 02122-06208.

02122-0620A

$1.49

13

GUIDE, CAM

25340-12101

Unavailable

14

SCREW This part replaces 02122-06168.

02122-06167

$1.49

15

PAWL, CAM STOPPER | K,L,M,A This part replaces 25370-12100.

25370-12101

Unavailable

15

PAWL, CAM STOPPER | B

25370-12101

Unavailable

16

E RING This part replaces 08332-11058.

08332-1105A

$1.78

17

STOPPER, CAM

25350-12101

Unavailable

18

WASHER | 6.5x16x2.3

09160-06022

Unavailable

19

BOLT

09111-06003

Unavailable

20

SPRING

09443-07003

Unavailable

21

CONTACT, SWITCH | K,L,M This part replaces 37711-05100.

37711-05101

$4.21

21

CONTACT, SWITCH | A,B

37711-05101

$4.21

22

SCREW This part replaces 02122-06128.

02122-06127

$1.84

23

GASKET, SWITCH

37712-01000

$2.22

24

BODY,CHANGE SWI This part replaces 37721-05100.

37721-05101

$10.34

25

WASHER | 3.3x8x0.3 This part replaces 08322-21038.

08322-01037

$1.93

26

SCREW This part replaces 02111-03048.

02112-03047

$2.15

27

SCREW This part replaces 02111-04208.

02112-0420A

$1.49

28

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

29

WASHER This part replaces 08322-21048.

08322-01047

$1.86

30

SHAFT, GEAR SHIFTING

25510-25000

Unavailable

31

SPRING | K,L; TO 09444-26008

09444-26005

Unavailable

32

SPRING | M,A,B

09444-26008

$5.12

33

OIL SEAL (12X22X9) | 12X22X9 This part replaces 09285-12002.

09285-12006

$6.32

34

SPRING

09443-06008

Unavailable

35

STOPPER, ARM

25671-19000

Unavailable

36

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

37

LEVER ASSY, GEAR SHIFTING | K,L; TO 25600-05104 This part replaces 25600-05103.

25600-05104

Unavailable

37

LEVER ASSY, GEAR SHIFTING | M,A

25600-05104

Unavailable

38

LEVER ASSY, GEAR SHIFTING | B; Includes Item(s) 39 - 40 This part replaces 25600-26100.

25600-05104

Unavailable

39

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.74

40

.RUBBER,GEAR SHIFT PEDAL | K This part replaces 25652-03201.

25652-16510

$3.74

41

LOCK WASHER | K,L,M,A This part replaces 08321-21068.

08321-01067

$2.13

42

BOLT This part replaces 01112-06208.

01500-06207

$2.28
