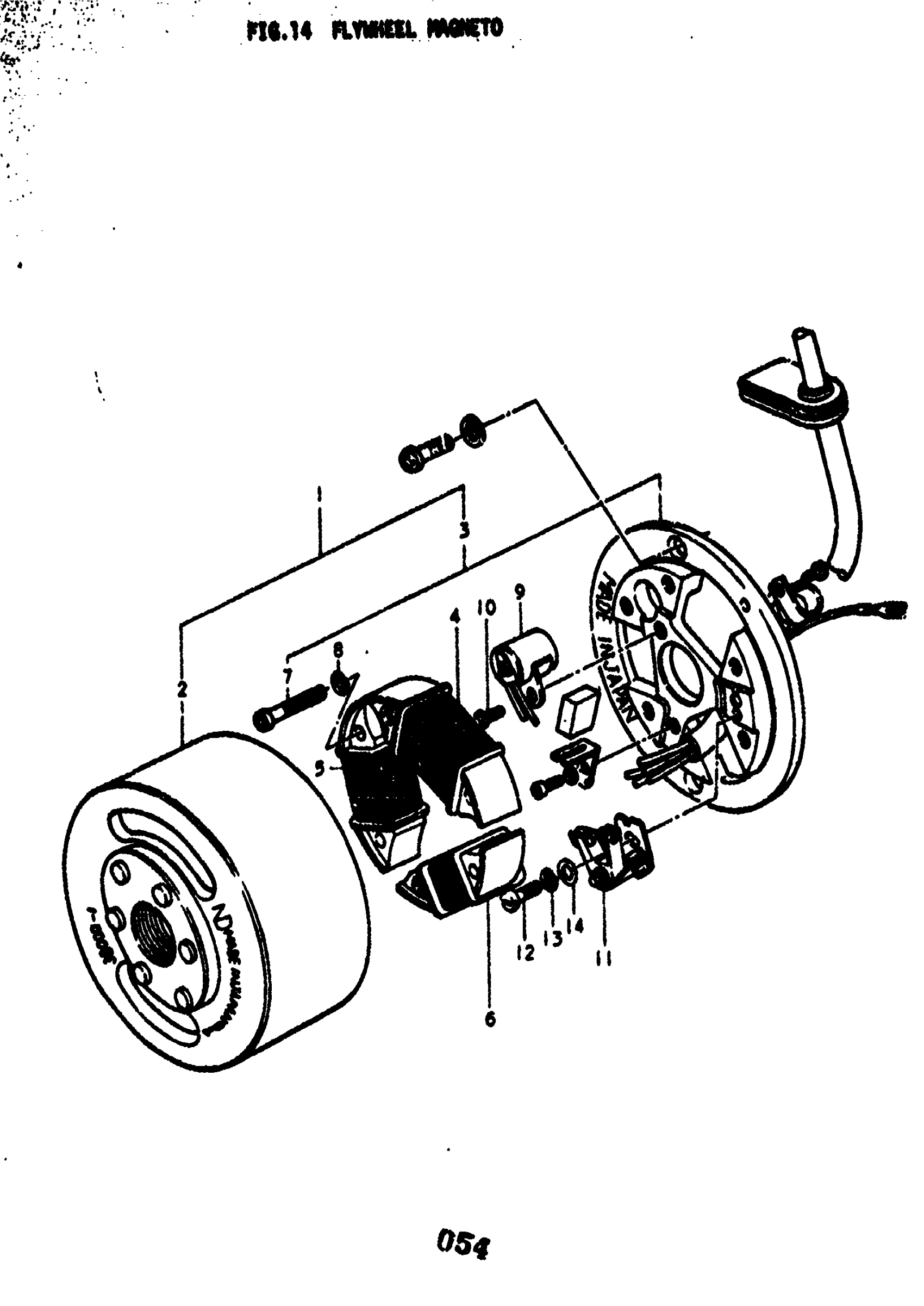

Suzuki TS100 (1977) FLYWHEEL MAGNETO (MADE BY NIPPON DENSO) Diagram

#

Description
Price

1

MAGNETO ASSY | K; TO 32102-25612

32100-25611

Unavailable

1

STATOR ASSY | L,M This part replaces 32100-25612.

32101-25611

Unavailable

1

MAGNETO ASSY | A,B; Includes Item(s) 2 - 14

32100-25613

Unavailable

2

ROTOR | K; TO 32100-25011

32102-25010

Unavailable

2

ROTOR | L,M

32102-25612

Unavailable

2

ROTOR | A,B

32102-25613

Unavailable

3

STATOR ASSY | K,L,M

32101-25611

Unavailable

3

STATOR ASSY | A,B

32101-25612

Unavailable

4

COIL, LIGHTING A | K,L,M

32120-25611

Unavailable

4

COIL, LIGHTING A | A,B

32130-25612

Unavailable

5

COIL, LIGHTING B | K,L,M

32130-25611

Unavailable

5

COIL, LIGHTING B | A,B

32130-25612

Unavailable

6

COIL, PRIMARY | K,L,M

32140-25611

Unavailable

6

COIL, PRIMARY | A,B

32140-25612

Unavailable

7

SCREW

02111-04258

Unavailable

8

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

9

CONDENSER | K,L,M,A This part replaces 32341-12010.

32341-12011

Unavailable

9

CONDENSER | B

32341-12011

Unavailable

10

SCREW This part replaces 02111-04107.

02112-04107

$1.55

11

CONTACT POINT This part replaces 32240-28010.

32240-43012

$38.45

12

SCREW This part replaces 02311-04108.

02112-0410A

$1.49

13

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

14

WASHER This part replaces 08322-21048.

08322-01047

$1.86
