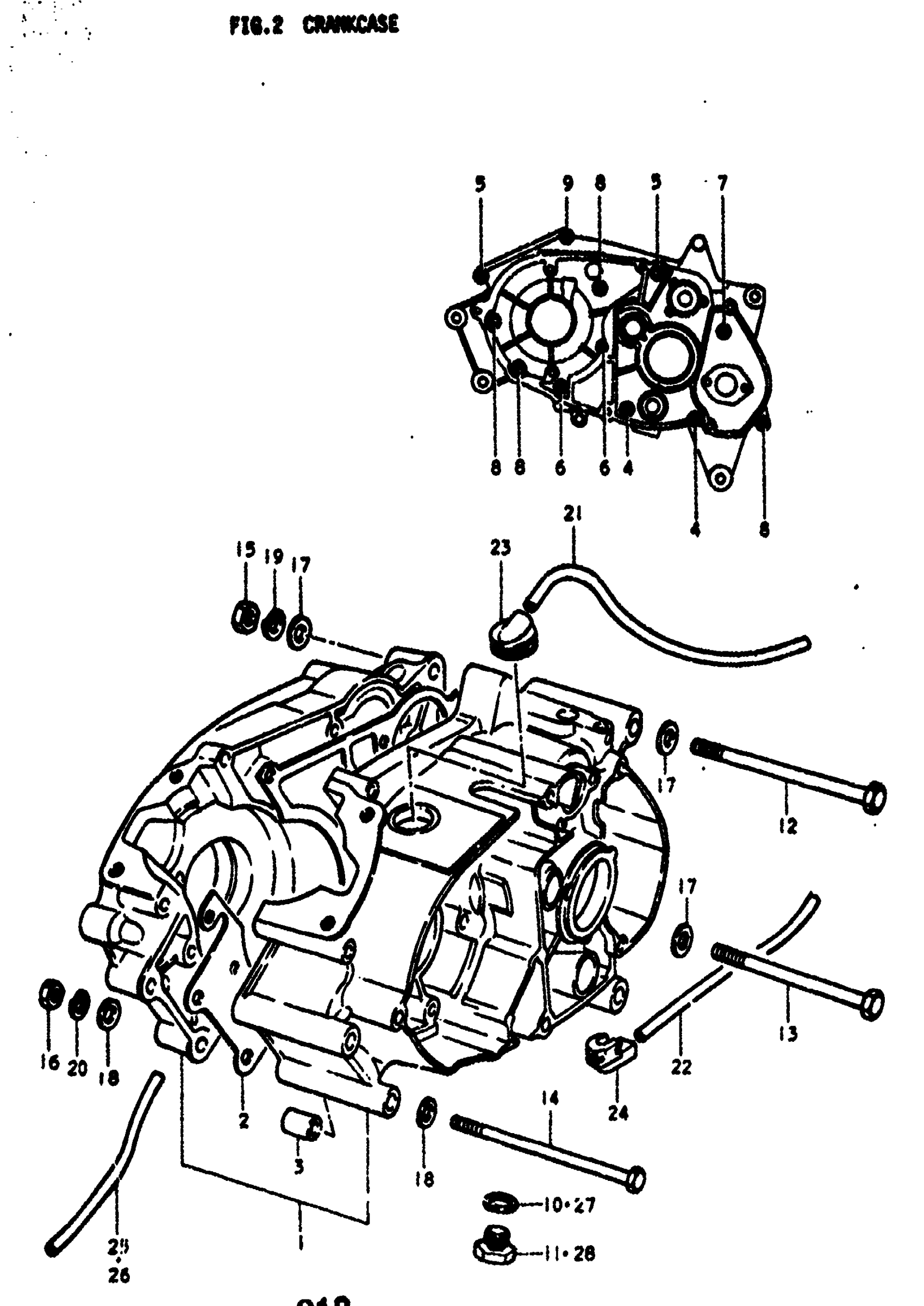

Suzuki TS100 (1977) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | K,L; TO 11300-25850

11301-25832

Unavailable

1

CRANKCASE SET | M This part replaces 11300-25850.

11300-25872

Unavailable

1

CRANKCASE SET | A

11300-25870

Unavailable

1

CRANKCASE SET | B; Includes Item(s) 2 - 11

11300-25872

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 11481-25300.

11481-25301

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW This part replaces 02112-06808.

02112-06807

$2.57

5

SCREW This part replaces 02112-06708.

02112-06707

$2.53

6

SCREW

02112-06557

$2.53

7

6X50 CROSS SCRE | K,L,M This part replaces 02112-06508.

02112-06507

$1.99

8

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

9

SCREW This part replaces 02112-06358.

02112-06357

$1.78

10

GASKET, DRAIN PLUG | M,A,B

09168-10002

$2.13

11

PLUG, DRAIN | M,A,B

09247-10001

$2.20

12

BOLT | 10x120 This part replaces 09100-10060.

09116-10032

$5.77

13

BOLT, ENGINE MOUNTING | 10x105

09100-10059

Unavailable

14

BOLT | 8x115 This part replaces 09100-08027.

09116-08064

$6.28

15

NUT This part replaces 08312-12108.

08310-00107

$2.19

16

NUT This part replaces 08312-11088.

08310-00087

$2.13

17

WASHER | K,L,M,A This part replaces 08322-11108.

08322-01107

$2.15

18

WASHER | K,L,M,A This part replaces 08322-11086.

08322-0108A

$1.92

19

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

21

HOSE | K,L,M,A; 5x8.2x350 This part replaces 09343-05016.

09352-50005-00B

$13.93

21

HOSE (5X8X2000) | B This part replaces 09344-05014.

09351-50803-00B

$9.10

22

HOSE,5X10X600 | K,L,M,A; 5x8.2x220 This part replaces 09343-05031.

44421-13ER0

$10.06

22

HOSE (5X8X2000) | B This part replaces 09344-05005.

09351-50803-00B

$9.10

23

GROMMET

09309-07008

Unavailable

24

GROMMET

09309-07009

Unavailable

25

HOSE, CARBRETOR OVER FLOW | K

09343-05071

Unavailable

26

HOSE, CARBURETOR OVER FLOW | L,M,A

09343-05057

Unavailable

26

HOSE (5X8X2000) | B This part replaces 09344-05005.

09351-50803-00B

$9.10

27

GASKET, DRAIN PLUG | K,L; 15.7x19.5x2

09168-14004

$1.83

28

PLUG (MAGNETO) | K,L This part replaces 09247-14001.

09247-14002

$5.24
