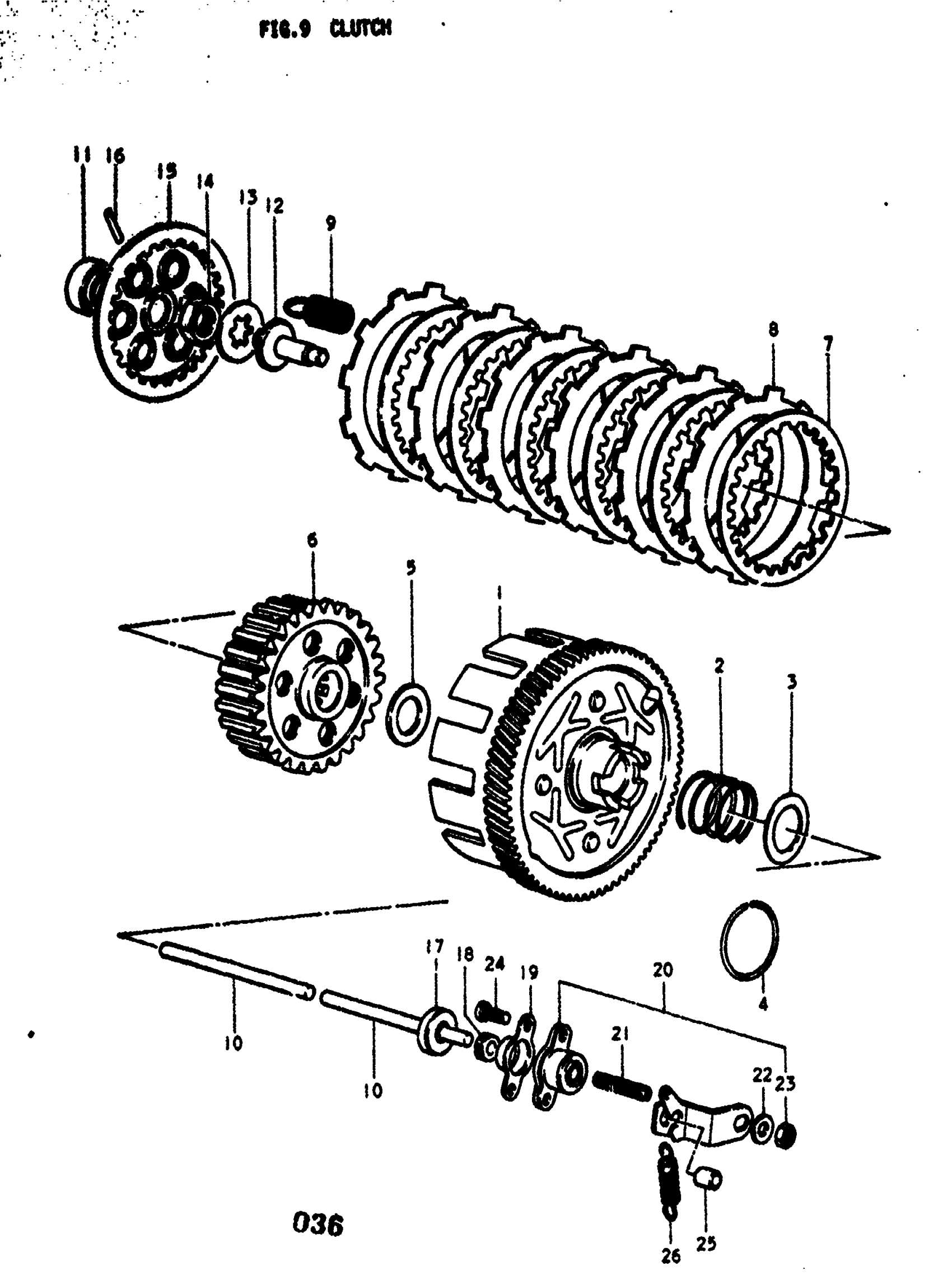

Suzuki TS100 (1977) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | K; TO 21200-25001

21200-25000

Unavailable

1

GEAR ASSY, PRIMARY DRIVEN | L,M,A; NT:73 This part replaces 21200-25840.

21200-25002

Unavailable

1

GEAR ASSY, PRIMARY DRIVEN | B

21200-25002

Unavailable

2

SPRING, DRIVAN GEAR | K,L,M,A

09440-32001

Unavailable

3

SHIM, DRIVEN GEER | K,L,M,A

08221-30385

Unavailable

4

CLIP, DRIVEN GEAR | A,B; FROM 09401-25401

09380-30001

Unavailable

5

WASHER | 17x28x1,5

08211-17282

$2.70

6

HUB, CLUTCH SLEEVE

21411-25300

Unavailable

7

PLATE, DRIVEN This part replaces 21451-25300.

21451-23000

$9.27

8

PLATE,CLUTCH DR This part replaces 21441-12000.

21441-42G00

$17.17

9

SPRING, CLUTCH

09443-12010

$2.45

10

ROD, PUSH

23111-12000

$6.47

11

OIL SEAL, PUSH PIECE

09284-10002

$2.90

12

PUSH PIECE

23121-14000

Unavailable

13

WASHER, SIEEVE HUB

09167-17002

$1.91

14

NUT This part replaces 09140-16001.

09140-16005

$3.75

15

PLATE, CLUTCH PRESSURE

21460-23000

Unavailable

16

PIN, SPRING

09261-02001

$1.56

17

SEAL OIL(5.5X16 This part replaces 09285-05004.

09285-05007

$4.47

18

DUST SEAL, RELEASE SCREW

09281-05001

$1.78

19

COVER, RELEASE SCREW

23241-23000

$11.95

20

RELEASE SCREW ASSY, CIUTCH | Includes Item(s) 21 - 23

23200-25000

Unavailable

21

SCREW This part replaces 09134-06001.

09134-06010

$3.12

22

WASHER | 6.5x16x1.2

09160-06019

$1.49

23

.NUT This part replaces 08311-31068.

08310-00067

$2.13

24

SCREW This part replaces 02112-05168.

02112-05167

$1.97

25

PIECE, RELEASE ARM ENJ

23222-07000

$4.52

26

SPRING, RELEASE RETURN

09443-08001

$2.92
