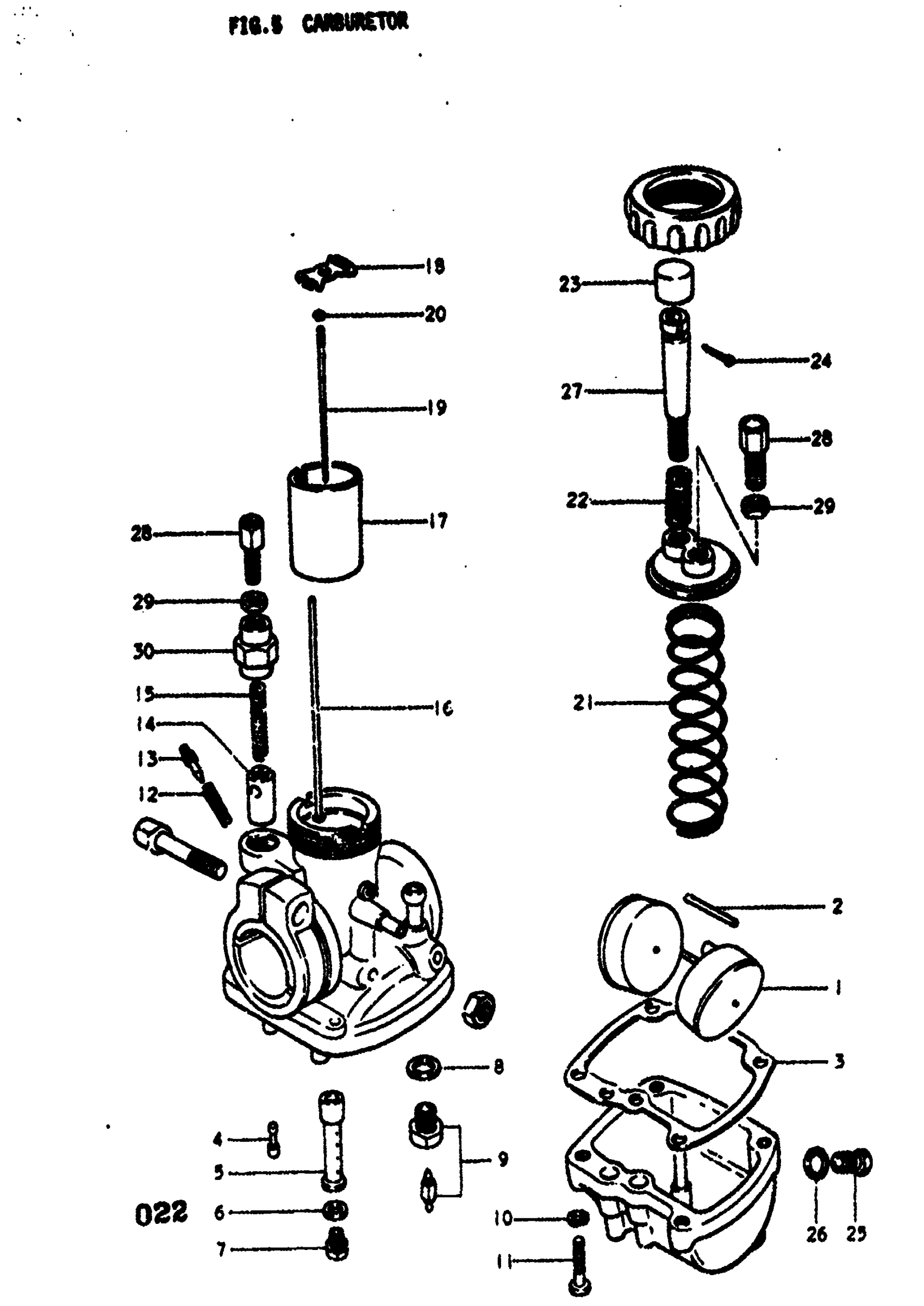

Suzuki TS100 (1977) CARBURETOR Diagram

#

Description
Price

0

CARBURETRO ASSY | K,L,M,A This part replaces 13200-25311.

13200-25312

Unavailable

0

CARBURETRO ASSY | B; Includes Item(s) 1 - 30

13200-25312

Unavailable

1

FLOAT

13252-08210

Unavailable

2

PIN, FLOAT | TO 13254-35013

13254-11010

Unavailable

3

GASKET, FLOAT CHAMBER

13251-09211

$5.58

4

JET, PILOT (22.5) | #22.5 This part replaces 09492-22002.

09492-22006

$11.38

5

JET, NEEDLE

09494-00114

Unavailable

6

WASHER, NEEDLE JET

13382-03110

$2.80

7

JET, MAIN | K,L,M,A; #190, OPTB; #190, OPT

09491-38001

Unavailable

7

JET, MAIN | K,L,M,A; #200, OPTB; #200, OPT

09491-40005

Unavailable

7

JET, MAIN | #210, OPT

09491-42002

Unavailable

8

GASKET, VALVE SEAT

13392-01010

$2.15

9

VALVE ASSY, NEEDLE

13370-11010

$59.80

10

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

11

SCREW This part replaces 02111-04208.

02112-0420A

$1.49

12

SPRING, PILOT SCREW

13268-01010

$5.28

13

SCREW, PILOT

13269-01010

$14.20

14

VALVE, STARTER

13411-01010

$18.43

15

SPRING, STARTER VALVE

13417-01010

$4.62

16

ROD, THROTTLE STOP

13296-11010

$6.70

17

NO DESCRIPTION AVAILABLE | CA:2.0 TO 13551-25620 This part replaces 13551-25010.

13551-25620

Unavailable

18

SEAT, THROTTLE VALVE SPRING

13581-09210

$6.55

19

NEEDLE, JET

13383-58011

Unavailable

20

E RING This part replaces 13394-12110.

13394-40D00

$5.43

21

SPRING, THROTTLE VALVE

13573-36110

$6.20

22

SPRING, THROTTLE STOP SCREW

13268-05010

$5.67

23

CAP, THROTTLE STOP

13688-08010

$4.43

24

PIN This part replaces 04111-12108.

04111-1210A

$1.50

25

PLUG, DRAIN

13247-05010

$5.11

26

GASKET, DRAIN PLUG

13249-05010

$1.98

27

SCREW, THROTTLE STOP

13267-05010

$14.20

28

ADJUSTER This part replaces 13577-03010.

13577-48110

$8.30

29

NUT, CABLE ADJUSTER

13661-03010

$5.67

30

STARTER PLUNGER This part replaces 13418-03110.

13418-63110

Unavailable
