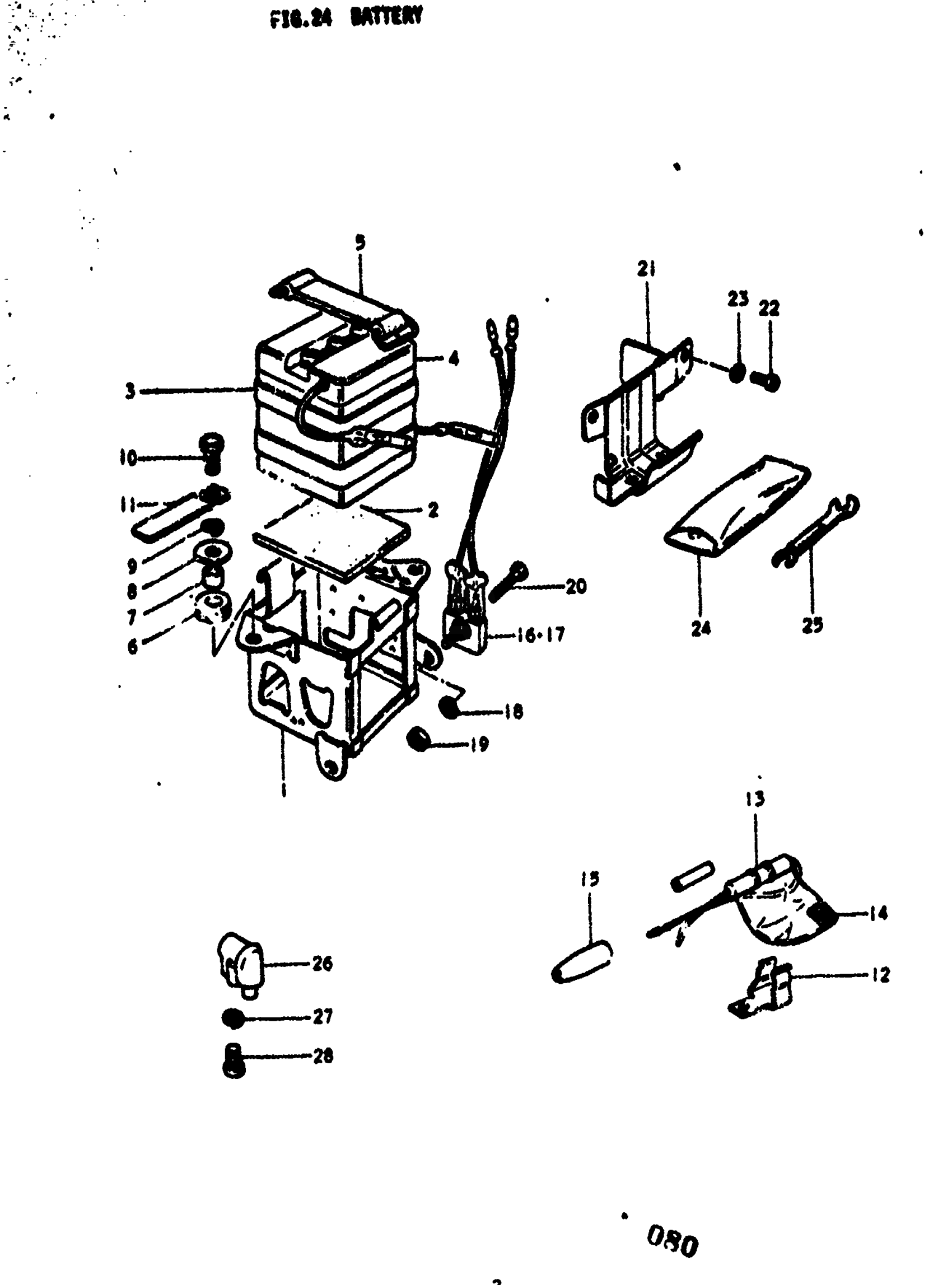

Suzuki TS100 (1977) BATTERY Diagram

#

Description
Price

3

1 K,L,M,B

HOLDER, BATTERY

Unavailable

2

CUSHION, BATTERY

33651-25000

Unavailable

3

PROTECTOR, BATTERY | K,L,M,AB

33651-30000

Unavailable

4

BATTERY | 6V, 4RH

33610-03010

Unavailable

5

BAND, BATTERY

09462-00001

$4.56

6

CUSHION, BATTERY HOLDER

09320-06007

Unavailable

7

SPACER (6.5X9X7) | 7x9x7 This part replaces 09180-07005.

09180-06259

$2.48

8

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

11

CLAMP | K,LM This part replaces 09403-00069.

09404-06037

Unavailable

11

CLAMP | A This part replaces 09404-06402.

09404-06039

$1.74

12

HOLDER, FUSE CASE

36791-25001

Unavailable

13

FUSE CASE ASSY | Includes Item(s) 14 This part replaces 36740-15010.

36740-15011

$9.38

14

FUSE | 15A

09481-15001

$2.06

15

BOOT, FUSE LEAD WIRE | L,M,A,B

09287-10001

Unavailable

16

DIODE | K,L; TO 32800-19061 This part replaces 32800-19060.

32800-16A00

$23.07

17

DIODE | M,A This part replaces 32800-19061.

32800-16A00

$23.07

17

DIODE | B This part replaces 32800-19062.

32800-16A00

$23.07

18

LOCK WASHER | K,L,M This part replaces 08321-21058.

08321-0105A

$1.84

19

NUT This part replaces 08311-11058.

08310-00057

$1.84

20

SCREW | M,A,B This part replaces 02111-05207.

02112-05207

$1.97

21

HOLDER, TOOL

41550-25300

Unavailable

22

SCREW This part replaces 02112-06128.

02112-06127

$1.84

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

24

TOOL ASSY This part replaces 09800-00108.

09800-21028

$33.02

25

WRENCH, POINT | K

09930-20111

Unavailable

26

LOCK ASSY, STEERING This part replaces 50000-25837.

51910-25311

$40.33

27

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

28

SCREW This part replaces 02111-05127.

02112-05127

$1.97
