Description

Price

13183A

PLATE

13183-3760

Unavailable

18001

MUFFLER,WATER BOX,UPP

18001-3727

Unavailable

18001A

MUFFLER,WATER BOX,LWR

18001-3728

Unavailable

32150

PIPE,WATER MUFFLER

32150-3738

$82.24

92002

BOLT,6X25

92002-3714

$5.00

92002A

BOLT,6X45

92002-3717

$6.05

92002B

BOLT,6X16

92002-3728

$4.69

92002C

BOLT,6X20

92002-3755

$4.69

92002D

BOLT,6X12

92002-3763

$4.69

92022

WASHER

92022-567

$2.67

92037

CLAMP

92037-509

$5.58

92055

RING-O,WATER MUFFLER

92055-3718

$49.03

92066

PLUG

92066-3719

$7.59

92143

COLLAR,7.5X10.5X9

92143-3714

Unavailable

92143A

COLLAR,7.5X10.5X24

92143-3717

Unavailable

92160

DAMPER,FR

92160-3730

$6.47

92160A

DAMPER,RR

92160-3731

Unavailable

92160B

DAMPER,LWR

92160-3732

$7.66

92190

TUBE

92059-3875

$23.09

92200

WASHER,6.5X32X3

92022-3749

Unavailable

671

O RING,60MM

671B2560

$6.91

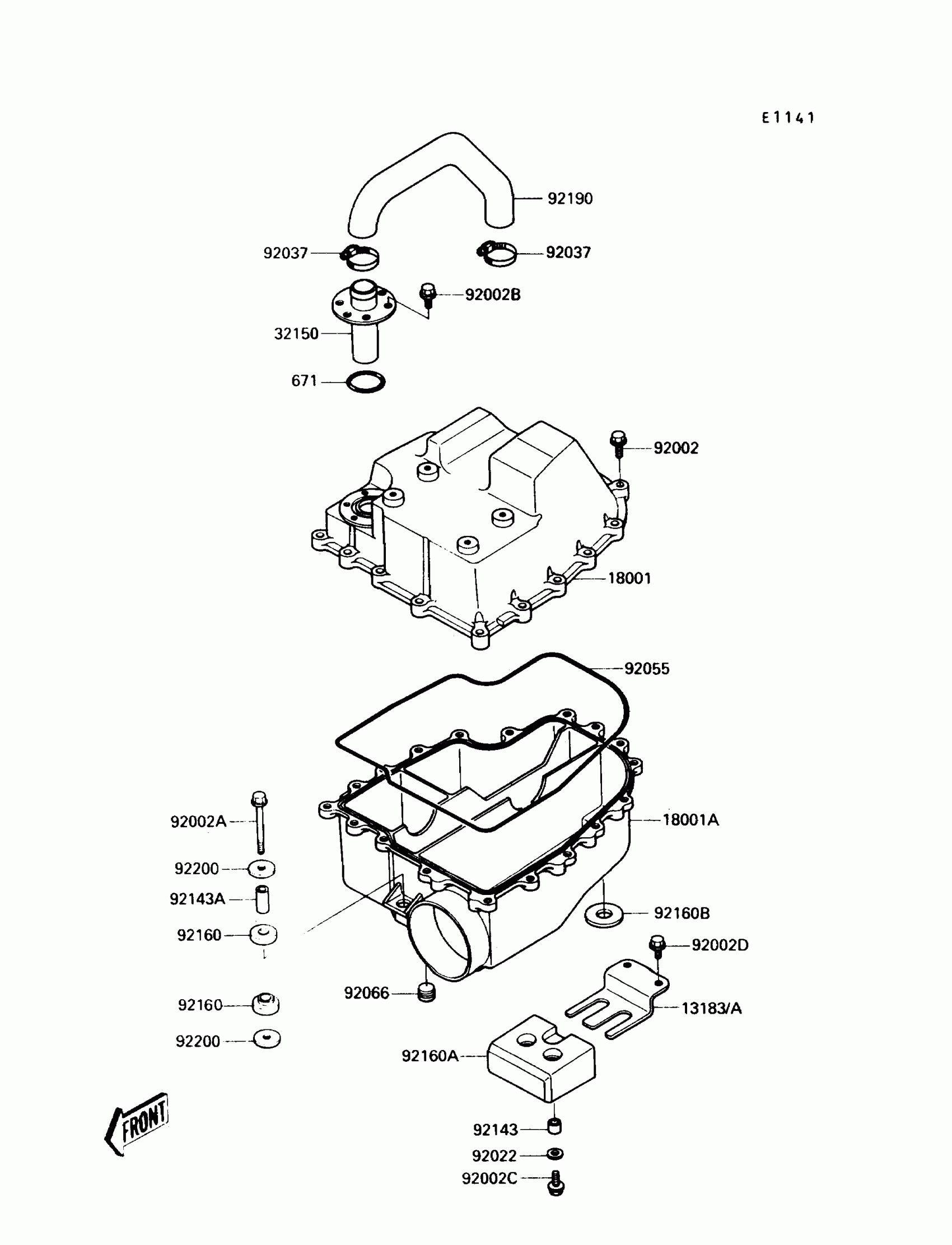

Kawasaki TS Water Muffler Diagram

PLATE

MUFFLER,WATER BOX,UPP

MUFFLER,WATER BOX,LWR

PIPE,WATER MUFFLER

BOLT,6X25

BOLT,6X45

BOLT,6X16

BOLT,6X20

BOLT,6X12

WASHER

CLAMP

RING-O,WATER MUFFLER

PLUG

COLLAR,7.5X10.5X9

COLLAR,7.5X10.5X24

DAMPER,FR

DAMPER,RR

DAMPER,LWR

TUBE

WASHER,6.5X32X3

O RING,60MM
