Description

Price

11012

CAP,J.WHITE

11012-3787-8U

Unavailable

11021

CASE-ASSY,ICE BOX

11021-3704

Unavailable

13270

PLATE

13270-3825

Unavailable

13270A

PLATE

13270-3826

Unavailable

14090

COVER,ICE BOX

14090-3782

Unavailable

27016

LOCK-ASSY

27016-3734

Unavailable

27016A

LOCK-ASSY

27016-3735

Unavailable

53009

HINGE

53009-3722

$43.04

53044

TRIM,ICE BOX

53044-3735

$47.09

53045

HOOK-ASSY

53045-3708

$65.30

92009

SCREW,6X16

92009-3771

$4.45

92009A

SCREW,5X25

92009-3827

$2.41

92009B

SCREW,5X18

92009-3828

$2.41

92009C

SCREW,5X14

92009-3829

Unavailable

92009D

SCREW,6X15

92009-3830

$3.32

92015

NUT,CAP,6MM

92015-3755

$4.99

92015A

NUT,6MM

92015-3767

$4.69

92015B

NUT,CAP,5MM

92015-3802

$4.99

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92039

RIVET

92039-3748

$1.88

92066

PLUG,RR,DRAIN

92066-3725

$19.96

92066A

PLUG,J.S.VIOLET

92066-3740-RE

$3.66

92143

COLLAR,5.1X14X10

92143-3761

Unavailable

411

WASHER-PLAIN,5MM

411S0500

$0.94

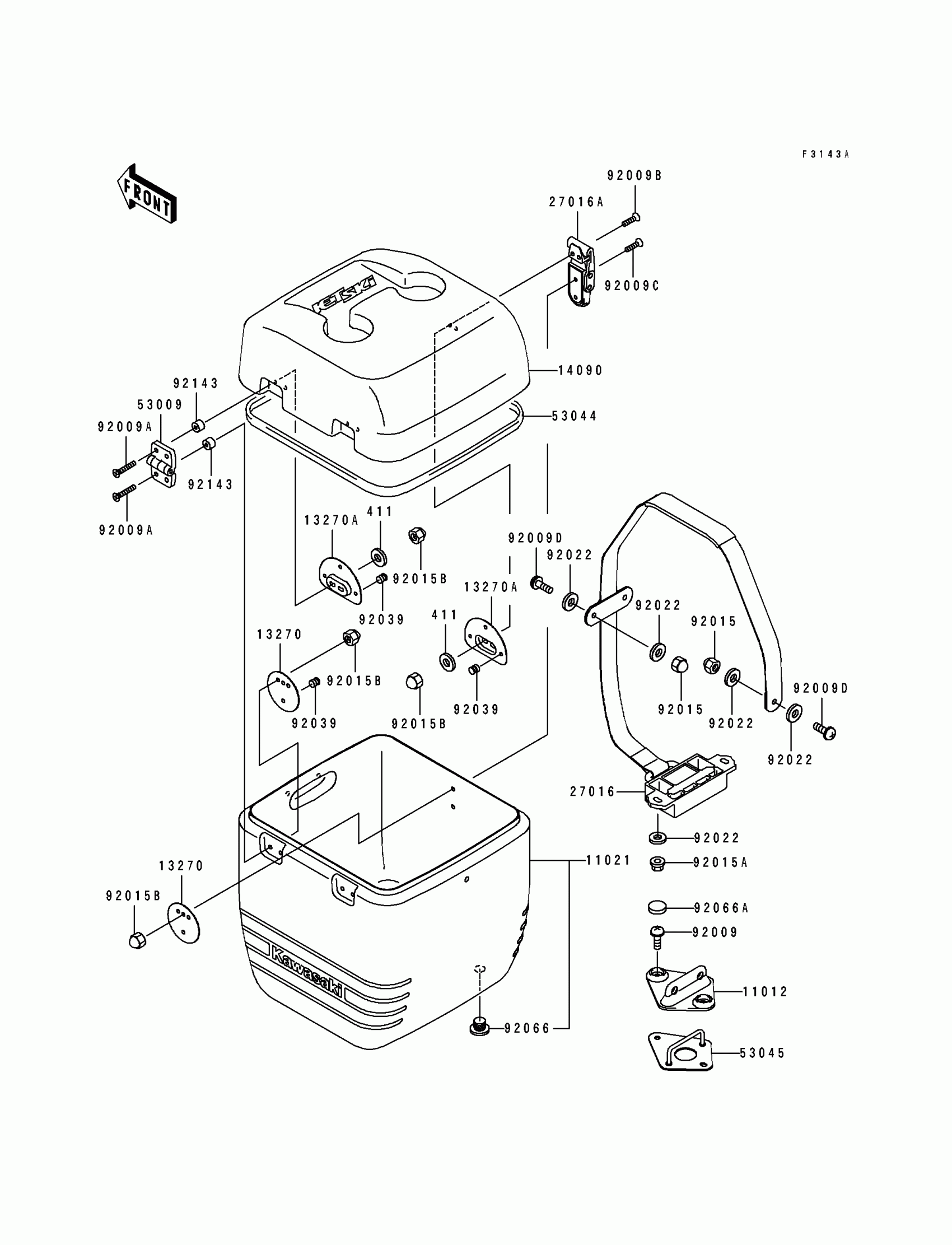

Kawasaki TS Ice Box Diagram

CAP,J.WHITE

CASE-ASSY,ICE BOX

PLATE

PLATE

COVER,ICE BOX

LOCK-ASSY

LOCK-ASSY

HINGE

TRIM,ICE BOX

HOOK-ASSY

SCREW,6X16

SCREW,5X25

SCREW,5X18

SCREW,5X14

SCREW,6X15

NUT,CAP,6MM

NUT,6MM

NUT,CAP,5MM

WASHER,6.5X20X1.5

RIVET

PLUG,RR,DRAIN

PLUG,J.S.VIOLET

COLLAR,5.1X14X10

WASHER-PLAIN,5MM
