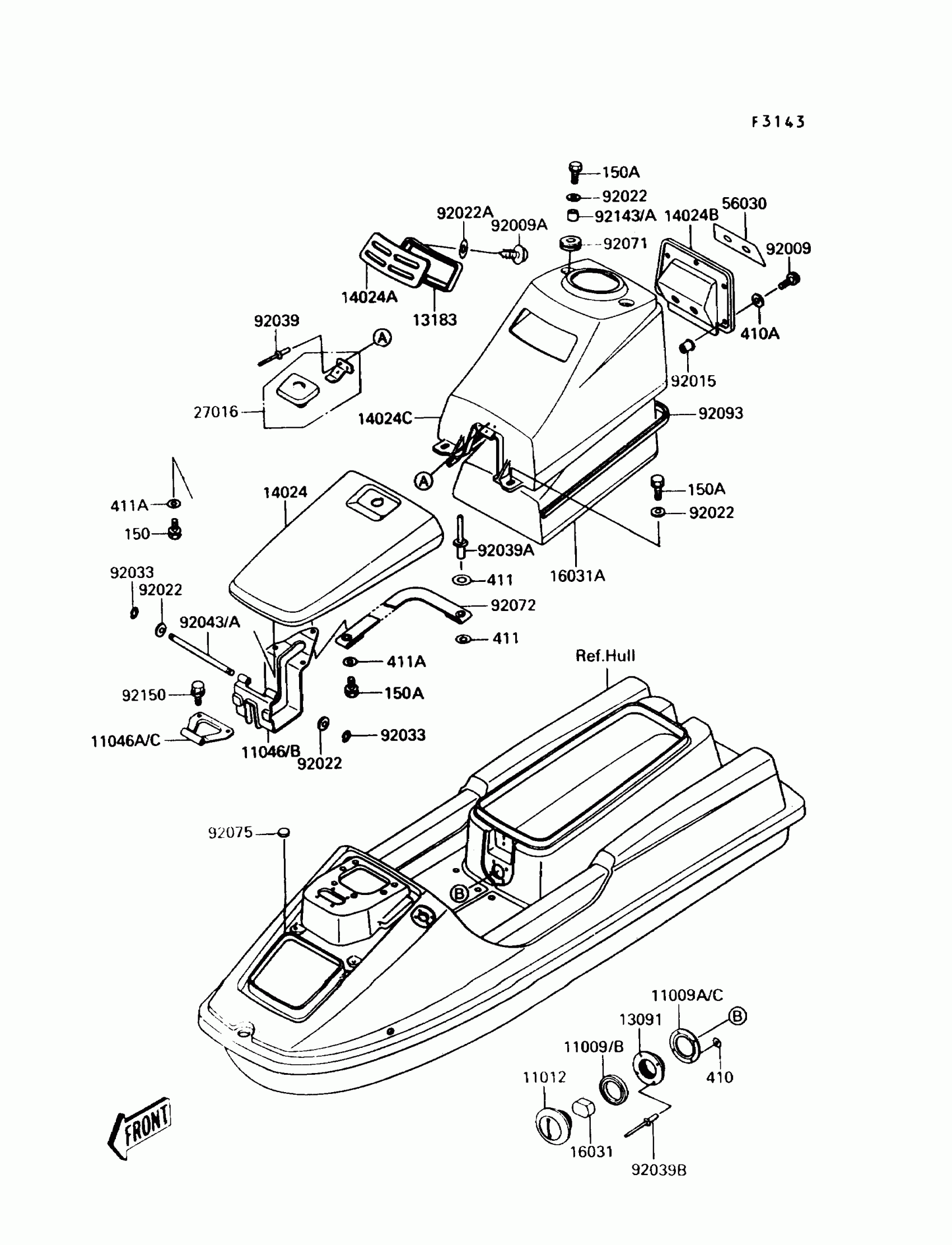

Kawasaki TS Hull Fittings Diagram
#
11009B
GASKET,IGNITION TIMING CAP
11009-3769
Unavailable
11009C
GASKET,IGNITION TIMING HOLDER
11009-3770
Unavailable
11012
CAP,IGNITION TIMING,J.WHITE
11012-3735-8U
Unavailable
11046B
BRACKET,HATCH COVER
11046-3838
Unavailable
11046C
BRACKET,DECK
11046-3839
Unavailable
13091
HOLDER,IGNITION TIMING,J.WHITE
13091-3740-8U
Unavailable
13183
PLATE,INLET COVER
13183-3743
Unavailable
14024
COVER,HATCH,M.M.BLUE
14024-3754-8Z
Unavailable
14024A
COVER,INLET,M.M.BLUE
14024-3756-8Z
Unavailable
14024B
COVER,CHOKE,M.M.BLUE
14024-3757-8Z
Unavailable
14024C
COVER,HANDLE TOWER,M.M.BLUE
14024-3758-8Z
Unavailable
16031
FLOAT
16031-3769
Unavailable
16031A
FLOAT
16031-3775
Unavailable
27016
LOCK-ASSY,HATCH
27016-3716
$96.44
56030
LABEL,FUEL/CHOKE
56030-3752
Unavailable
92009
SCREW,5X20
92009-3749
Unavailable
92009A
SCREW
92011-562
$1.65
92015
NUT,5MM
92015-3784
$2.25
92022
WASHER,6.5X20X1.5
92022-3710
$3.65
92022A
WASHER
92022-563
$1.13
92033
RING,SNAP
92036-518
$1.56
92039
RIVET,4MM
92039-3703
$4.69
92039A
RIVET
92039-3741
$1.63
92039B
RIVET
92039-3742
Unavailable
92043A
PIN,6X110
92043-3726
Unavailable
92071
GROMMET
92071-3763
$1.38
92072
BAND
92072-3742
Unavailable
92075
DAMPER
92075-3760
Unavailable
92093
SEAL
92093-3722
Unavailable
92143A
COLLAR,6X8X7
92143-3718
Unavailable
92150
BOLT,6X20
92150-3758
$5.11
150
BOLT-WS,6X18
150R0618
$4.67
150A
BOLT-WS,6X22
150R0622
$4.67
410
W-PLAIN-S,3MM
410S0300
$1.28
410A
W-PLAIN-S,5MM
410S0500
$1.59
411
WASHER-PLAIN,5MM
411S0500
$0.94
411A
WASHER-PLAIN,6MM
411S0600
$2.06
