Partiron

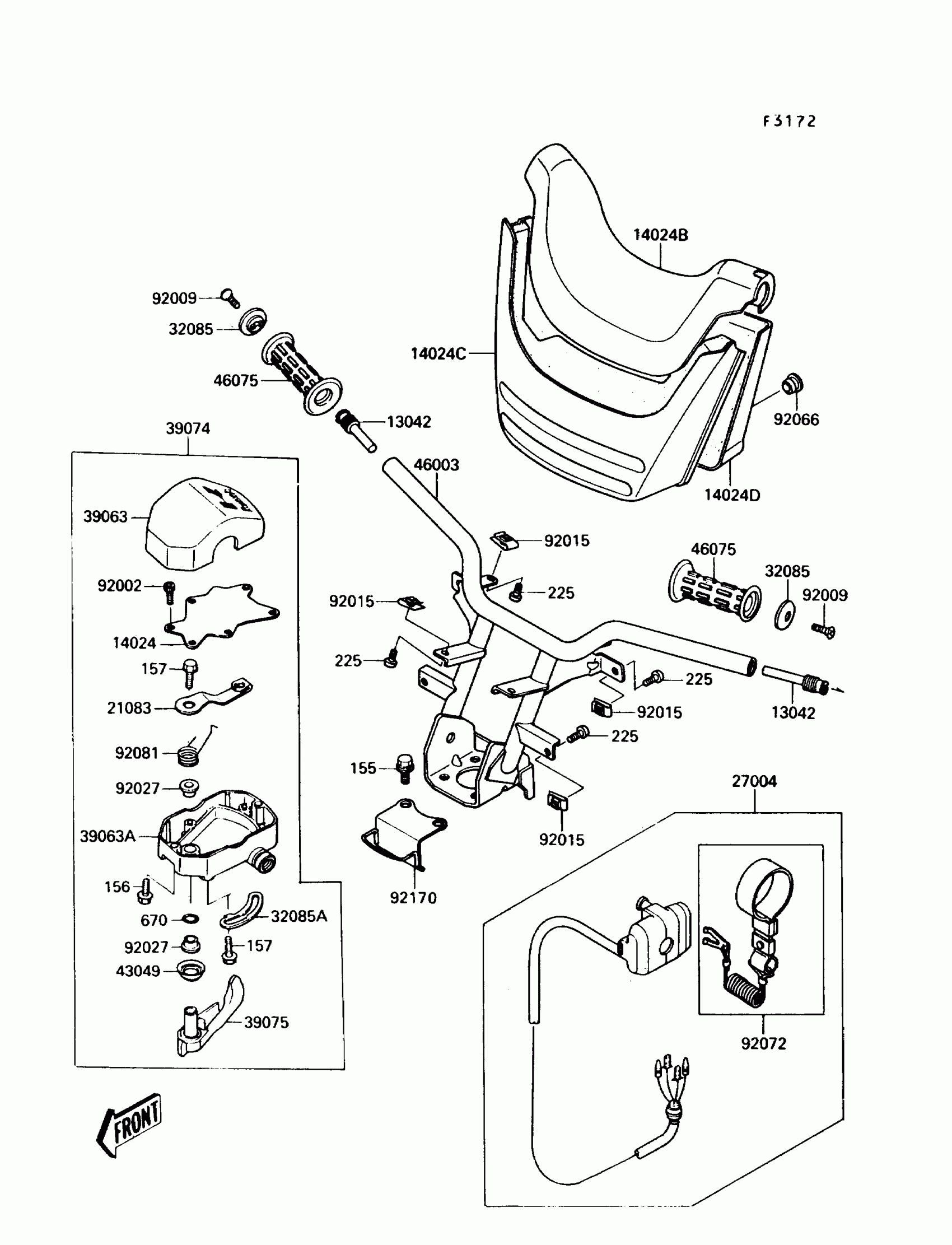

Kawasaki TS Handlebar Diagram

#

Description
Price

13042

WEIGHT,HANDLE

13042-3701

Unavailable

14024

COVER,THROTTLE LEVER

14024-3701

Unavailable

14024B

COVER,HANDLE,UPP,F.BLACK

14024-3775-21

Unavailable

14024C

COVER,HANDLE,FR,F.BLACK

14024-3776-21

Unavailable

14024D

COVER,HANDLE,RR,F.BLACK

14024-3777-21

Unavailable

21083

ARM,THROTTLE LEVER

21083-3701

$14.81

27004

SWITCH-ASSY

27004-3709

Unavailable

32085

STOPPER

32085-3705

$4.29

32085A

STOPPER

32085-3709

Unavailable

39063

HOUSING-CONTROL,UPP

39063-3703

Unavailable

39063A

HOUSING-CONTROL,LWR

39063-3707

Unavailable

39074

LEVER-ASSY-THROTTLE

39074-3711

$231.05

39075

LEVER-THROTTLE

39075-3704

Unavailable

43049

PACKING,THROTTLE LEVER

43049-3701

$7.56

46003

HANDLE

46003-3708

$561.04

46075

GRIP,HANDLEBAR

46075-3713

Unavailable

92002

BOLT,SOCKET,3X10

92002-3751

$4.80

92009

SCREW,6X16

92009-3703

$3.29

92015

NUT,5MM

92015-3799

$10.88

92027

COLLAR,THROTTLE LEVER

92027-3704

Unavailable

92066

PLUG

92066-3730

Unavailable

92072

BAND,TETHER SWITCH

92072-3734

$58.43

92081

SPRING,THROTTLE LEVER RETURN

92081-3702

$5.66

92170

CLAMP,HARNESS&CABLE

92170-3722

$12.63

155

BOLT-WSP-SMALL,8X20

155R0820

$4.81

156

BOLT-WP,5X25

156R0525

Unavailable

157

BOLT-WSP,5X12

157R0512

Unavailable

225

SCREW-PAN-WSP-CROS,5X25

225R0525

Unavailable

670

O RING,8MM

670B1508

$1.00
