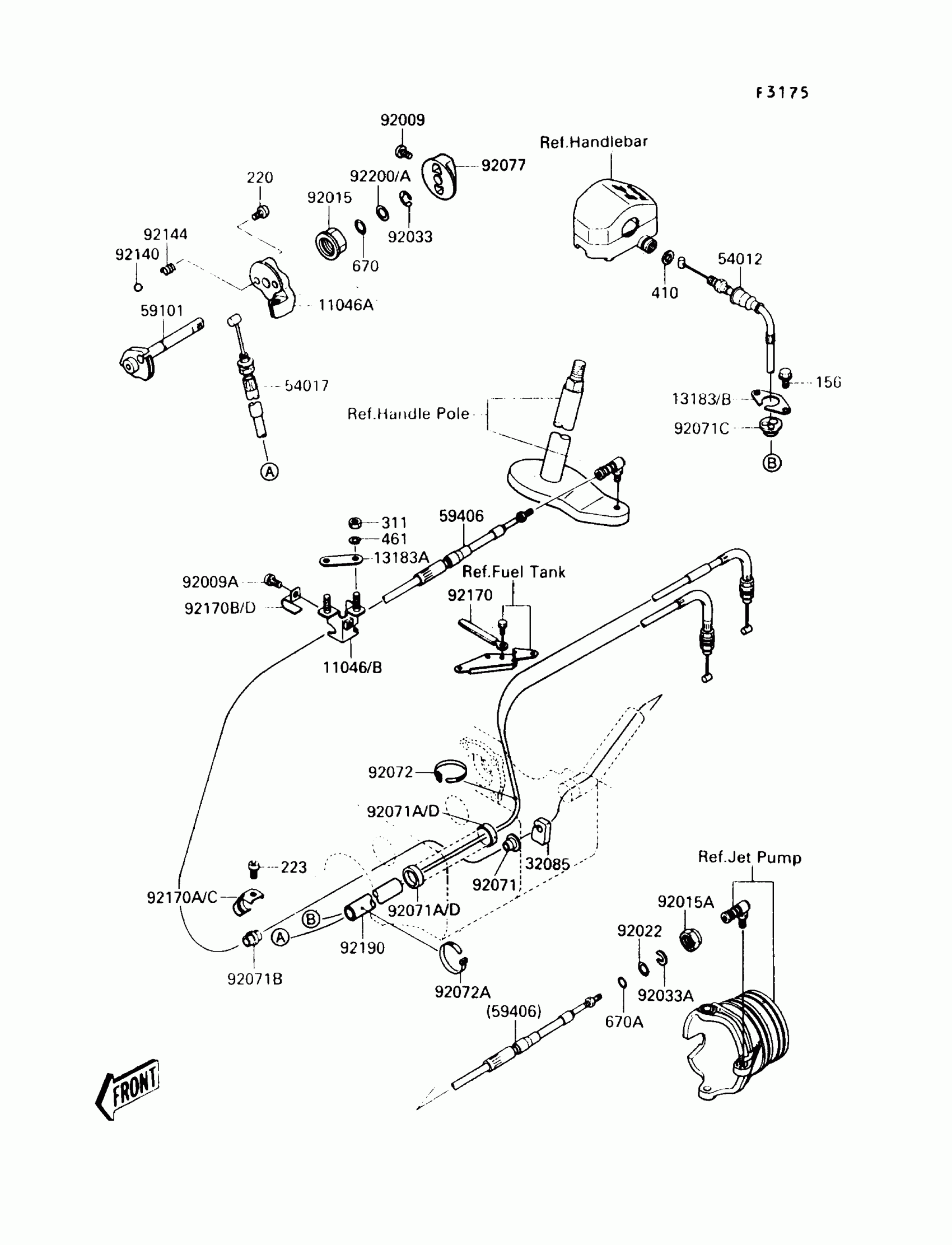

Kawasaki TS Cables Diagram

#

Description
Price

11046A

BRACKET,STARTER CABLE

11046-3786

Unavailable

11046B

BRACKET,STEERING CABLE

11046-3843

Unavailable

13183A

PLATE

13183-3754

Unavailable

13183B

PLATE,THROTTLE CABLE

13183-3758

Unavailable

32085

DETENT

59346-504

$8.73

54012

CABLE-THROTTLE

54012-3719

Unavailable

54017

CABLE-STARTER

54017-3712

Unavailable

59101

REEL

59101-3706

Unavailable

59406

CABLE-STRG

59406-3714

$168.69

92009

SCREW,4X8

92009-3729

$6.54

92009A

SCREW,5X12

92009-3740

$3.75

92015

NUT,18MM

92015-3778

Unavailable

92015A

NUT,20MM

92015-526

$30.30

92022

WASHER

92022-535

$7.25

92033

RING-SNAP,7MM

92033-3704

$2.37

92033A

RING-SNAP

92036-501

Unavailable

92071

GROMMET

92071-3760

Unavailable

92071B

GROMMET

92071-3766

Unavailable

92071C

GROMMET

92071-3767

Unavailable

92071D

GROMMET

92071-3771

Unavailable

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,L=186

92072-056

$3.81

92077

KNOB

92077-3709

Unavailable

92140

BALL,3MM

92140-3702

$4.49

92144

SPRING

92144-3712

$2.14

92170

CLAMP

92170-3705

Unavailable

92170C

CLAMP

92170-3723

Unavailable

92170D

CLAMP

92170-3724

Unavailable

92190

TUBE,22X24X250

92190-3710

Unavailable

92200A

WASHER,8X14.5X1

92200-3704

Unavailable

156

BOLT-WP,6X12

156R0612

$3.51

220

SCREW-PAN-CROS,4X6

220R0406

$2.42

223

SCREW-PAN-WS-CROS,6X14

223R0614

Unavailable

311

NUT-HEX,6MM

311R0600

$0.65

410

W-PLAIN-S,10MM

410S1000

Unavailable

461

WASHER-SPRING,6MM

461S0600

$0.84

670

O RING,8MM

670B1508

$1.00

670A

O RING,11MM

670B2011

$0.98
