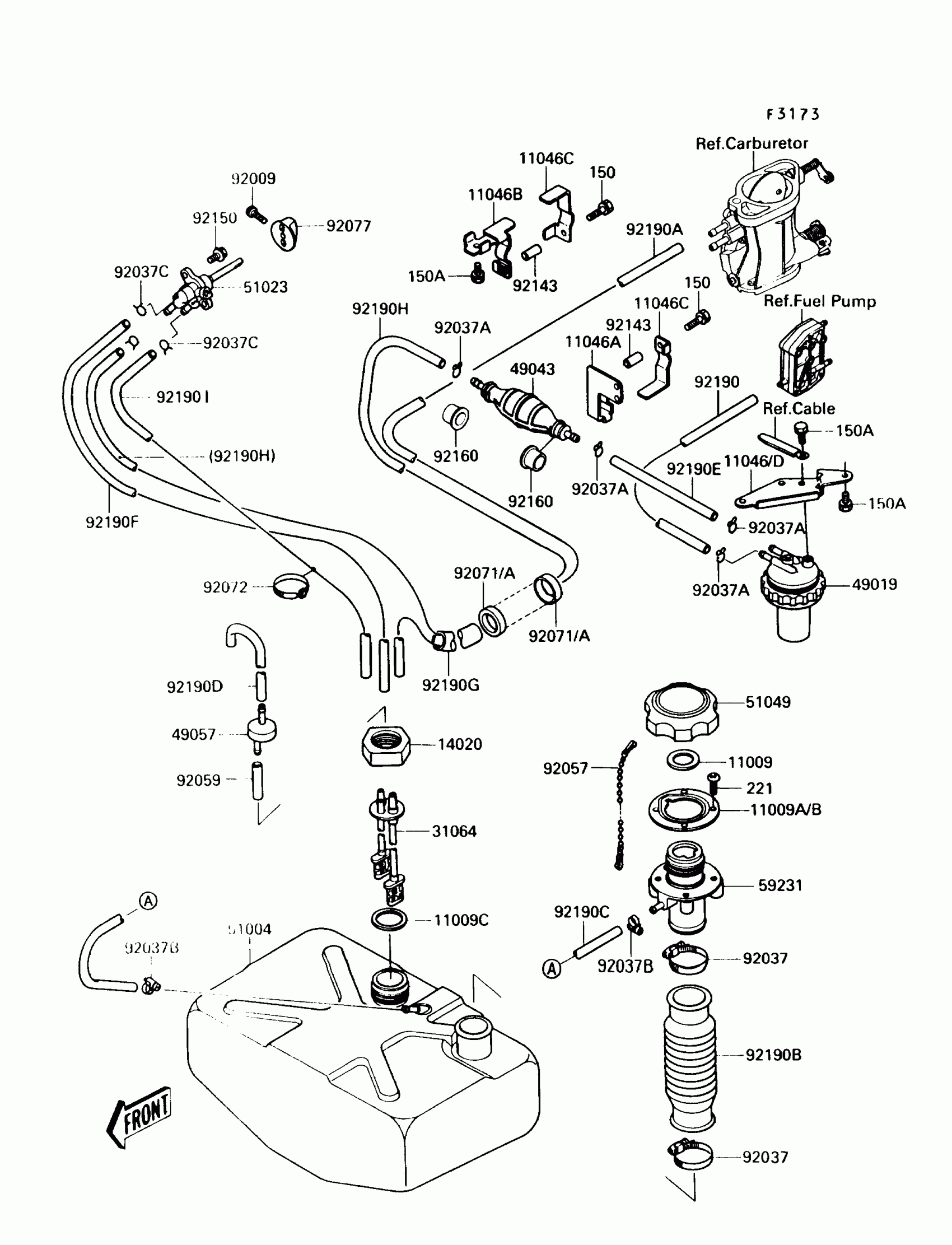

Kawasaki TS Fuel Tank Diagram
#
11009
GASKET,TANK CAP
11009-3020
$13.51
11009B
GASKET,FILLER
11009-3771
Unavailable
11009C
GASKET
92065-504
$15.31
11046A
BRACKET,PUMP PRIMING
11046-3806
Unavailable
11046B
BRACKET,PUMP PRIMING
11046-3811
Unavailable
11046C
BRACKET,PUMP PRIMING
11046-3813
Unavailable
11046D
BRACKET,FUEL FILTER
11046-3842
Unavailable
14020
RETAINER
23072-501
Unavailable
31064
PIPE-COMP,FUEL TANK
31064-3711
Unavailable
49019
FILTER-FUEL
49019-3708
$59.17
49043
PUMP-PRIMING
49043-3702
Unavailable
49057
VALVE-RELIEF
49057-3001
$64.85
51004
TANK-FUEL
51004-3709
Unavailable
51023
TAP-ASSY,FUEL
51023-3709
$60.79
51049
CAP-TANK,FUEL
51049-3714
$35.51
59231
FILLER
59231-3708
Unavailable
92009
SCREW,4X8
92009-3729
$6.61
92037
CLAMP
92037-3009
$3.70
92037A
CLAMP,11MM
92037-3723
$3.49
92037B
CLAMP
92037-3726
$3.98
92037C
CLAMP
92037-3727
$2.29
92057
CHAIN,COVER,L=100
92057-3704
$19.34
92059
TUBE,5.8X12.2X55
92059-3026
Unavailable
92071A
GROMMET
92071-3771
Unavailable
92072
BAND,L=123
92072-030
$5.00
92077
KNOB
92077-3709
Unavailable
92143
COLLAR,6X8.5X13
92143-3715
Unavailable
92150
BOLT,5X14
92150-3702
Unavailable
92160
DAMPER
92160-3752
Unavailable
92190
TUBE,5.8X10.8X270
92059-3858
Unavailable
92190A
TUBE,5.8X10.8X1040
92059-3861
Unavailable
92190B
TUBE
92059-3869
$16.42
92190C
TUBE,5.8X10.8X440
92059-3882
Unavailable
92190D
TUBE,RELIEF VALVE
92059-3883
$4.14
92190E
TUBE,5.8X10.8X152
92059-3885
Unavailable
92190F
TUBE,5.8X10.8X380
92059-3886
Unavailable
92190G
TUBE,22X24X250
92190-3710
Unavailable
92190H
TUBE,5.8X10.8X1130
92190-3715
Unavailable
92190I
TUBE,5.8X10.8X370
92190-3716
Unavailable
150
BOLT-WS,5X25
150R0525
$3.60
150A
BOLT-WS,6X12
150R0612
$3.35
221
SCREW-CSK-CROS,5X20
221R0520
$4.38
