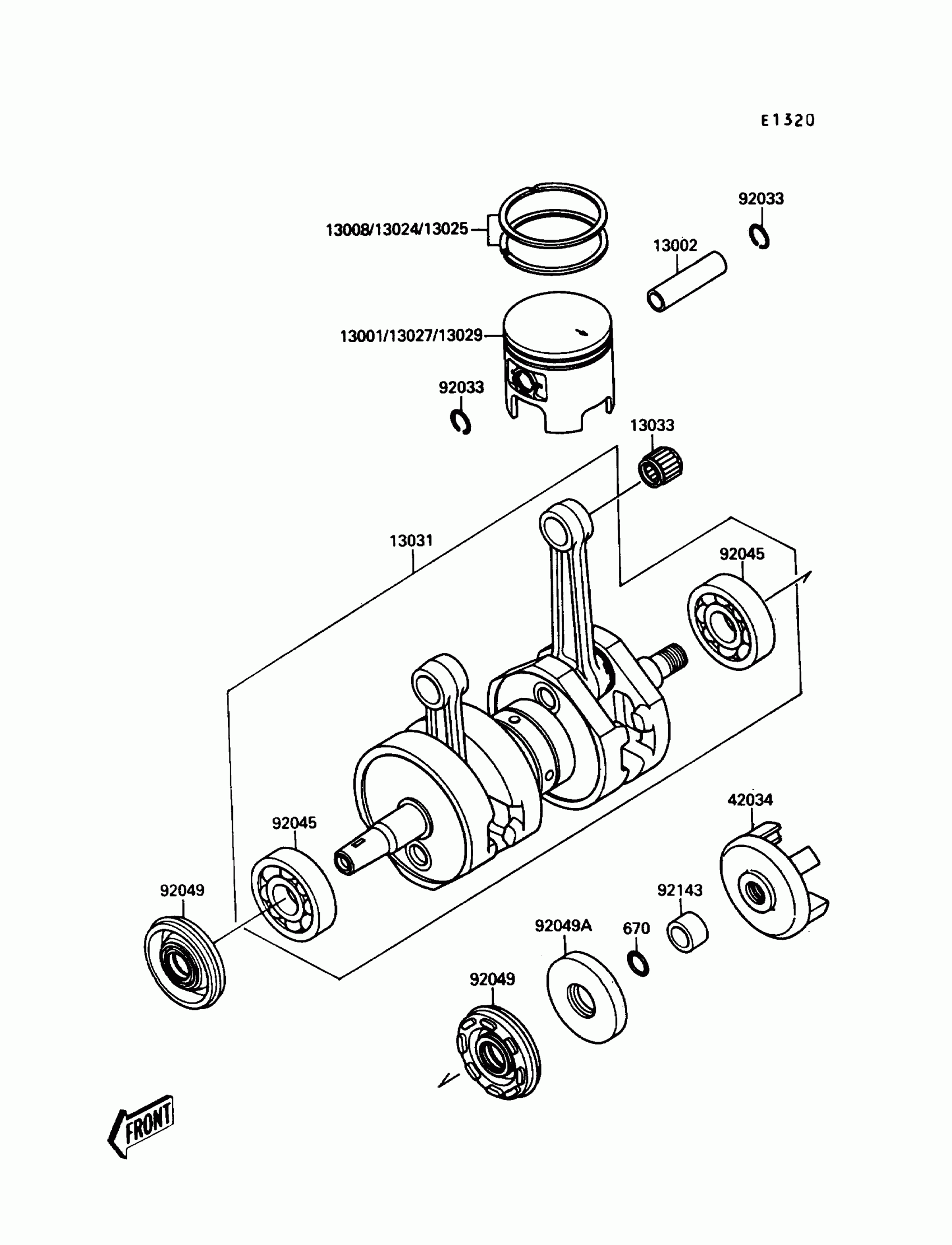

Kawasaki TS Crankshaft/Piston(s) Diagram

Description

Price

13001

PISTON-ENGINE,STD

13001-3701

Unavailable

13002

PIN-PISTON

13002-017

$29.98

13008

RING-SET-PISTON,STD

13008-3701

$65.57

13024

RING-SET-PISTON LL,O/S,1.00

13024-3701

Unavailable

13025

RING-SET-PISTON L,O/S,0.50

13025-3701

Unavailable

13027

PISTON-ENGINE LL,O/S 1.00

13027-3701

Unavailable

13029

PISTON-ENGINE L,O/S 0.50

13029-3701

Unavailable

13031

CRANKSHAFT-COMP

13031-3707

Unavailable

13033

BEARING-SMALL END

13033-1010

$25.15

42034

COUPLING

42034-3705

Unavailable

92033

CIRCLIP-PISTON PIN

92036-015

$4.95

92045

BEARING-BALL,6303C4

92045-3709

Unavailable

92049

SEAL-OIL,FWJ15307210

92049-3705

$26.09

92049A

SEAL-OIL,S30726

92049-3706

$14.43

92143

COLLAR

92027-3713

Unavailable

670

O RING,14MM

670B2014

$1.19
