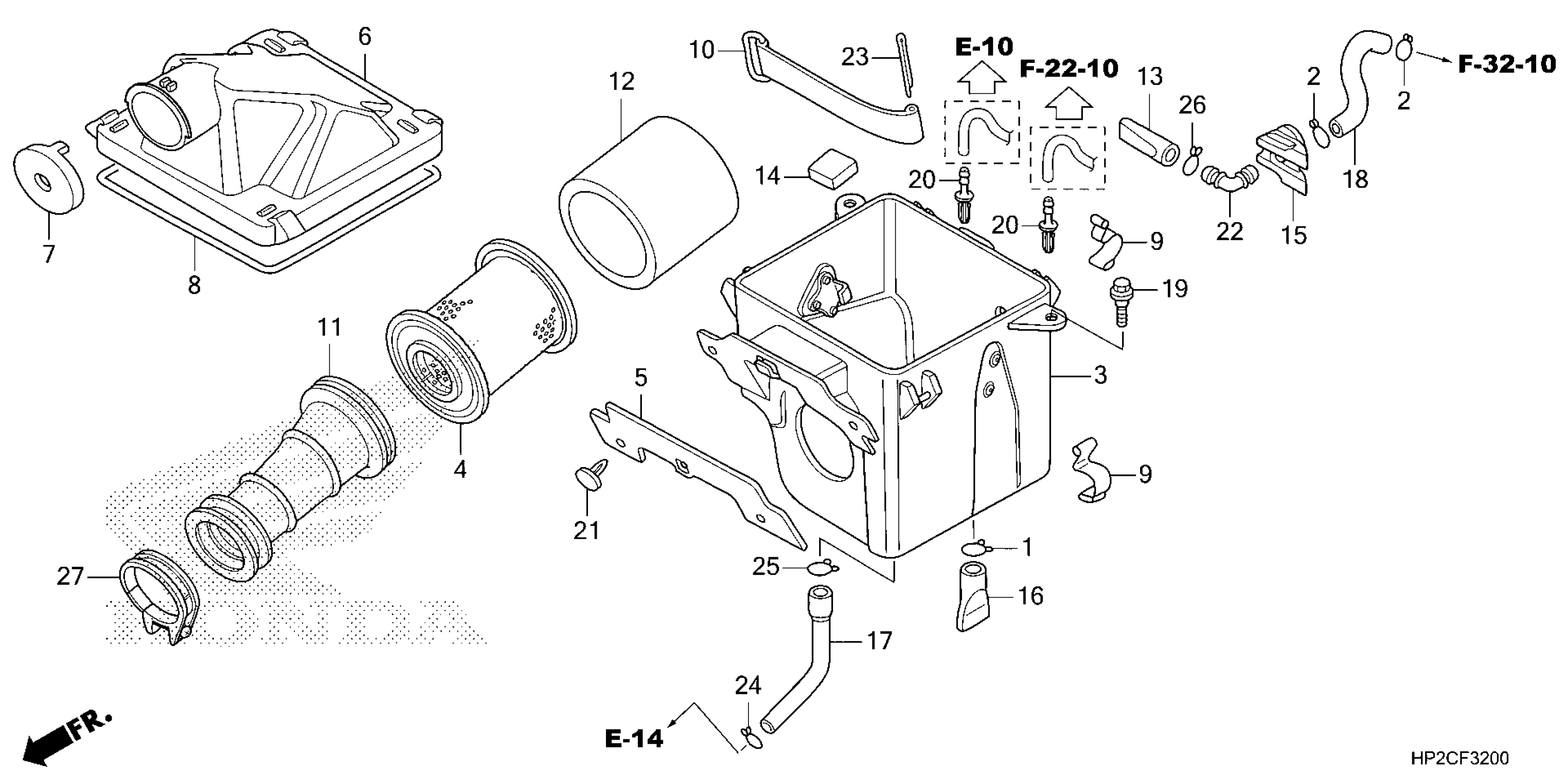

Honda TRX90XAC (25) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE550-SJ100001 TO 1HFTE550-SJ199999 AIR CLEANER Diagram

CLIP, BREATHER TUBE CLIP, TUBE

15772-292-010

$2.80

CLIP, BREATHER TUBE

15772-GW3-980

$2.58

HOUSING, AIR CLEANER

17210-HP2-770

$34.46

HOLDER, AIR CLEANER

17212-HP2-670

$22.41

RUBBER, SEAL

17214-HP2-670

$7.26

LID, AIR CLEANER HOUSING

17217-HP2-670

$13.44

CAP, IN.

17218-HF7-000

$6.18

SEAL, AIR CLEANER LID

17219-HF7-000

$5.22

SPRING, AIR CLEANER HOUSING LID (TOYO)

17223-HB3-003

$7.04

SPRING

17225-GN1-000

$8.02

TUBE, AIR CLEANER CONNECTING

17253-HF7-000

$24.56

ELEMENT, AIR CLEANER

17254-HF7-000

$8.55

FILTER, SUB-AIR CLEANER

17254-HF7-A20

$4.26

COVER, DUST

17256-HF7-A20

$2.20

RUBBER, SUB-AIR CLEANER MOUNTING

17316-HF7-A20

$14.54

TUBE, DRAIN This part replaces 17358-HA0-680.

17358-HM8-000

$4.60

TUBE, DRAIN

17358-HM8-000

$4.60

TUBE, BREATHER

17366-HP2-670

$3.52

HOSE A, AIR IN.

18221-HP2-770

$9.17

BOLT, FLANGE (6MM)

90111-162-000

$2.62

JOINT, BREATHER TUBE

90652-HF7-003

$8.54

CLIP, COVER (LOWER)

90685-SA5-003

$9.26

JOINT, TUBE

91463-MC4-000

$5.50

PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)

94201-30450

$0.94

CLIP, TUBE (B10)

95002-02100

$1.72

CLIP, TUBE (B12)

95002-02120

Unavailable

CLIP, TUBE (B12.5)

95002-02130

$1.04

BAND, AIR CLEANER CONNECTING TUBE (42)

95018-42250

$7.19
