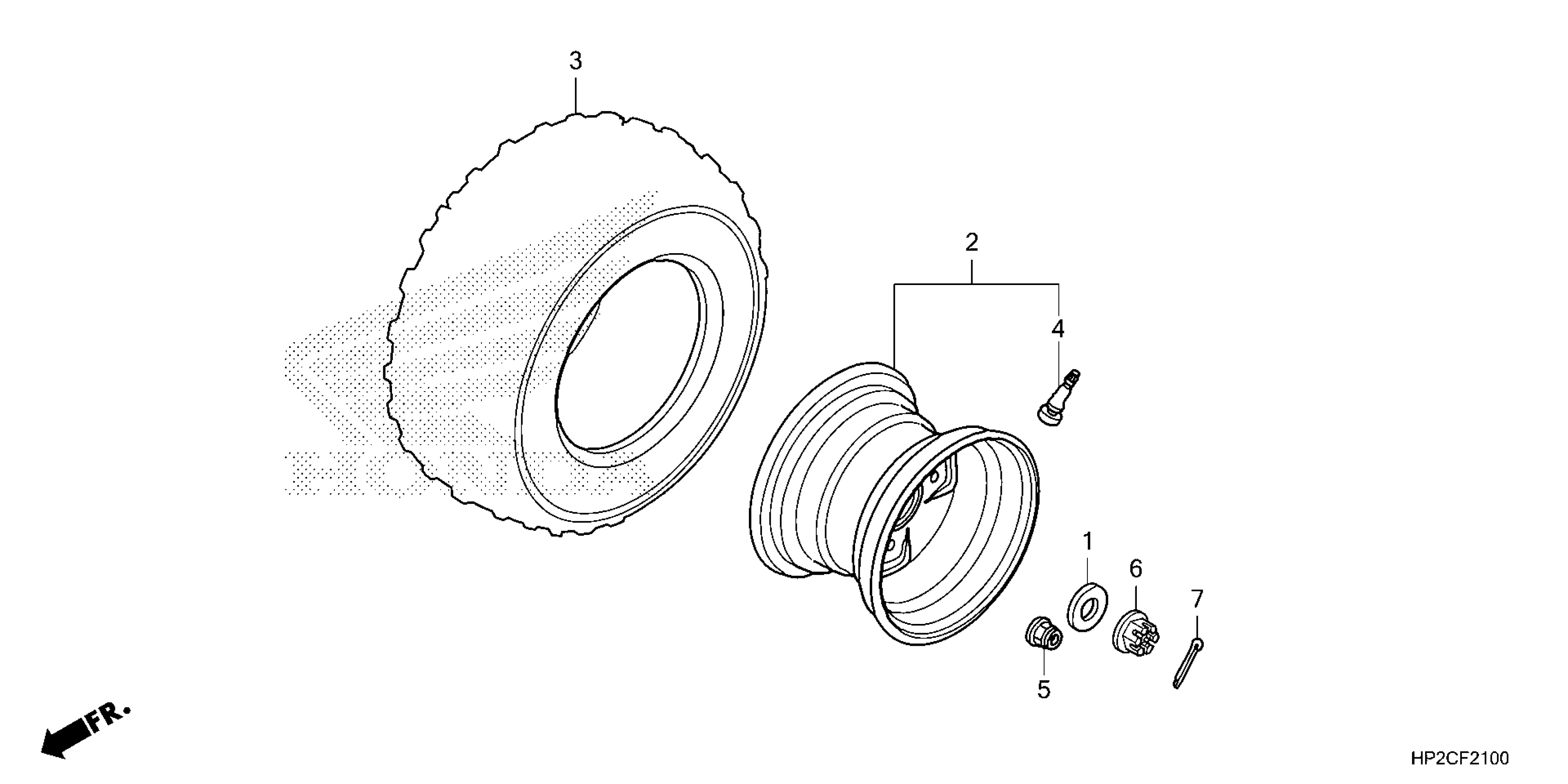

Honda TRX90XAC (23) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE550-P4100001 TO 1HFTE550-P4199999 REAR WHEEL Diagram

#

Description

Price

1

WASHER (14MM)

42322-VM6-000

$13.88

2

WHEEL SUB-ASSY., RR.

42650-HP2-AE0

$152.62

3

TIRE (19X8-8)

42711-HP2-AE1

$76.41

4

VALVE, RIM (TR412)

42753-HF1-670

$5.19

5

NUT, U (10MM) NUT, SELF-LOCK (10MM)

90304-GE8-003

$3.66

6

NUT, AXLE (14MM)

90309-HC4-000

$14.79

7

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.06

7

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.06

7

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.06

7

PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)

94201-30450

$1.06
