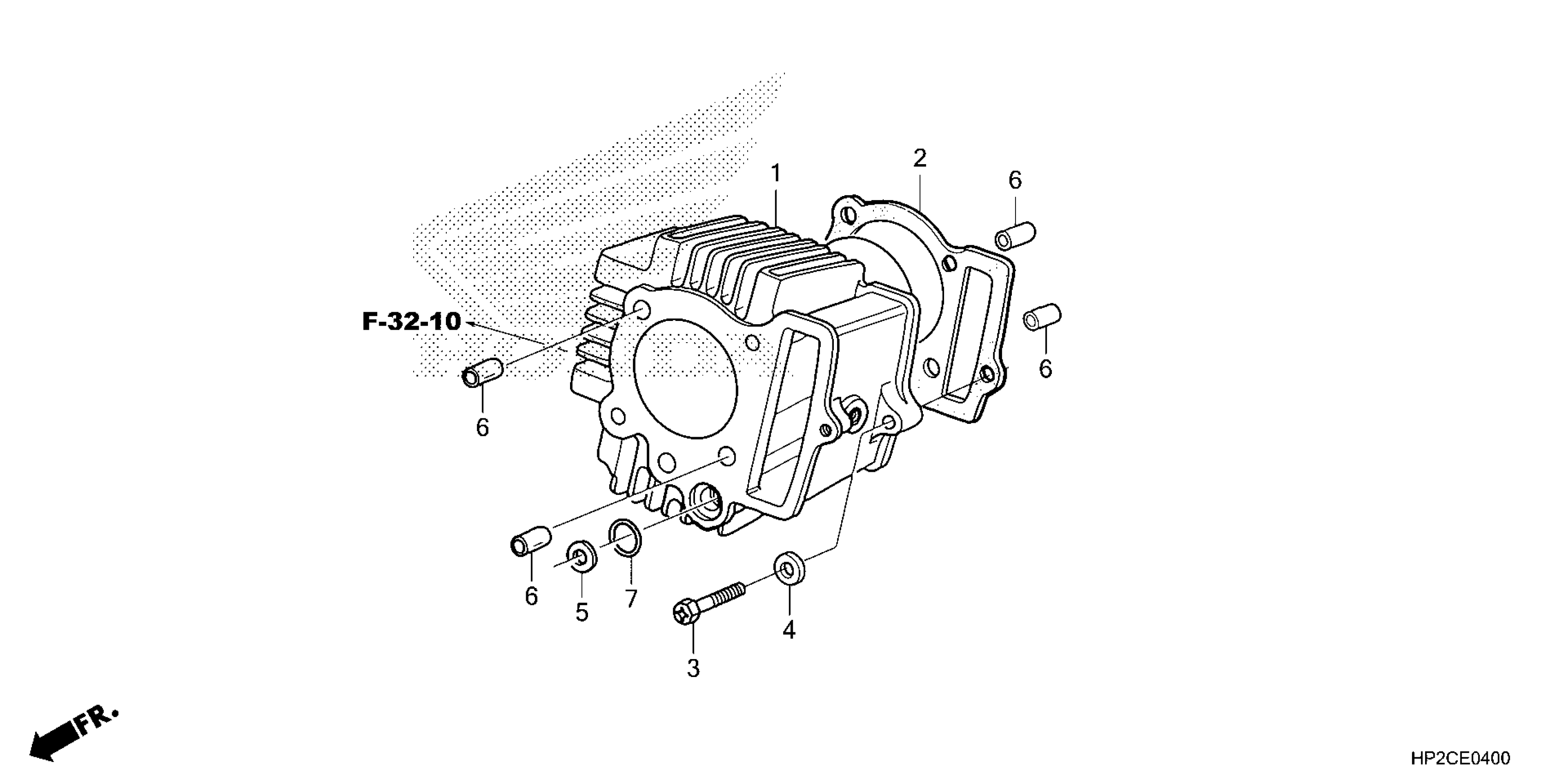

Honda TRX90XAC (23) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE550-P4100001 TO 1HFTE550-P4199999 CYLINDER Diagram

#

Description

Price

1

CYLINDER

12101-HP2-770

$151.45

2

GASKET, CYLINDER

12191-HP2-670

$7.92

3

BOLT, SEALING (6MM)

90082-459-305

$2.26

4

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

5

COLLAR (14.8MM)

90603-GB0-911

$3.08

6

PIN, DOWEL (8X14)

90701-GF6-000

$4.15

7

O-RING (14.5MM) This part replaces 91301-GB0-911.

91301-GF6-003

$6.65

7

O-RING (14.5MM)

91301-GF6-003

$6.65
