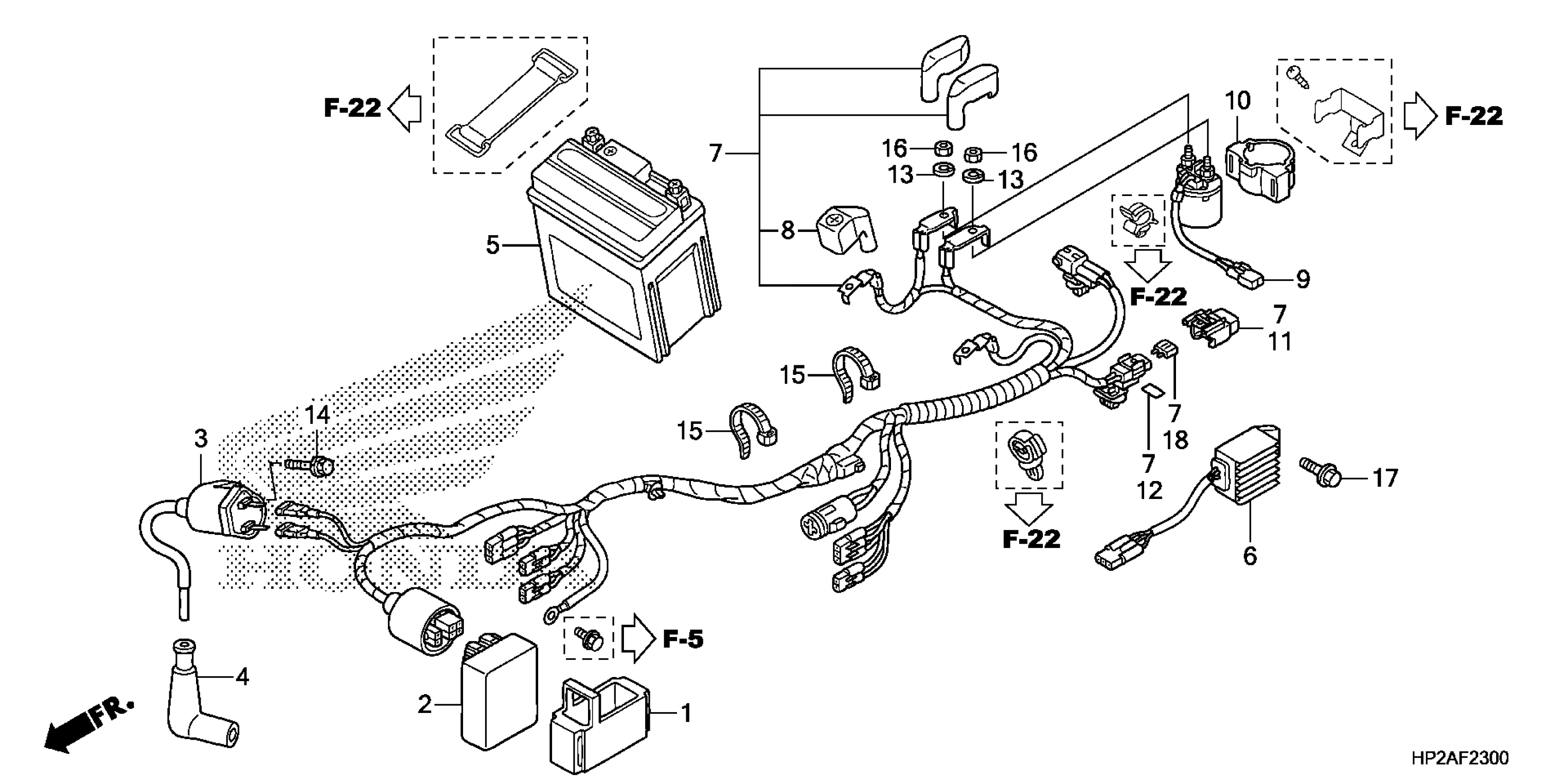

Honda TRX90XAC (22) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE550-N4000001 WIRE HARNESS Diagram

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-HA7-670

$10.00

MODULE, IGNITION CONTROL (CDI)

30410-HP2-671

$127.26

COIL, IGNITION This part replaces 30510-GAG-000.

30510-MN1-680

$77.44

COIL, IGNITION This part replaces 30510-GM6-710.

30510-MN1-680

$77.44

COIL, IGNITION

30510-MN1-680

$77.44

CAP ASSY., NOISE SUPPRESSOR

30700-GB3-602

$20.39

BATTERY (YTX5L-BS) (YUASA) (MSDS) This part replaces 31500-KY4-905.

31500-KY4-905AH

$75.46

BATTERY (YTX5L-BS) (YUASA) (MSDS)

31500-KY4-905AH

$75.46

RECTIFIER, REGULATE

31600-HP2-671

$65.74

WIRE HARNESS

32100-HP2-840

$287.39

COVER, BATTERY TERMINAL

32412-MV4-000

$4.66

SWITCH ASSY., STARTER MAGNETIC

35850-HF1-670

$98.07

RUBBER, MAGNETIC SHOCK

35856-425-000

$10.91

COVER, FUSE

38211-KRG-003

$2.67

MARK, FUSE (7.5A)

87117-ZY3-800

$2.48

WASHER, SPRING (6MM) (Honda Code 1310549)

90052-ZA0-800

$1.49

BOLT, FLANGE (5X22)

90112-GK8-010

$2.84

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

NUT, HEX. (6MM)

94002-06390-0S

$1.49

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

FUSE F (7.5A) (MINI)

98200-40750

$1.49
