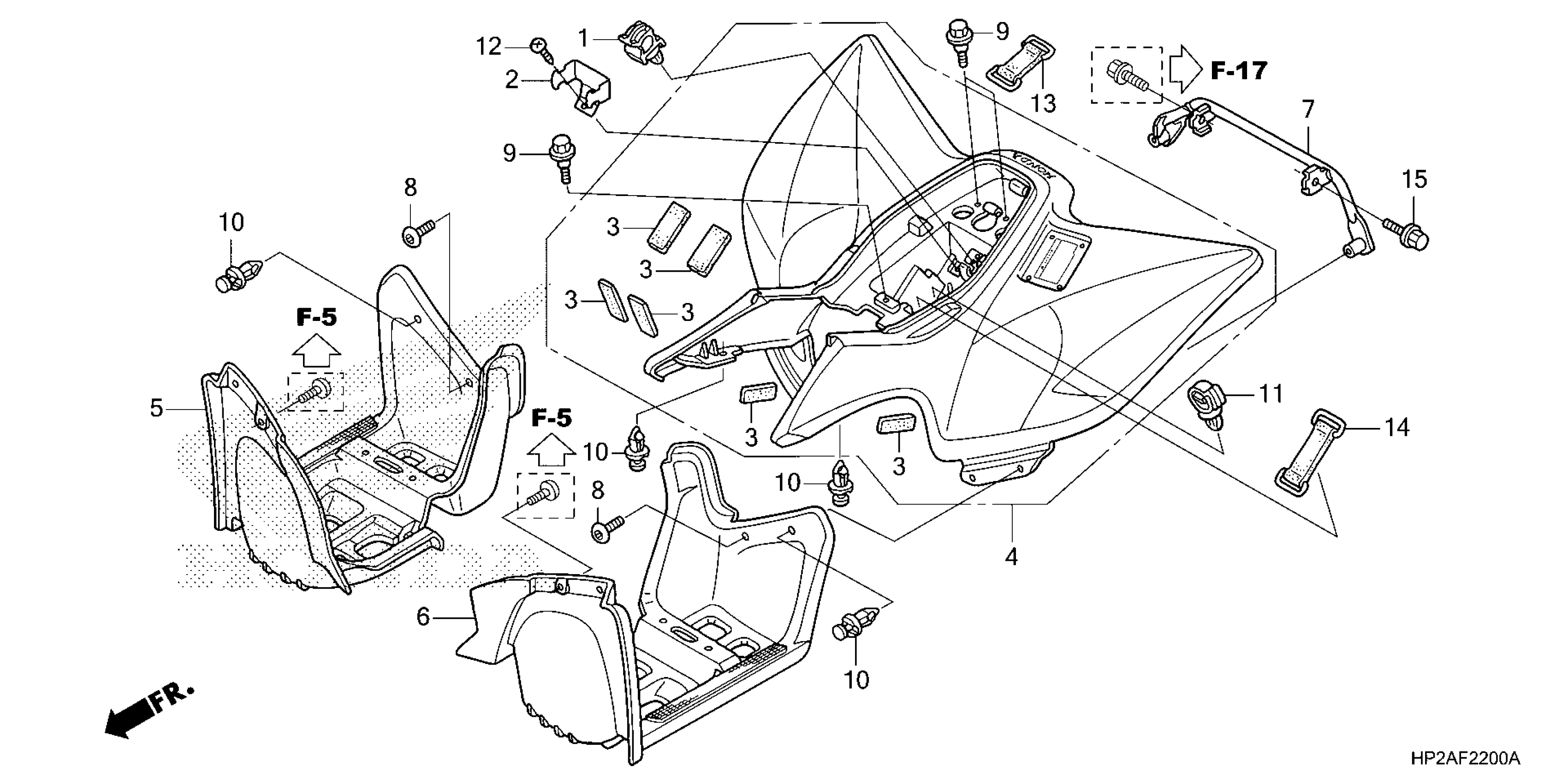

Honda TRX90XAC (22) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE550-N4000001 REAR FENDER Diagram

CLAMP, WIRE

32660-MJ6-710

$3.46

STAY, STARTER MAGNETIC

50326-HP2-670

$2.34

CUSHION, BATTERY

80103-HP2-670

$1.03

FENDER SET, RR. (TYPE2) (WL)

80110-HP2-AC0ZA

$122.79

FENDER SET, RR. (TYPE1) (WL)

80110-HP2-AC0ZB

$500.94

SPLASH GUARD, R. CENTER *NH1* (BLACK)

80121-HP2-670ZA

$67.12

SPLASH GUARD, L. CENTER *NH1* (BLACK)

80122-HP2-670ZA

$67.12

STAY, RR. FENDER

80217-HP2-840

$16.60

SCREW, PAN (6X12)

90106-MAV-000

$2.01

BOLT, FLANGE (6MM)

90116-HP2-670

$2.03

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$0.54

CLIP, WIRE HARNESS

90681-763-A01

$7.86

SCREW, TAPPING (5X12)

93903-25220

$0.84

BAND A, BATTERY

95012-11001

$2.80

BAND B2, BATTERY

95012-13001

$5.04

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.84
