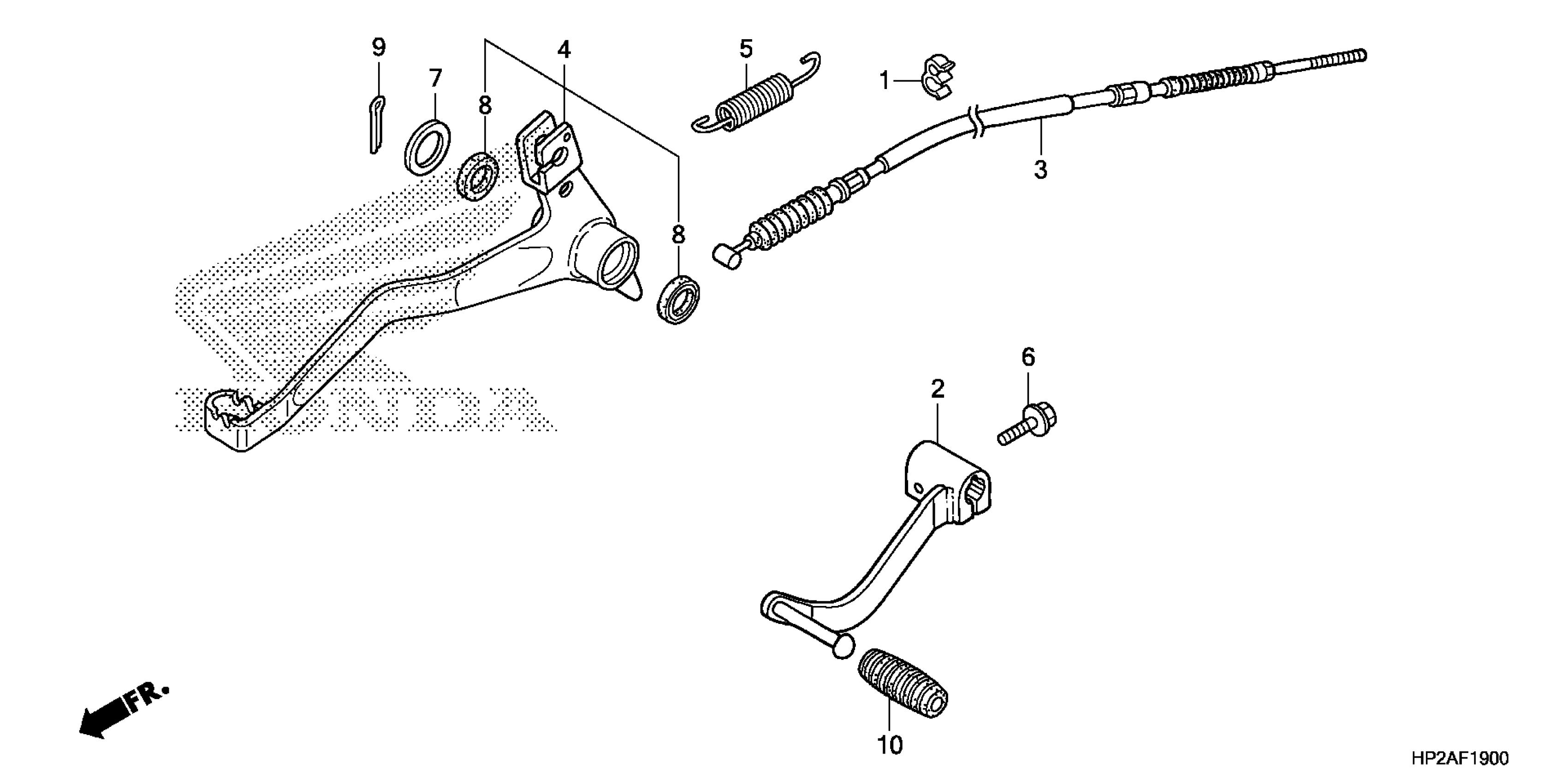

Honda TRX90XAC (22) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE550-N4000001 PEDAL Diagram

#

Description

Price

1

CLAMP, PIPE

11152-KS4-003

$7.13

2

PEDAL, GEARSHIFT (COO) This part replaces 24700-HP2-670.

24700-HP2-305

$41.67

3

CABLE, FOOT BRAKE

43470-HP2-671

$25.72

4

PEDAL, BRAKE

46500-HP2-670

$86.15

5

SPRING, BRAKE PEDAL

46514-KZ9-000

$5.14

6

BOLT, FLANGE (6X20)

90118-968-000

$4.24

7

WASHER (17.5MM)

90512-303-000

$1.77

8

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.69

8

DUST SEAL (17X23X3) (NOK) This part replaces 91206-968-004.

91206-968-003

$3.69

9

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

9

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

9

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

9

PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)

94201-30450

$1.49

10

RUBBER, CHANGE PEDAL

95011-40000

$1.49
