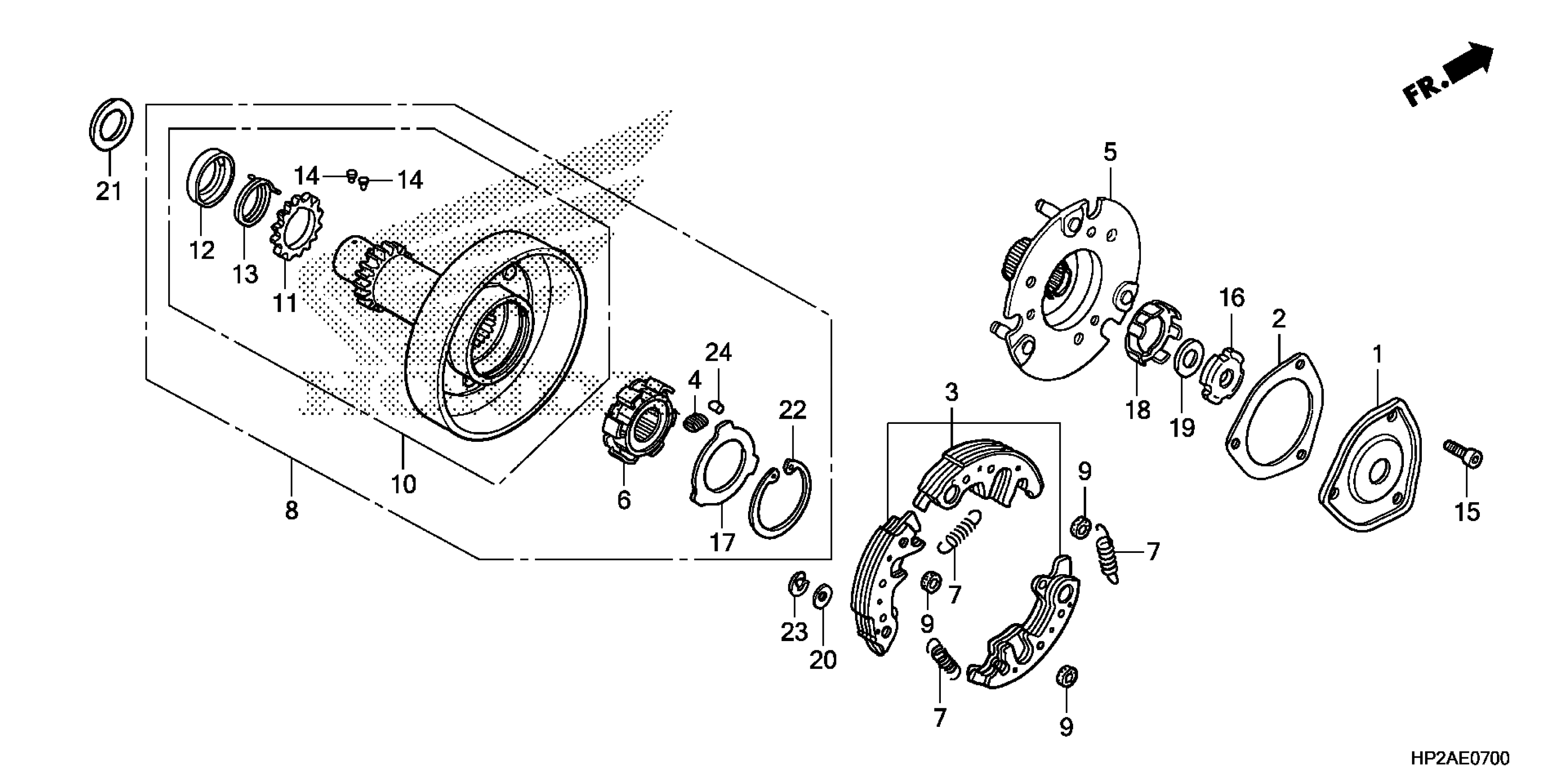

Honda TRX90XAC (22) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE550-N4000001 ONE-WAY CLUTCH Diagram

COVER, OIL FILTER

15431-HF7-010

$25.03

GASKET, OIL FILTER

15439-HF7-000

$7.96

WEIGHT SET, CLUTCH

22535-HF7-305

$90.08

SPRING, ONE-WAY RETAINER

22606-GN5-910

$3.10

PLATE, PRIMARY DRIVE

22610-KVR-C00

$41.72

INNER, ONE-WAY CLUTCH

22630-GB2-000

$39.18

SPRING, PRIMARY CLUTCH

22641-GN5-910

$5.25

CLUTCH OUTER ASSY., PRIMARY

22660-GN5-912

$171.26

RUBBER, CLUTCH DAMPER

22804-GB2-000

$3.88

GEAR, PRIMARY DRIVE (17T/17T)

23120-GN5-913

$101.05

SUB-GEAR (17T)

23122-GN5-910

$25.70

COLLAR, SIDE

23123-GN5-910

$19.23

SPRING, SUB-GEAR

23124-GN5-910

$5.41

PIN (F.C.C.)

23125-GN5-910

$3.72

SET (SOCKET5X10) This part replaces 90089-GT9-000.

90089-GT9-305

$3.08

SET (SOCKET5X10)

90089-GT9-305

$3.08

NUT, LOCK (14MM)

90231-087-010

$3.80

WASHER (30X45X0.8)

90401-GB2-000

$5.26

WASHER, LOCK

90431-GN5-910

$4.02

WASHER B, LOCK

90432-086-000

$4.44

WASHER, THRUST (8MM)

90442-GN5-910

$2.11

WASHER, THRUST (19X28X1.5)

90453-GB2-000

$3.20

CIRCLIP (INNER) (45MM)

90455-GB2-000

$6.43

CIRCLIP (7MM)

90605-166-720

$1.80

ROLLER (5X8)

91101-GB2-000

$3.85
