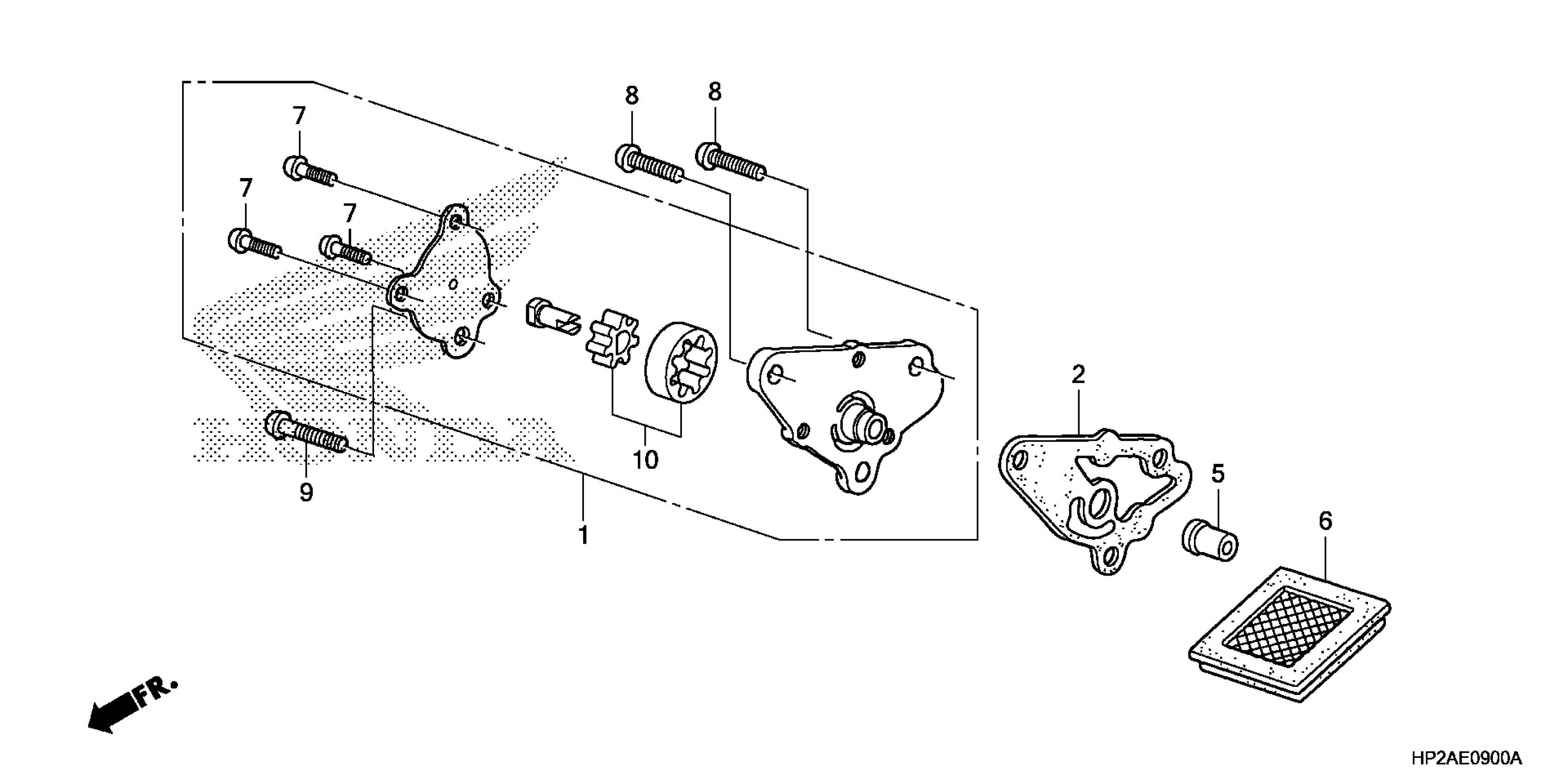

Honda TRX90XAC (22) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE550-N4000001 OIL PUMP Diagram

#

Description

Price

1

PUMP ASSY., OIL

15100-KWB-600

$7.32

2

GASKET, OIL PUMP BODY

15119-178-000

$3.68

5

PIVOT, OIL PUMP

15384-178-000

$5.34

6

SCREEN, OIL FILTER (Honda Code 0070029)

15421-035-010

Unavailable

7

SCREW, PAN (5X10)

93500-05010-0A

Unavailable

8

SCREW, PAN (6X16) SCREW, PAN (6X20)

93500-06016-0A

$1.06

9

SCREW, PAN (6X22) BOLT, FLANGE (6X22)

93500-06022-0A

$1.13

10

ROTOR SET, OIL PUMP

15021-GF6-000

$19.01
